Headlight Cleaner Actuator: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

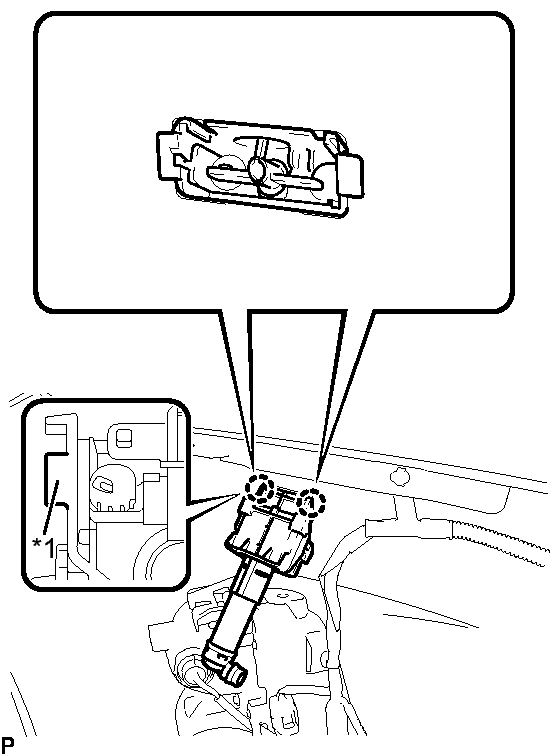

- Pushing the tab and engage the 2 claws to install the headlight washer actuator sub-assembly LH.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

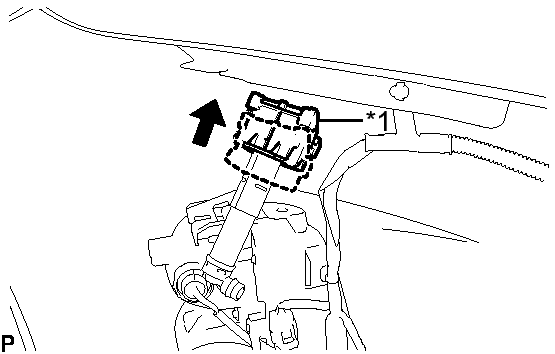

TEXT IN ILLUSTRATION*1 Tab - Push up the No. 1 headlight cleaner clamp.TEXT IN ILLUSTRATION
*1 No. 1 Headlight Cleaner Clamp - Install the No. 3 headlight cleaner clamp.TEXT IN ILLUSTRATION

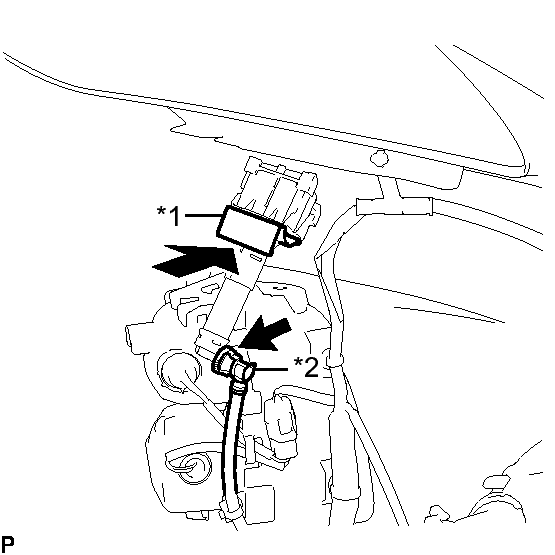

*1 No. 3 Headlight Cleaner Clamp *2 Headlight Cleaner Hose - Connect the headlight cleaner hose.
- Pushing the tab and engage the 2 claws to install the headlight washer actuator sub-assembly LH.
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- INSTALL HEADLIGHT CLEANER WASHER NOZZLE COVER See step 1
- INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION
