System Diagram

WARNING: This page is about a different variant/trim than selected.

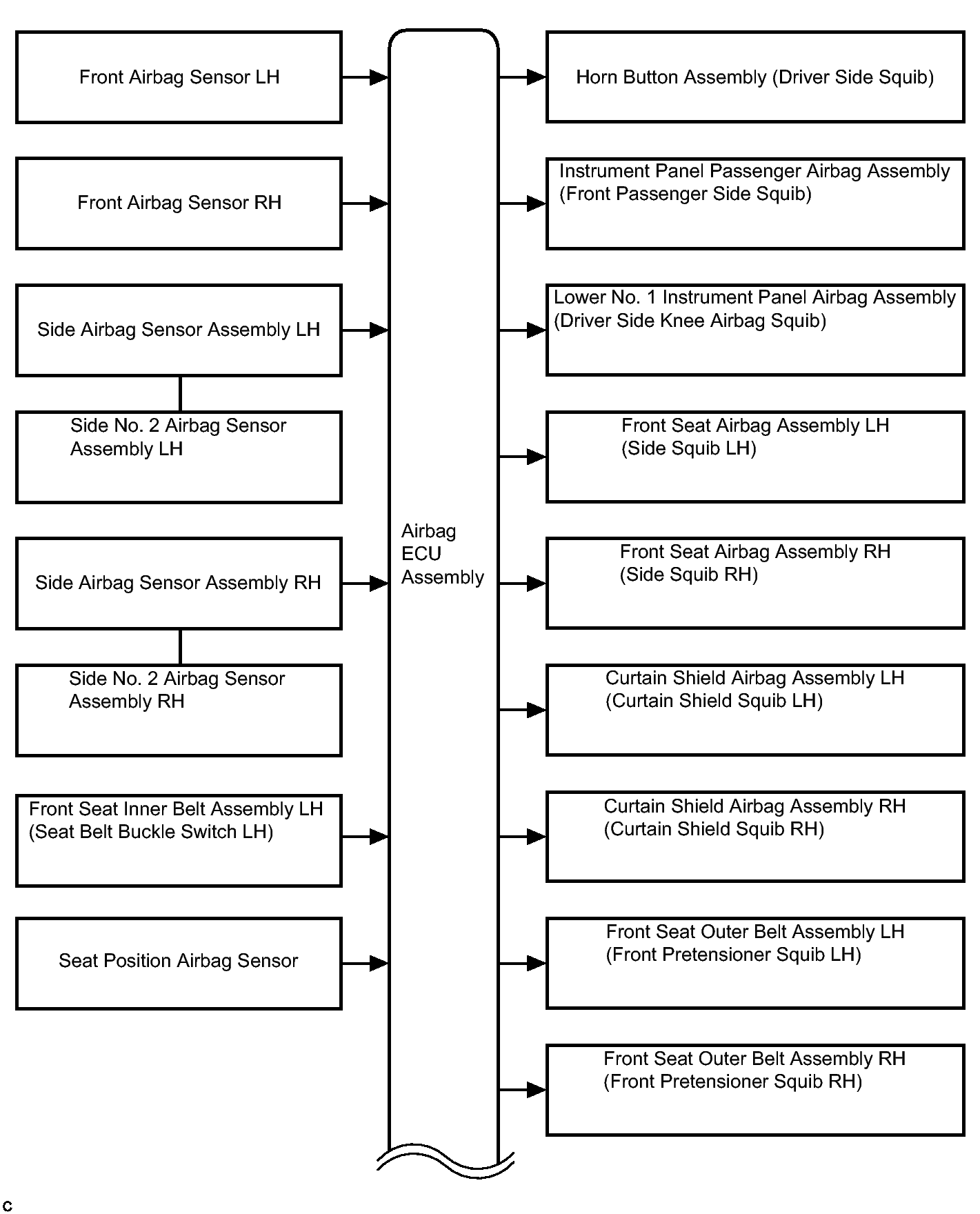

Fig 1: Identifying Airbag System Diagram (1 Of 2)

GTY337738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

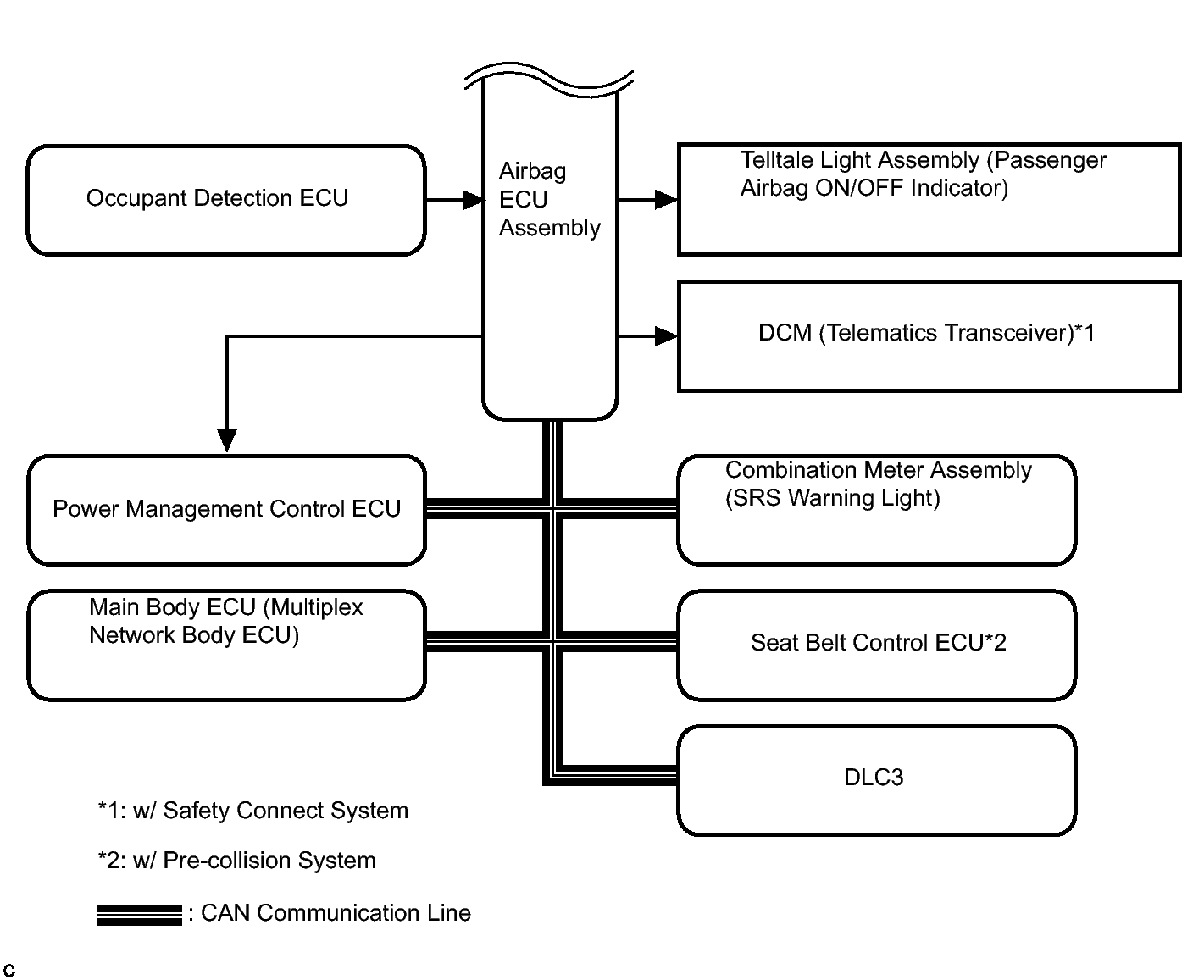

Fig 2: Identifying Airbag System Diagram (2 Of 2)

GTY343082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitting ECU (Transmitter)	Receiving ECU	Signal	Communication Method
Airbag ECU Assembly	Power Management Control ECU	Crash detection signal	CAN
	Main Body ECU (Multiplex Network Body ECU)	Driver seat buckle switch signal
	Combination Meter Assembly	SRS warning light ON demand signal Passenger seat buckle switch signal Passenger seat occupant detection signal Diagnosis signal (DTC)
	Seat Belt Control ECU*	Driver seat buckle switch signal Passenger seat buckle switch signal
Combination Meter Assembly	Airbag ECU Assembly	Vehicle speed signal
Power Management Control ECU	Airbag ECU Assembly	Engine speed signal Accelerator opening angle information Accelerator opening angle signal Shift position signal Test mode signal Stop signal

*: w/ Pre-collision system
