Steering Column Assembly: Inspection: Inspection

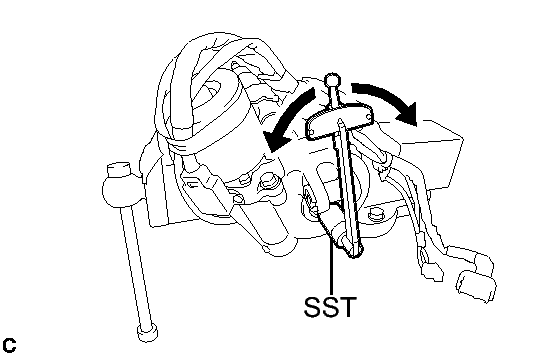

• SST: 09616-00011

Preload (for Brush Type Motor)

Torque: 1.1 N*m (11 kgf*cm, 10 in.*lbf)

or less

Preload (for Brushless Type Motor)

Torque: 0.9 to 1.5 N*m (10 to 15 kgf*cm, 8 to 12 in.*lbf)

If the preload is not as specified, replace the power steering motor assembly or electric power steering column sub-assembly with a new one.

1. Check that the 2 bushings are securely installed to the steering column assembly.

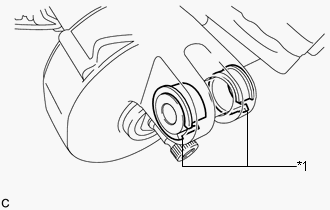

   Fig 2: Inspecting Steering Column Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Bushing

   If the 2 bushings are installed improperly, replace the electric power steering column sub-assembly with a new one.

2. Check the 2 bushings for deformation and damage.

   If the bushings are deformed or damaged, replace the electric power steering column sub-assembly with a new one.

1. Check that the 2 capsules are securely installed to the steering column assembly as shown in the illustration.

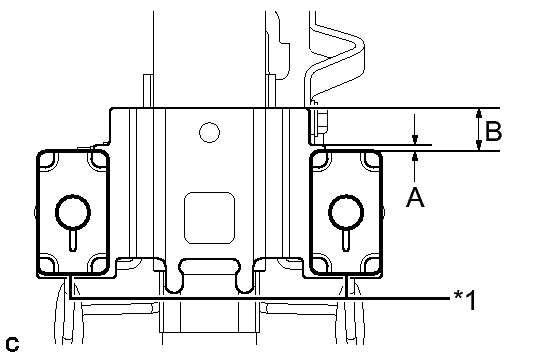

   Fig 3: Identifying Capsules

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Dimension

   A	B
   2 mm (0.0787 in.)	17 mm (0.669 in.)

   TEXT IN ILLUSTRATION



   *1

   Capsule

   If the capsules are not positioned as specified, replace the electric power steering column sub-assembly with a new one.

2. Check the 2 capsules for deformation and damage.

   If either of the capsules is deformed, loose, missing or damaged, replace the electric power steering column sub-assembly with a new one.
