Steering Pad Switch: Removal: Removal

REMOVE STEERING PAD
HINT:

Refer to the instructions for Removal of the steering pad. Refer to REMOVAL .
REMOVE STEERING PAD SWITCH ASSEMBLY
1. Remove the 2 screws.

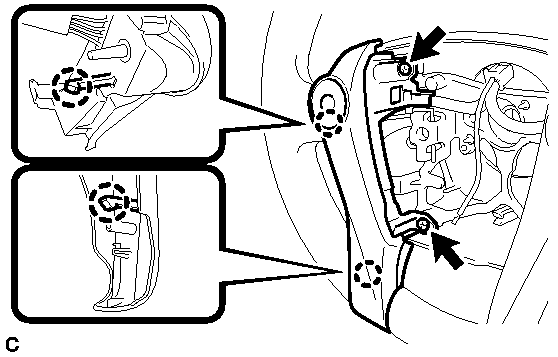

  Fig 1: Identifying Steering Pad Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws to remove the steering pad switch assembly (RH side) from the steering wheel sub-assembly.
3. Remove the 2 screws.

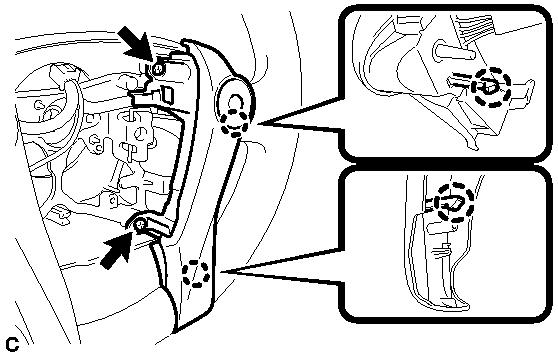

  Fig 2: Identifying Steering Pad Switch Assembly Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the 2 claws to remove the steering pad switch assembly (LH side) from the steering wheel sub-assembly.
REMOVE STEERING PAD SWITCH LH
1. Remove the clamp.

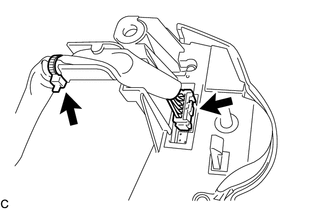

  Fig 3: Identifying Clamp & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector to remove the steering pad switch LH from the steering pad switch RH.
