DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module; DTC U0293: Lost Communication with HV ECU: Wiring Diagram

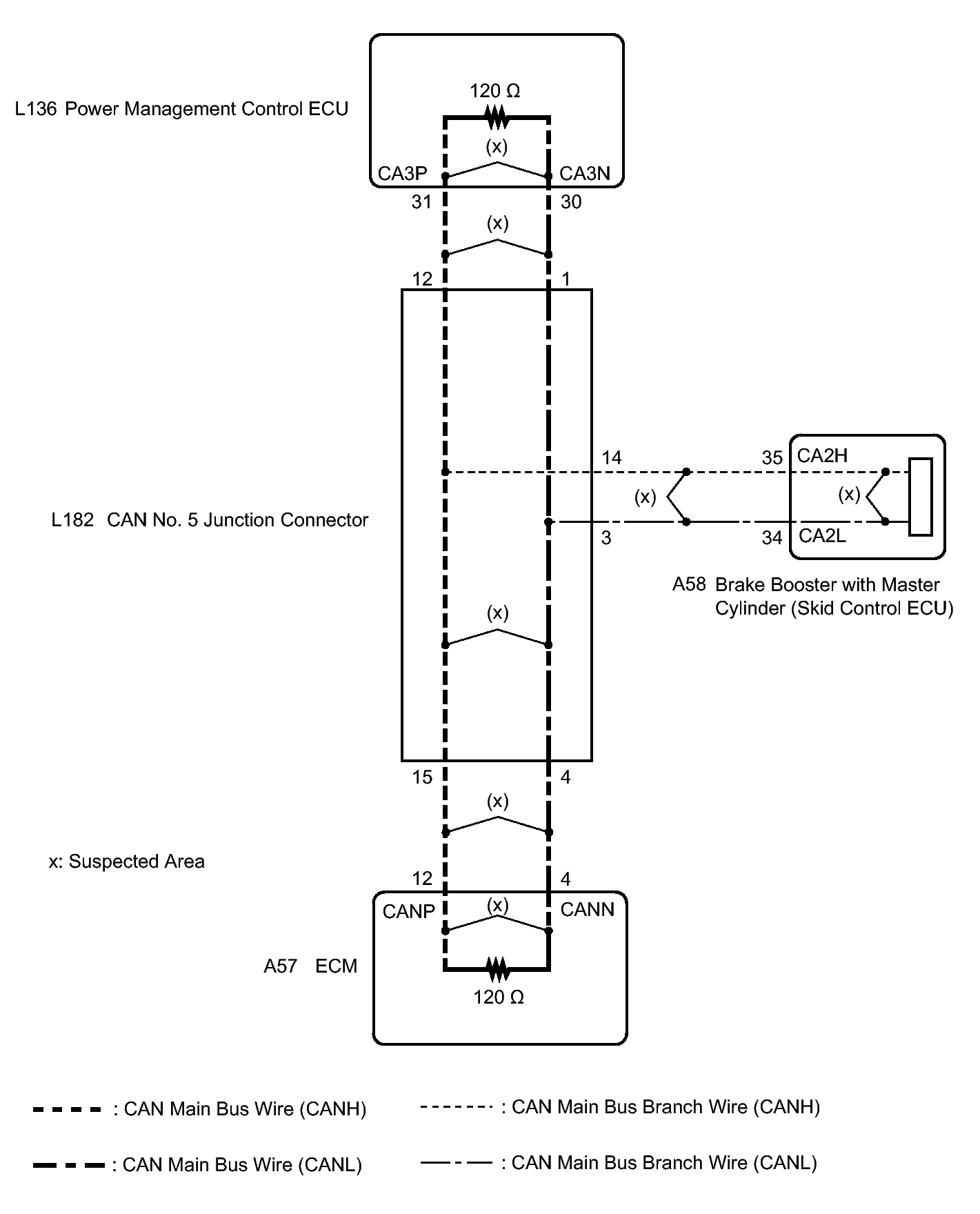

Fig 1: Identifying Brake System CAN Communication Line Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
