DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

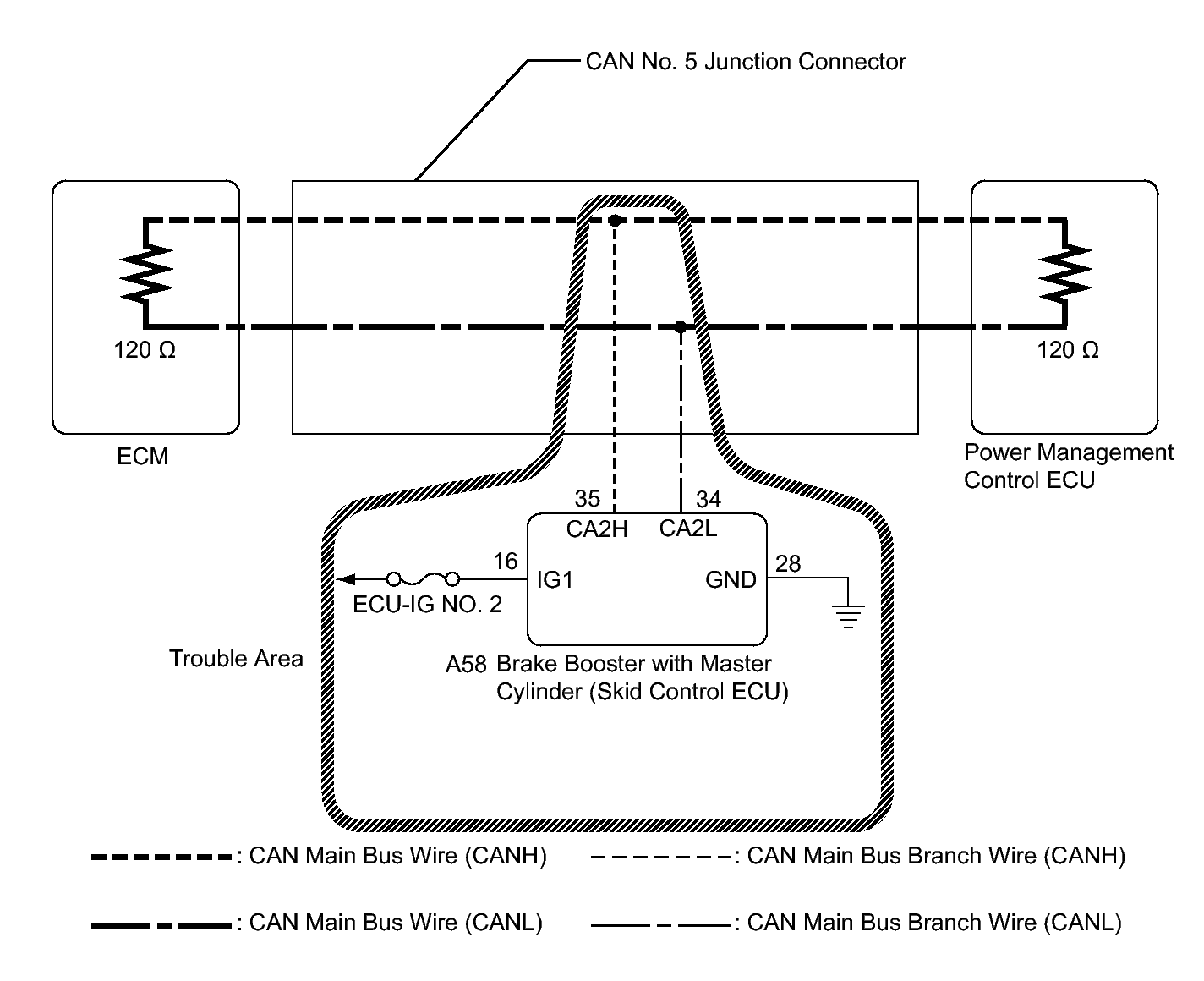

Fig 1: Identifying Skid Control ECU CAN Communication Line Circuit Diagram
GTY324448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
