DTC U1002: Lost Communication with Gateway Module (Power Management1): Wiring Diagram

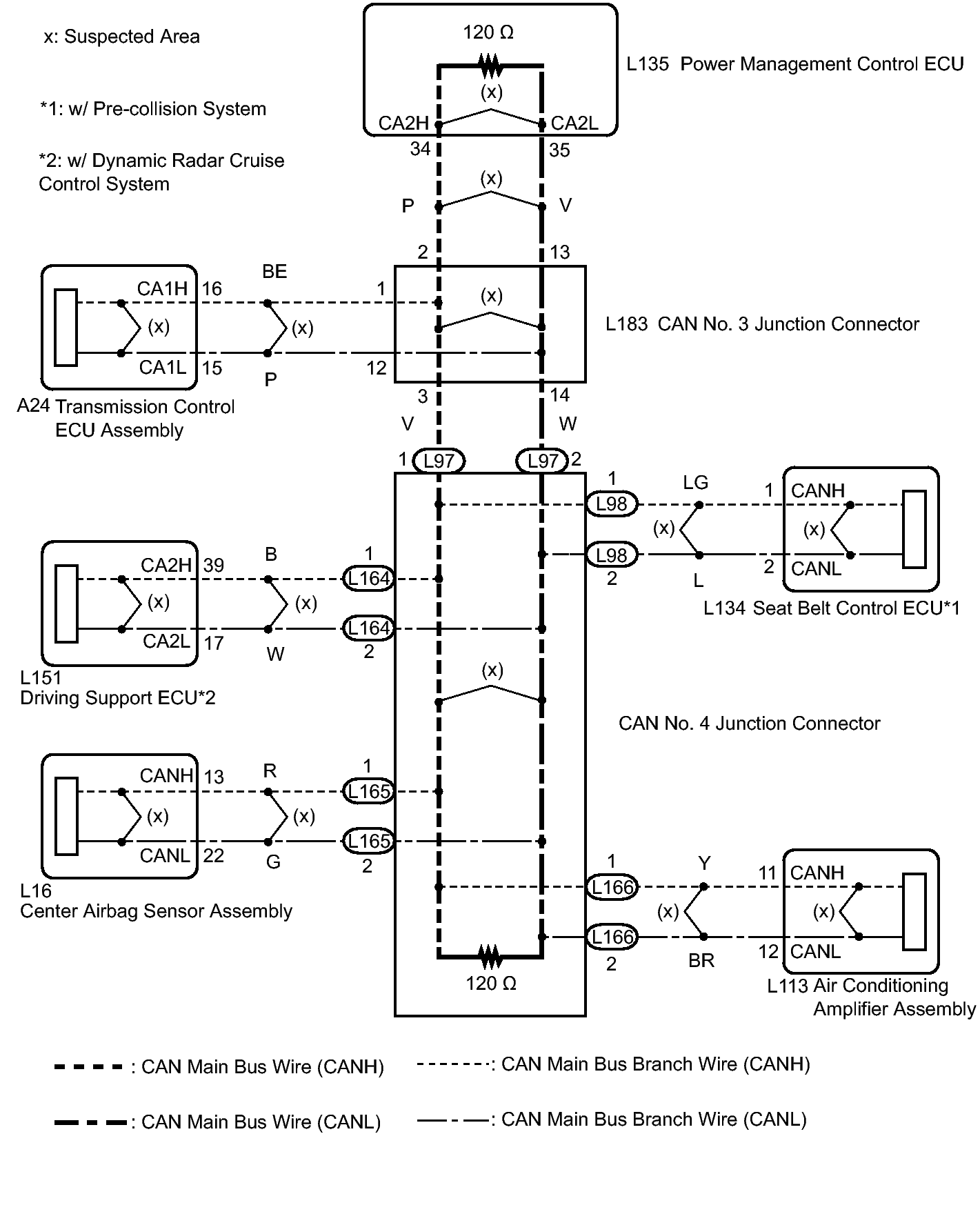

Fig 1: Identifying CAN Communication Line Circuit Diagram
GTY334515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
