Combination Meter ECU Communication Stop Mode: Procedure

CHECK FOR OPEN IN CAN BUS WIRES (COMBINATION METER ASSEMBLY BRANCH WIRE)

Disconnect the combination meter assembly connector.

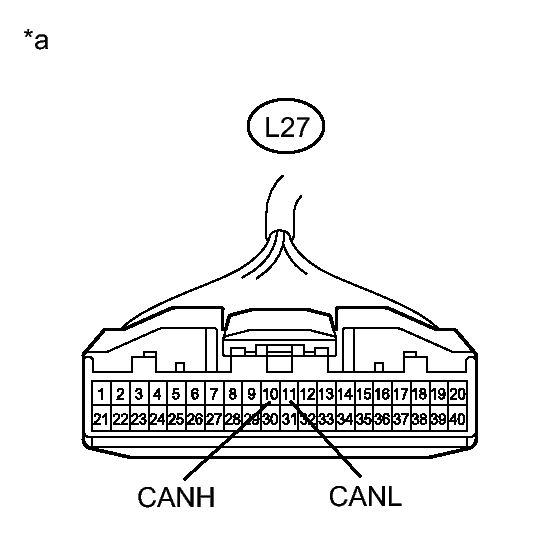

Fig 1: Checking L27 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Combination Meter Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
L27-10 (CANH) - L27-11 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

NG → REPAIR OR REPLACE CAN MAIN BUS BRANCH WIRE OR CONNECTOR (COMBINATION METER ASSEMBLY)

OK: Go to next step

CHECK HARNESS AND CONNECTOR (GROUND TERMINAL)

Measure the resistance according to the value(s) in the table below.

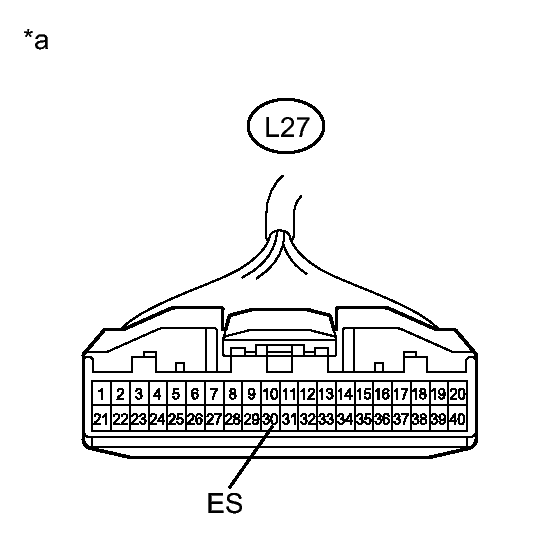

Fig 2: Checking L27 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
L27-30 (ES) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Combination Meter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)

OK: Go to next step

CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)

Measure the voltage according to the value(s) in the table below.

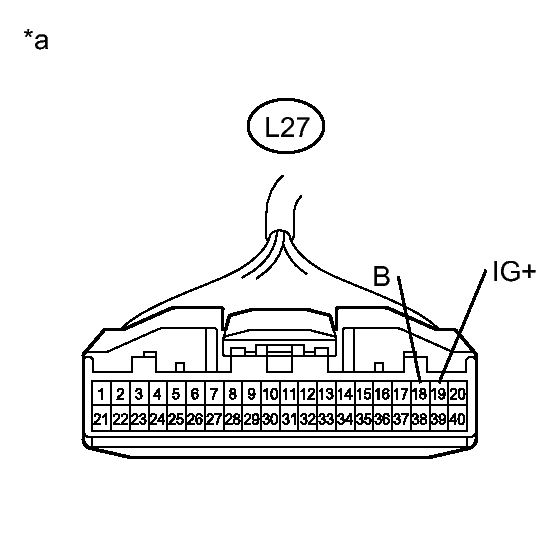

Fig 3: Checking L27 Connector Terminals

Standard Voltage

Tester Connection	Condition	Specified Condition
L27-19 (IG+) - Body ground	Power switch on (IG)	11 to 14 V
L27-18 (B) - Body ground	Power switch off	11 to 14 V

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Combination Meter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK → See step 4

REPLACE NO. 3 METER CIRCUIT PLATE (COMBINATION METER ASSEMBLY). Refer to REMOVAL
