Plugin Charge Control ECU Communication Stop Mode: Wiring Diagram

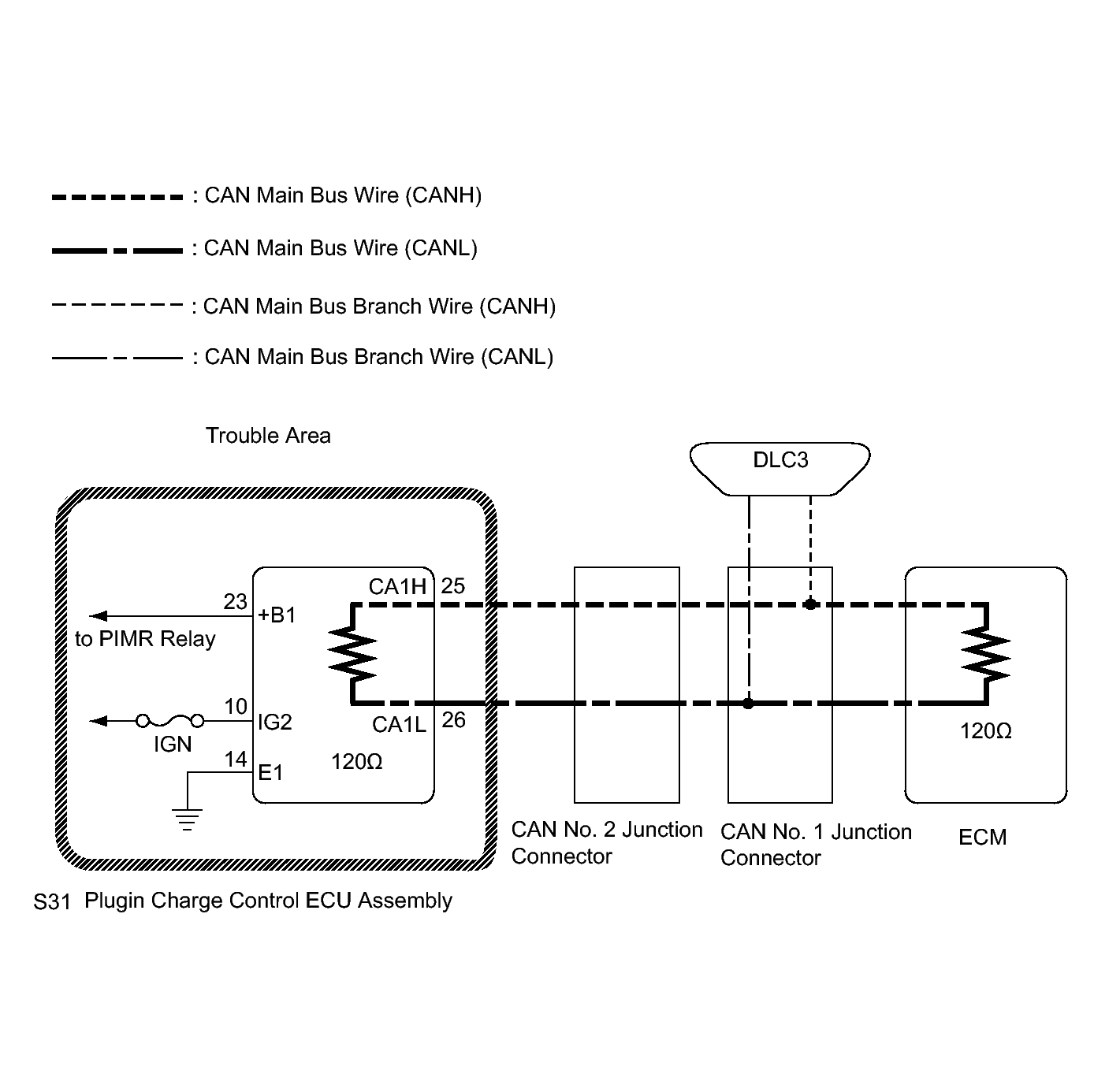

Fig 1: Identifying Plugin Charge Control ECU CAN Communication Line Circuit Diagram
