Steering Angle Sensor Communication Stop Mode: Wiring Diagram

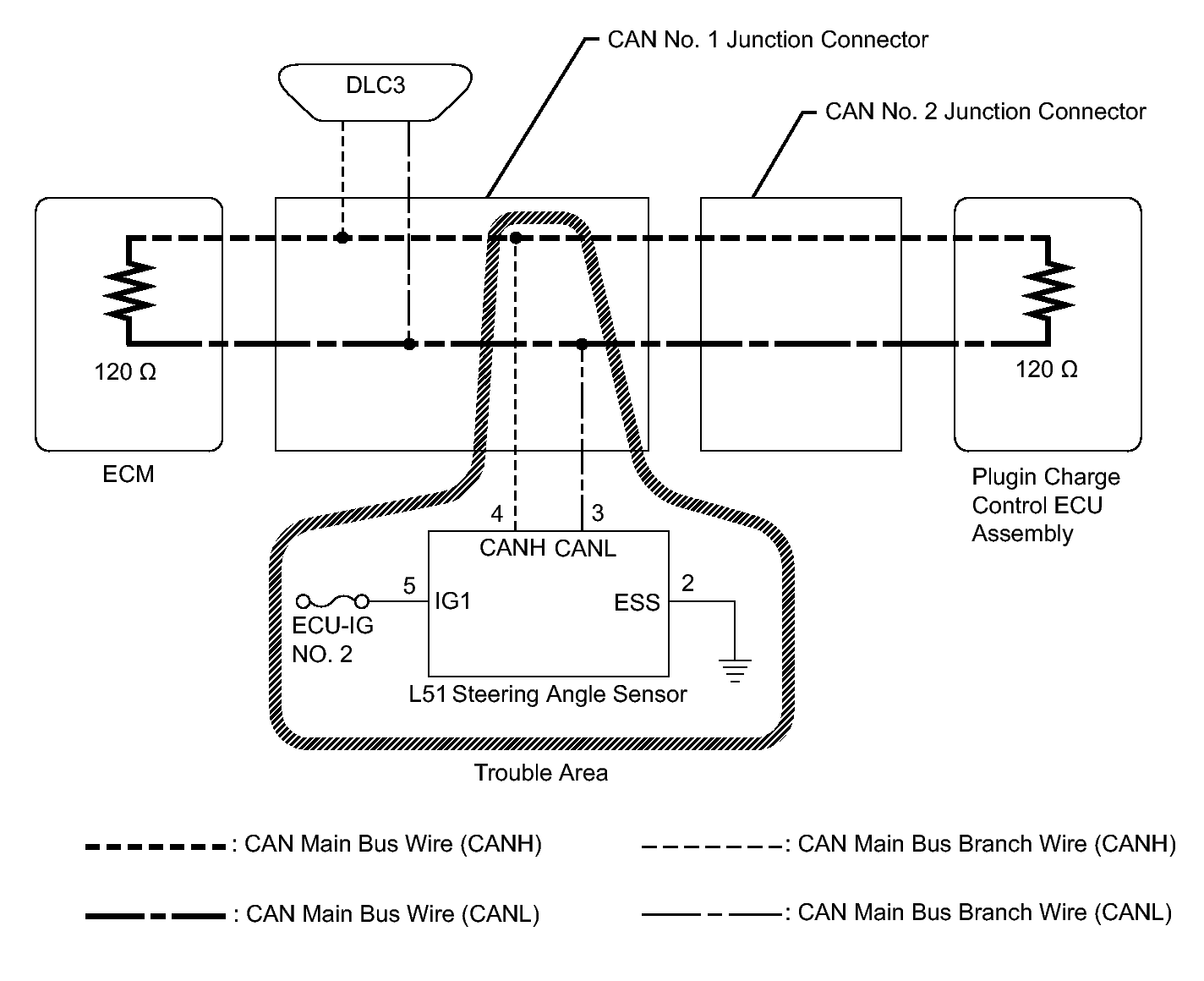

Fig 1: Identifying Power Steering Angle Sensor ECU CAN Communication Line Circuit Diagram
GTY337803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
