Millimeter Wave Radar Sensor Power Source Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

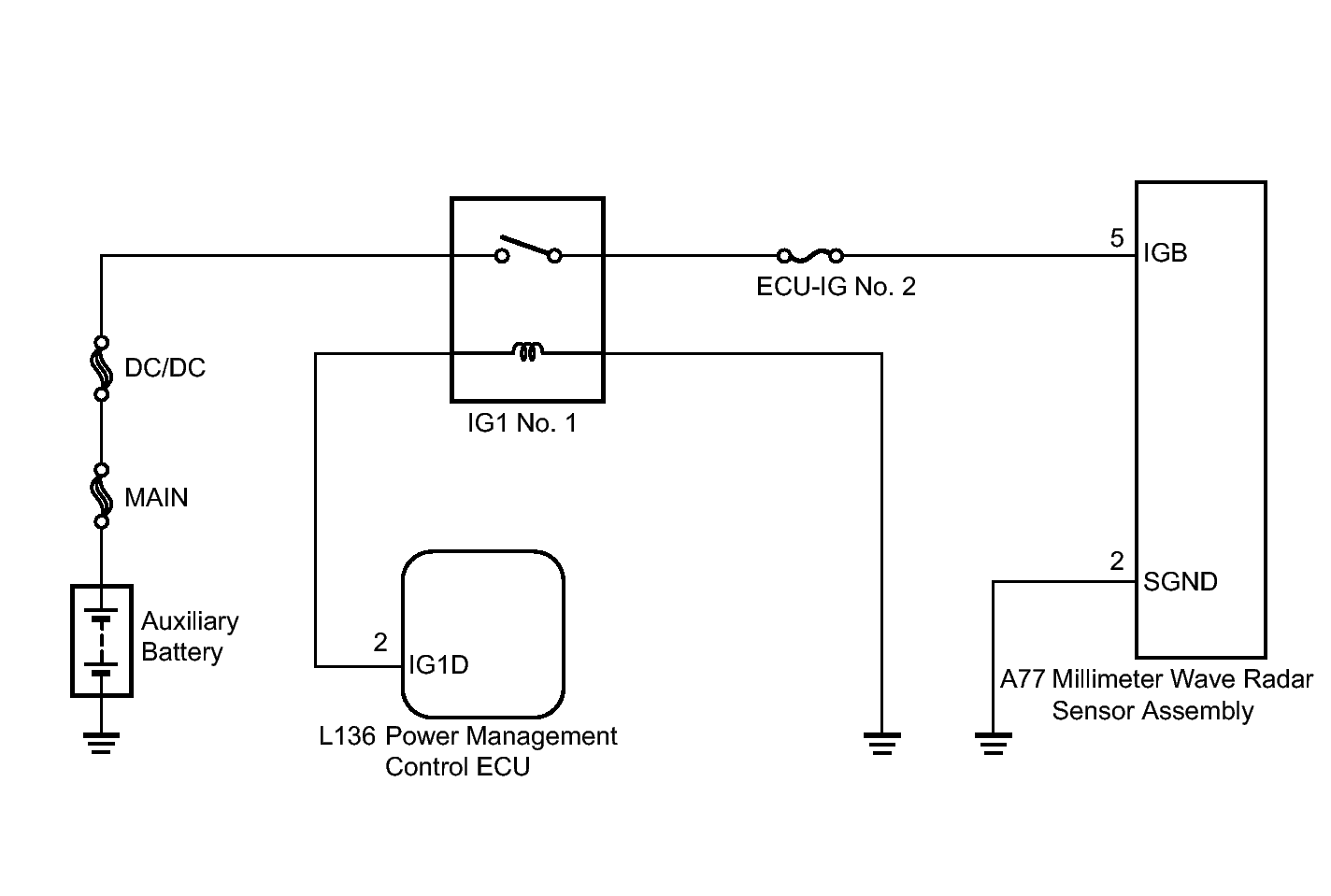

Millimeter Wave Radar Sensor Power Source Circuit: Wiring Diagram
Fig 1: Identifying Millimeter Wave Radar Sensor Power Source Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
