P Position Signal Circuit: Wiring Diagram

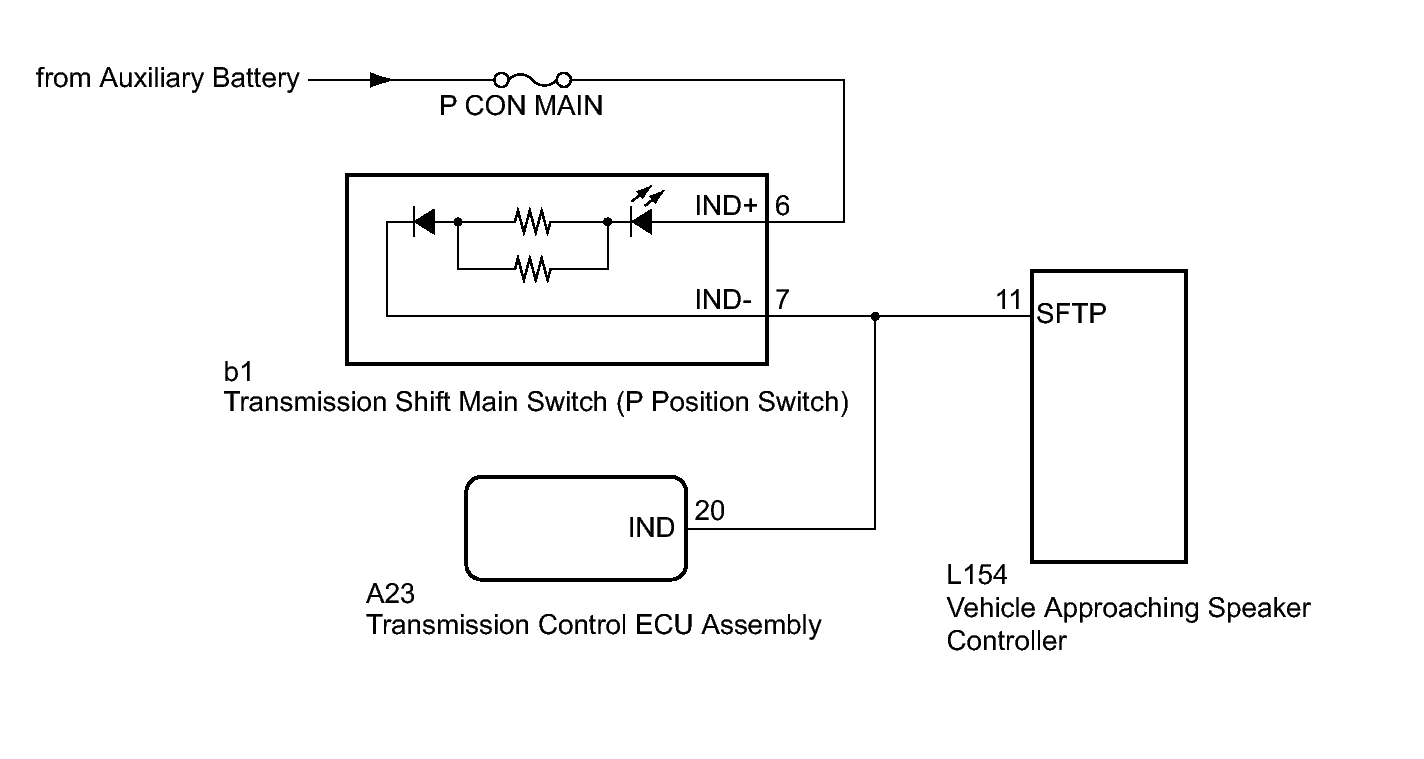

Fig 1: Identifying P Position Signal Circuit Diagram
GTY333934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
