Stop Light Switch Circuit: Wiring Diagram

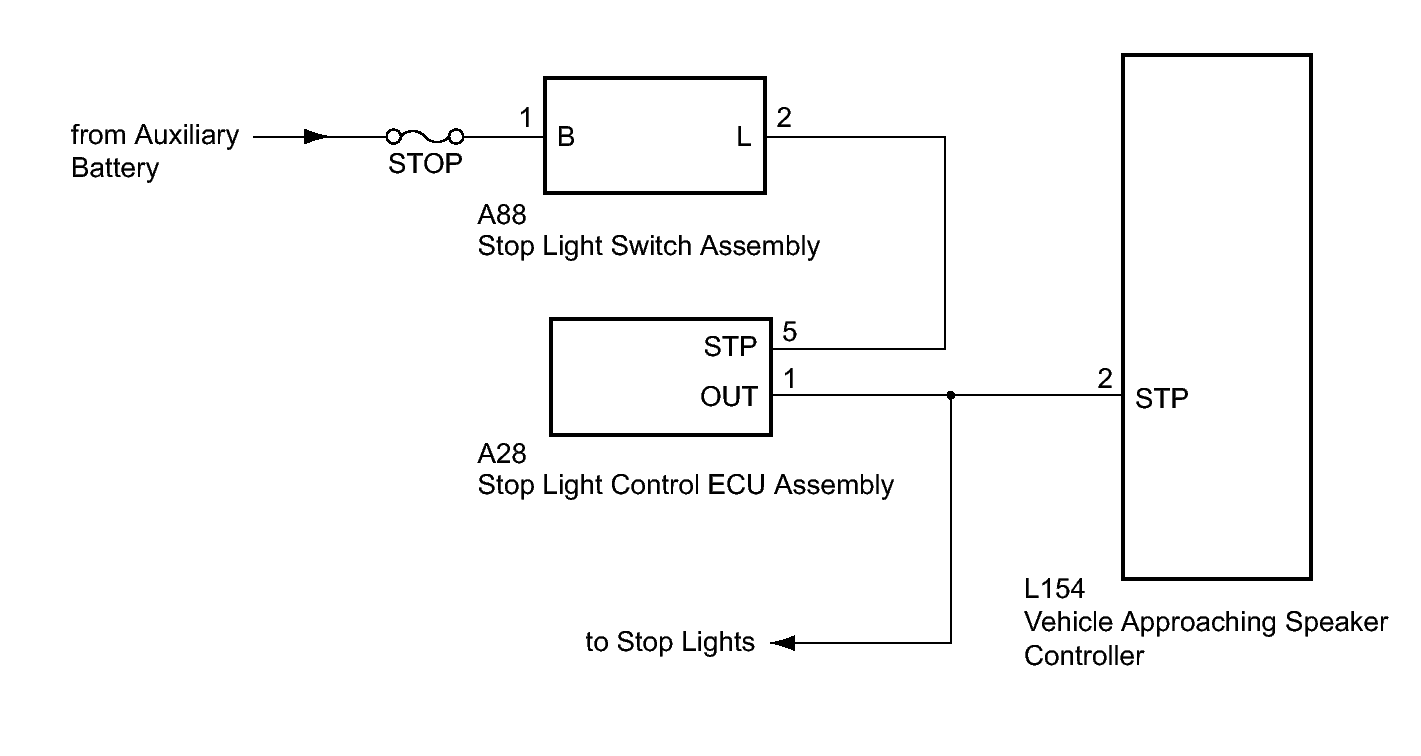

Fig 1: Identifying Stop Light Switch Circuit Diagram
GTY339575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
