Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

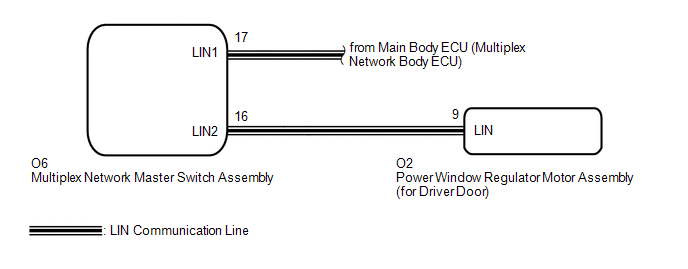

Fig 1: Power Window LIN Communication Line Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
