Headlight Cleaner Control Relay: Installation: Installation

INSTALL HEADLIGHT CLEANER CONTROL RELAY
1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.

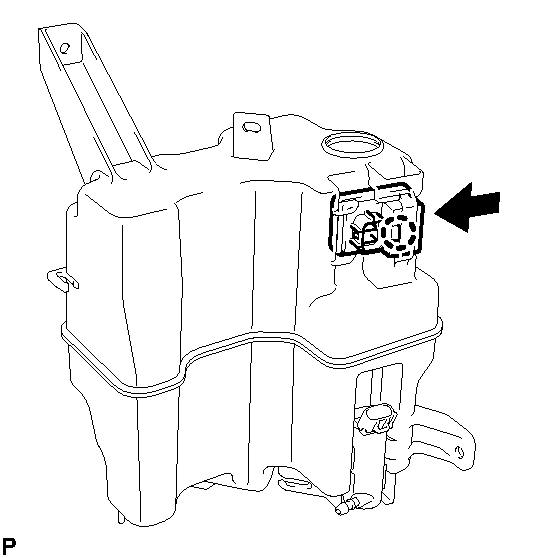

  Fig 1: Locating Headlight Cleaner Control Relay Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the washer jar assembly with the bolt.

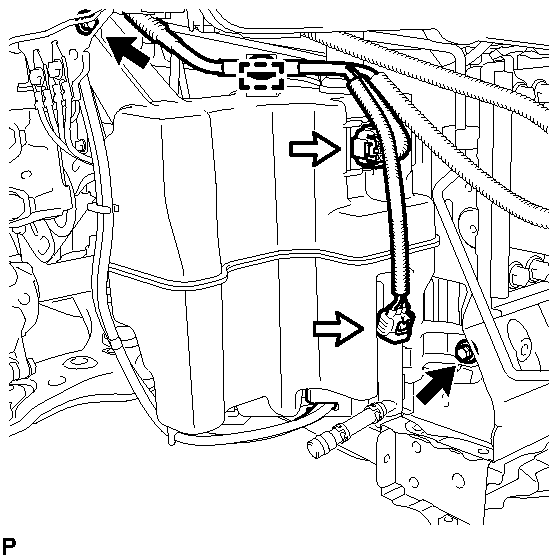

  Fig 2: Locating Washer Jar Connectors And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
3. Engage the clamp.
4. Connect the 2 connectors.
5. Connect the 2 washer hoses.
6. Engage the hose clamp.
7. Install the 2 bolts.

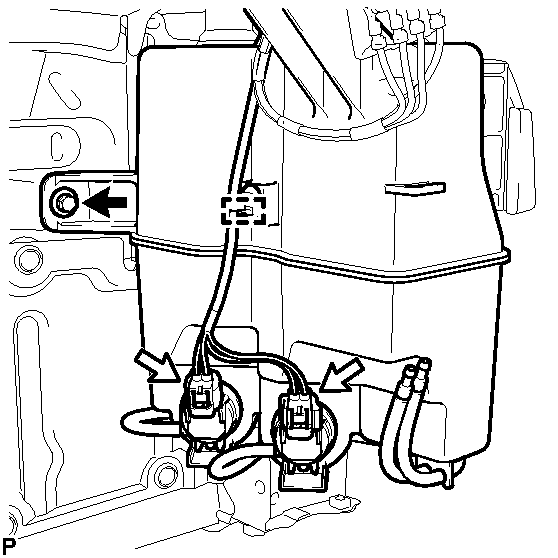

  Fig 3: Locating Washer Jar Connectors, Clamp And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
8. Engage the clamp.
9. Connect the 2 connectors.
10. Connect the washer jar cap to the washer jar assembly.
11. Engage the clip.
INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION
