All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

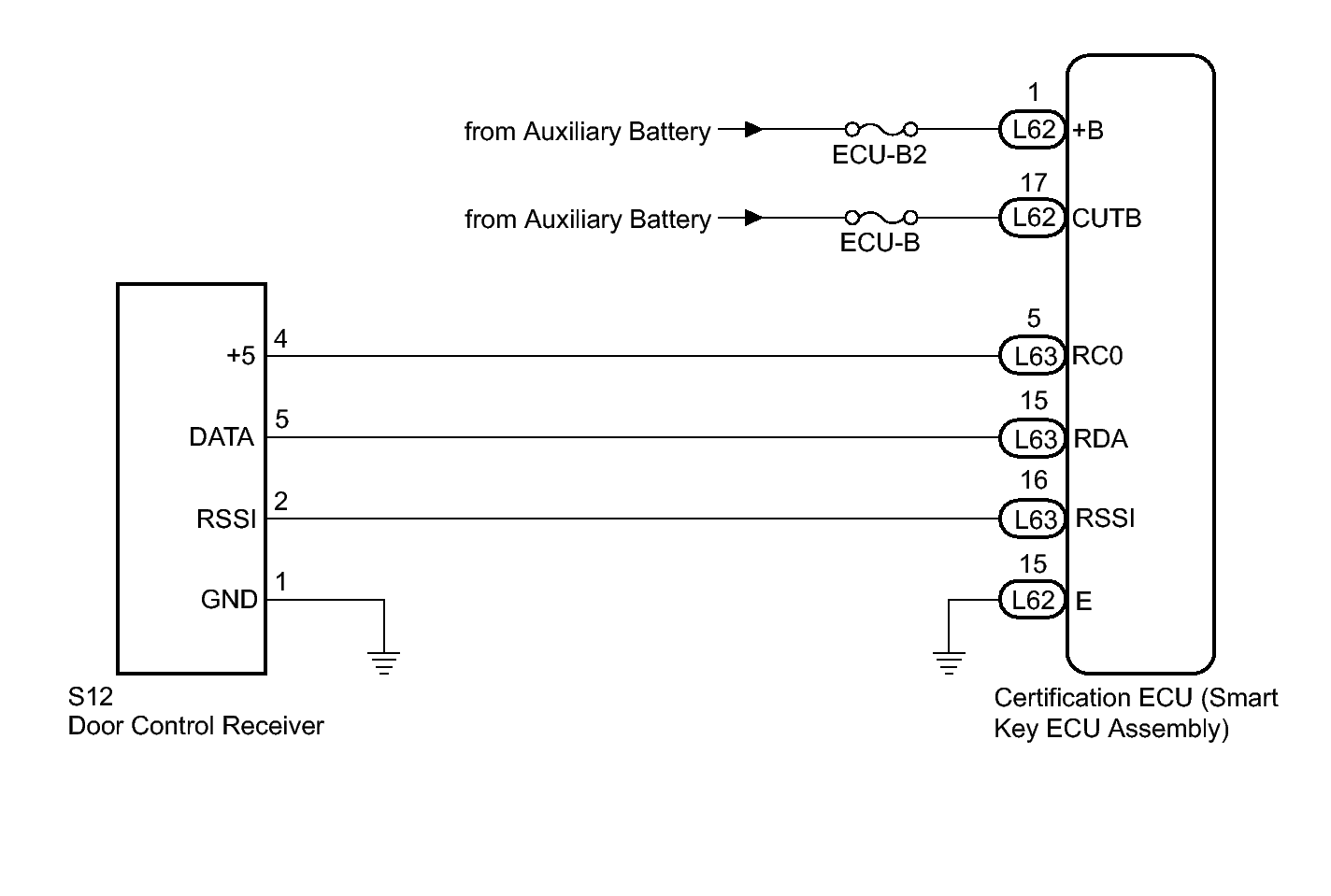

Fig 1: Identifying Door Control Receiver Circuit Diagram
GTY336642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
