Back Door Entry Lock Function does not Operate: Wiring Diagram

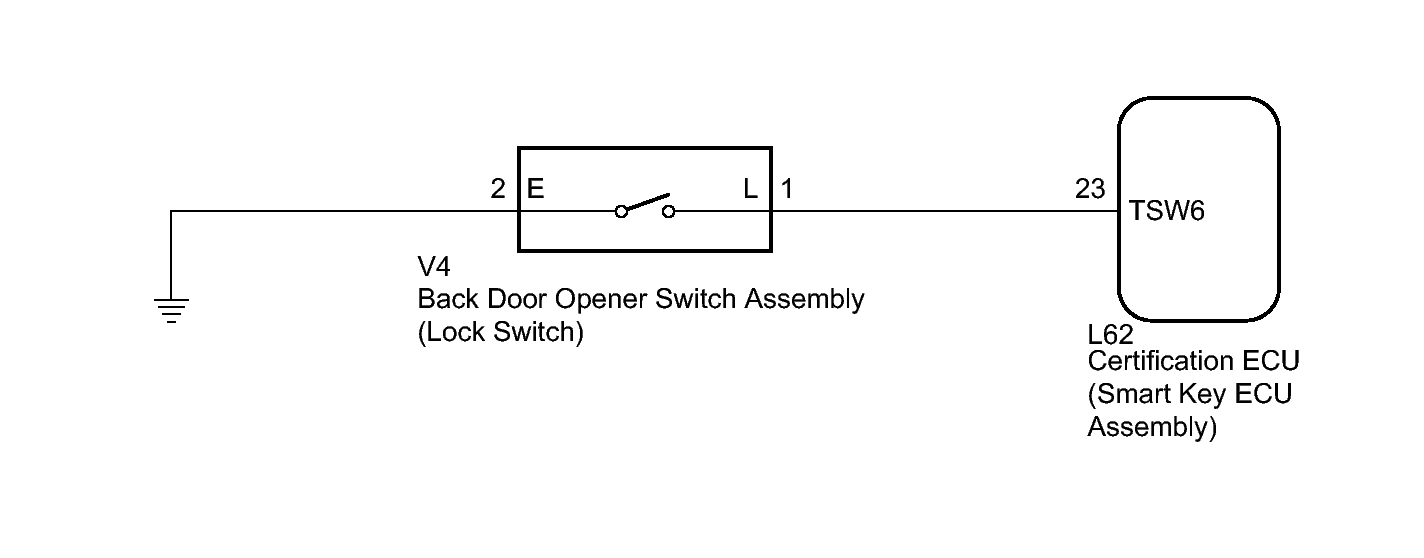

Fig 1: Back Door Entry Lock Function Wiring Diagram
GTY218238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
