Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

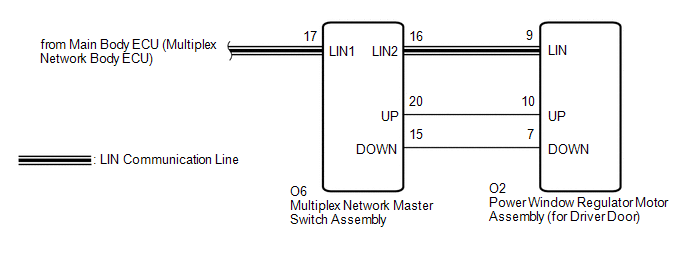

Fig 1: Identifying Driver Side Power Window Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
