DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

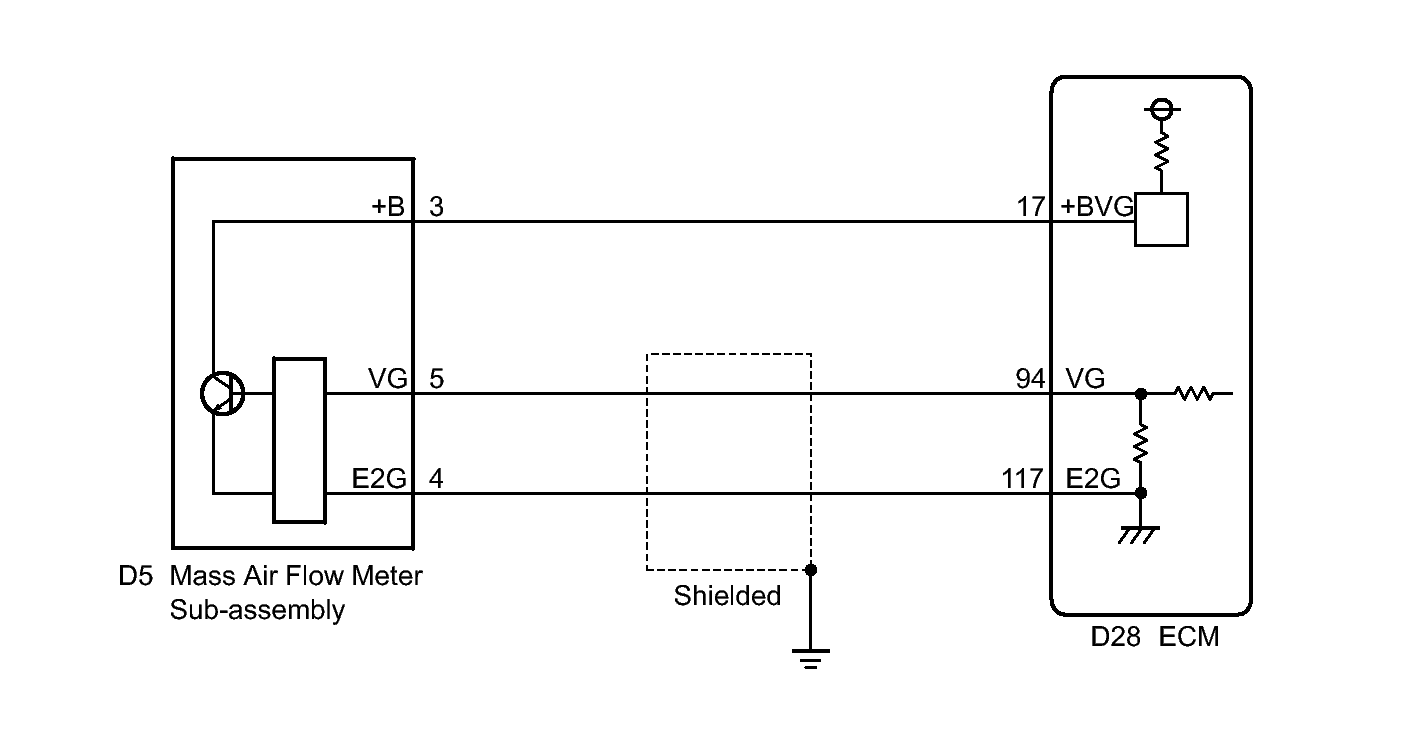

Fig 1: Identifying Mass Air Flow Meter Circuit Diagram
GTY324542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
