ECM Power Source Circuit: Procedure

  1. CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)
    1. Disconnect the ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      D28-104 (E1) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. INSPECT ECM (IGSW VOLTAGE)
    1. Disconnect the ECM connector.

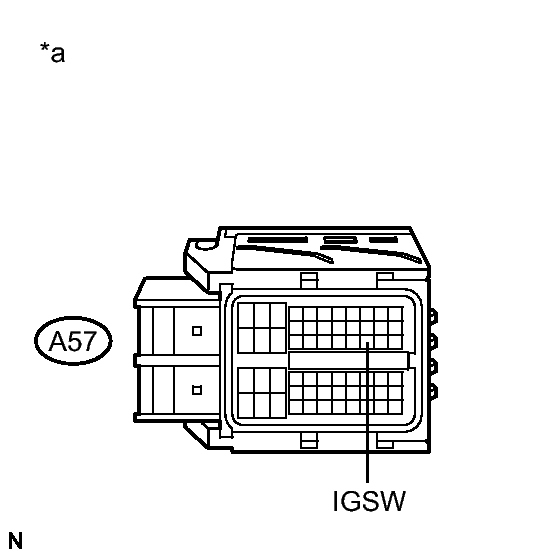

      Fig 1: Inspecting ECM (IGSW Voltage)
      GTY343347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A57-28 (IGSW) - Body ground Power switch on (IG) 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to ECM)

    NG → See step   6

    OK: Go to next step

  3. INSPECT NO. 2 INTEGRATION RELAY (EFI MAIN RELAY)
    1. Inspect the No. 2 integration relay (EFI MAIN relay). Refer to INSPECTION .

    NG → See step   11

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (EFI MAIN RELAY) - ECM)
    1. Remove the No. 2 integration relay (EFI MAIN relay) from the engine room relay block and junction block assembly.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1B-4 - A57-1 (+B2) Always Below 1 Ω
      1B-4 - A57-2 (+B) Always Below 1 Ω
      1B-2 - A57-6 (MREL) Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (EFI MAIN RELAY) - BODY GROUND)
    1. Remove the No. 2 integration relay (EFI MAIN relay) from the engine room relay block and junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1B-3 - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   13

  6. INSPECT NO. 2 INTEGRATION RELAY (IG2 RELAY)
    1. Inspect the No. 2 integration relay (IG2 relay). Refer to INSPECTION .

    NG → See step   12

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (IG2 RELAY) - ECM)
    1. Disconnect the ECM connector.
    2. Remove the No. 2 integration relay (IG2 relay) from the engine room relay block and junction block assembly.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1A-4 - A57-28 (IGSW) Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (IG2 RELAY) - AUXILIARY BATTERY)
    1. Remove the No. 2 integration relay (IG2 relay) from the engine room relay block and junction block assembly.
    2. Disconnect the negative (-) auxiliary battery terminal.
    3. Disconnect the positive (+) auxiliary battery terminal.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1C-1 - Positive (+) auxiliary battery terminal Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (NO. 2 INTEGRATION RELAY (IG2 RELAY) - BODY GROUND)
    1. Remove the No. 2 integration relay (IG2 relay) from the engine room relay block and junction block assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1A-3 - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - NO. 2 INTEGRATION RELAY)
    1. Remove the No. 2 integration relay (IG2 relay) from the engine room relay block and junction block assembly.
    2. Disconnect the power management control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A86-2 (IG2D) - 1A-2 Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   14

  11. REPLACE NO. 2 INTEGRATION RELAY (EFI MAIN RELAY). Refer to  REMOVAL
  12. REPLACE NO. 2 INTEGRATION RELAY (IG2 RELAY). Refer to  REMOVAL
  13. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
  14. CHECK SMART KEY SYSTEM (FOR START FUNCTION). Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
