System Diagram

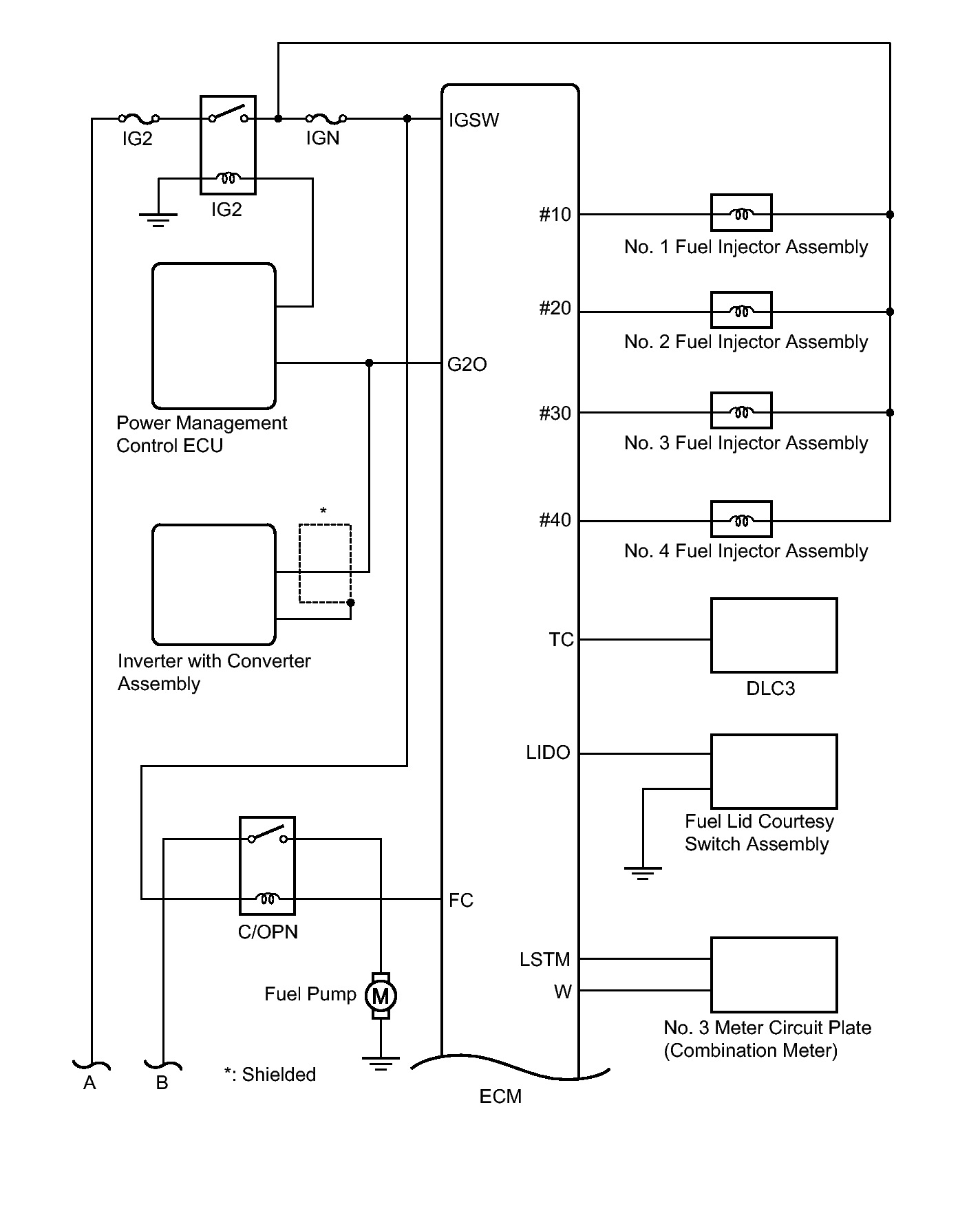

Fig 1: Identifying SFI System Circuit Diagram (1 Of 4)
GTY331025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

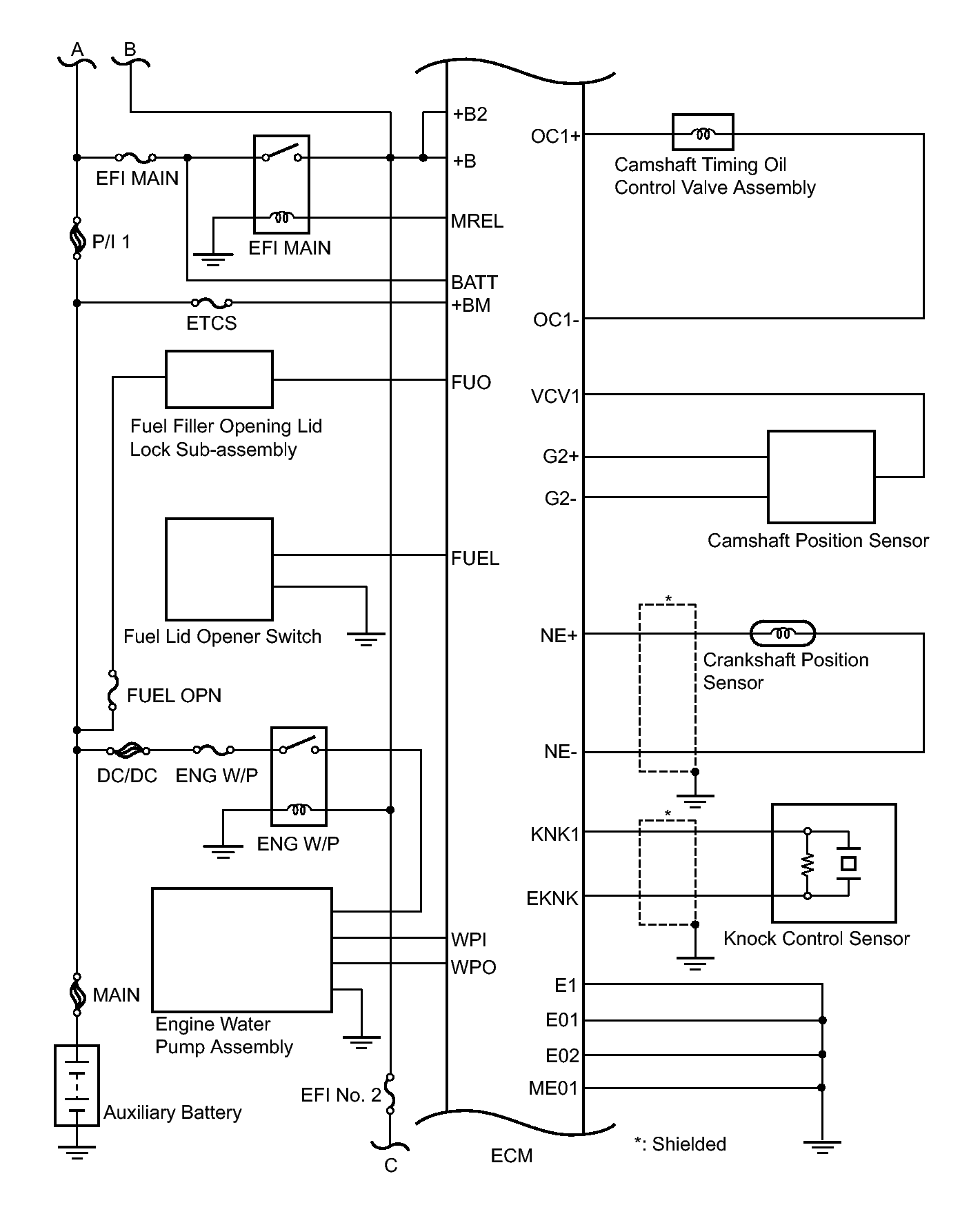

Fig 2: Identifying SFI System Circuit Diagram (2 Of 4)
GTY325957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

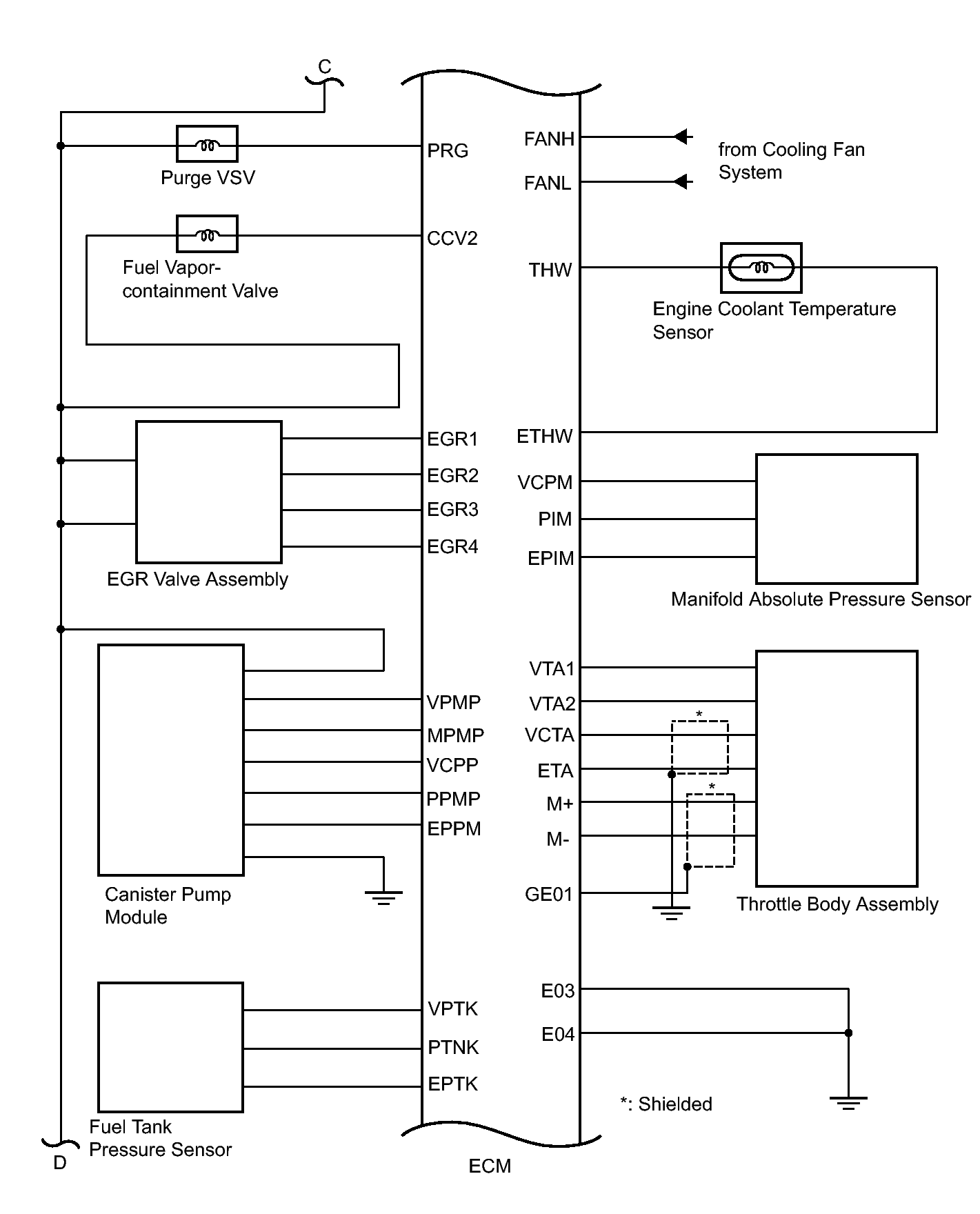

Fig 3: Identifying SFI System Circuit Diagram (3 Of 4)
GTY334023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

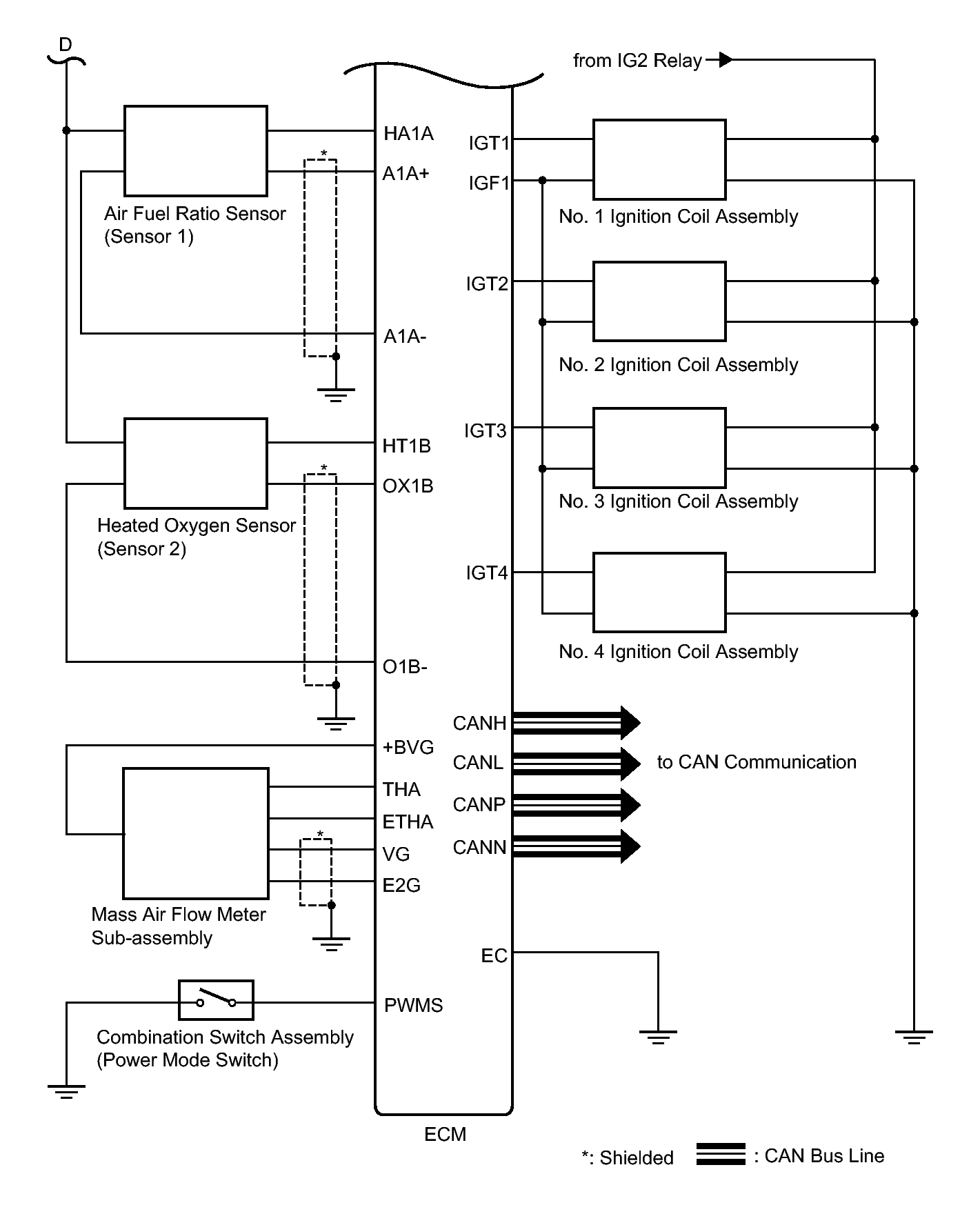

Fig 4: Identifying SFI System Circuit Diagram (4 Of 4)
GTY326961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
