INSPECT HEADLIGHT CLEANER SWITCH ASSEMBLY

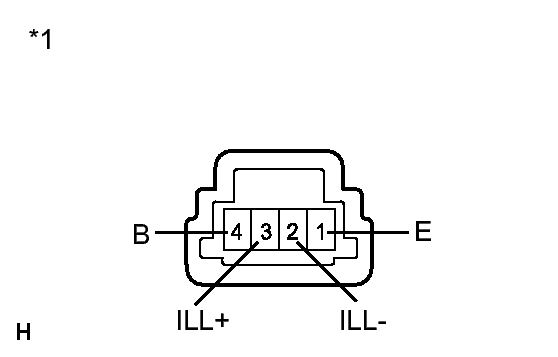

Fig 1: Identifying Headlight Cleaner Switch Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
1 (E) - 4 (B)	Headlight cleaner switch on	Below 1 Ω
1 (E) - 4 (B)	Headlight cleaner switch off	10 kΩ or higher

Connect a positive (+) lead from the battery to terminal 3 (ILL+) and a negative (-) lead to terminal 2 (ILL-).

Check that the headlight cleaner switch assembly illumination comes on.

The headlight cleaner switch assembly illumination comes on.

TEXT IN ILLUSTRATION

*1	Component without harness connected (Headlight Cleaner Switch Assembly)

If the result is not as specified, replace the headlight cleaner switch assembly.
