Personal Light: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL MAP LIGHT BULB
    1. Install the 2 map light bulbs to the 2 map light sockets.
    2. Turn the 2 map light bulbs and 2 map light sockets in the direction indicated by the arrows in the illustration and install them as a unit.
      Fig 1: Identifying Map Light Bulbs And Map Light Sockets
      GTY213463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Connect the connector.
    2. Engage the 2 guides and 4 clips, and install the map light assembly.
      Fig 2: Identifying Guides, Clips And Map Light Assembly
      GTY213347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Connect the connector.
    2. Engage the 2 guides and 4 clips, and install the map light assembly.

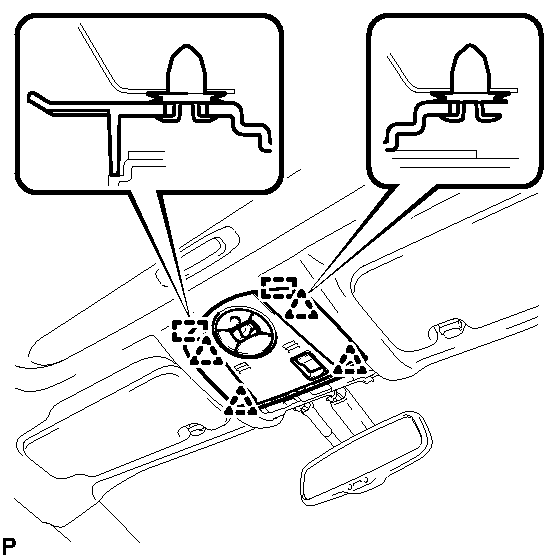

      Fig 3: Identifying Guides, Clips And Map Light Assembly
      GTY232150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ROOF TOP MOULDING (w/o Lane Keeping Assist System)  . Refer to INSTALLATION - Step 14
  5. INSTALL ROOF TOP MOULDING (w/ Lane Keeping Assist System)  . Refer to INSTALLATION - Step 15
