Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener: Notes

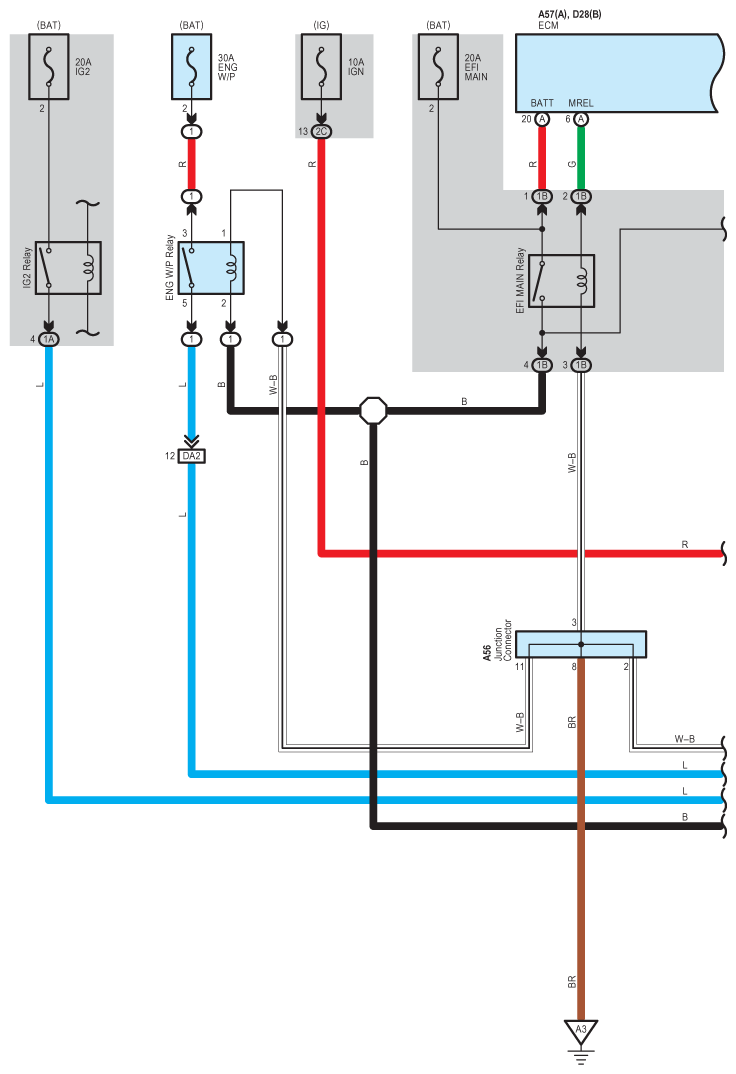

Fig 1: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (1 Of 33)
G09100201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

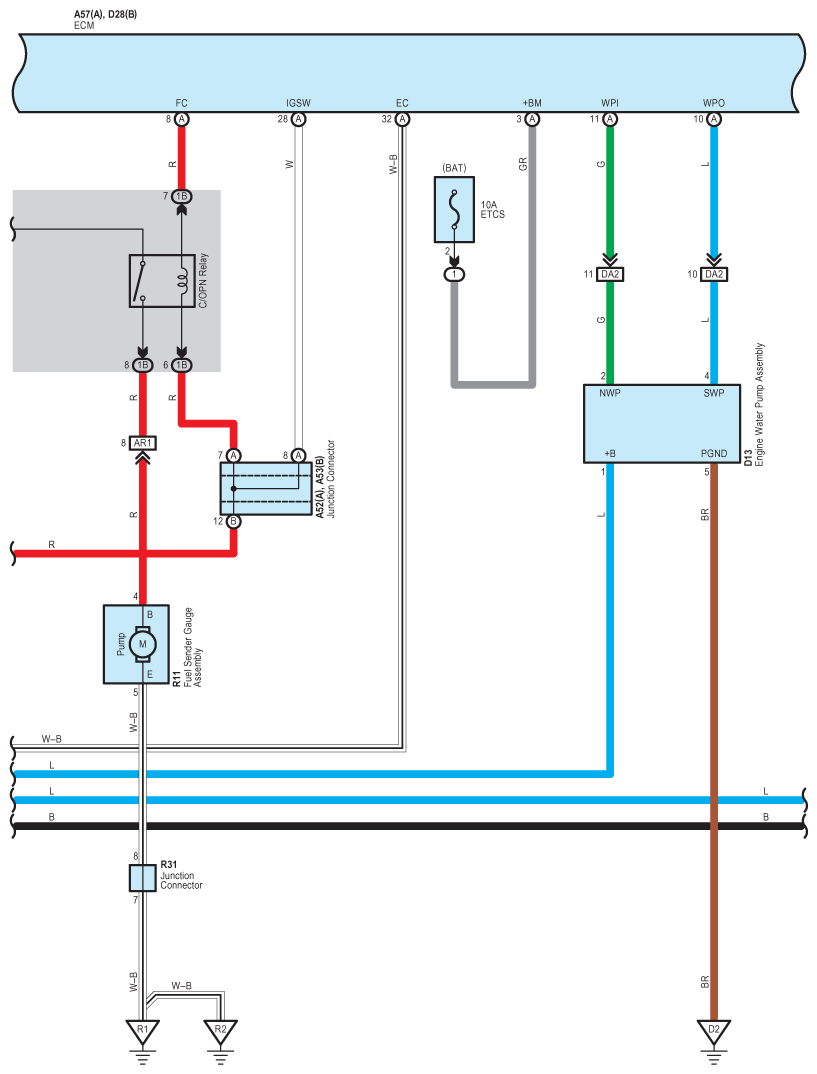

Fig 2: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (2 Of 33)
G09100202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

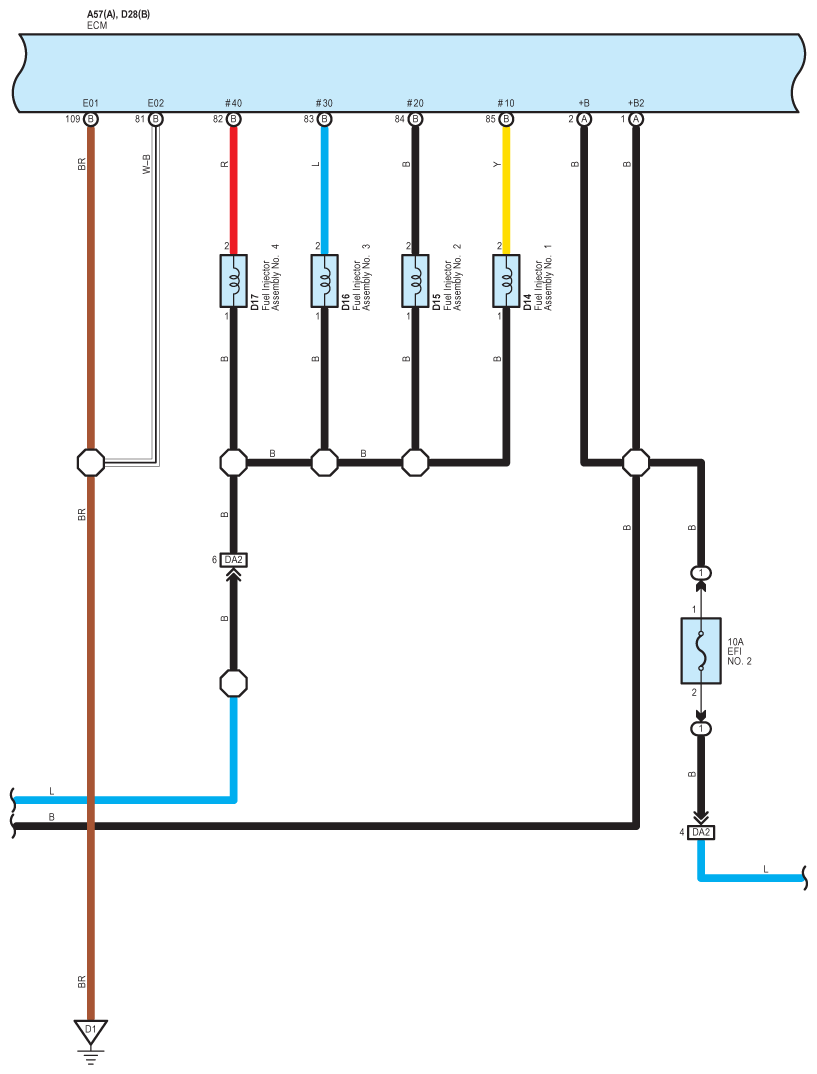

Fig 3: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (3 Of 33)
G09100203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

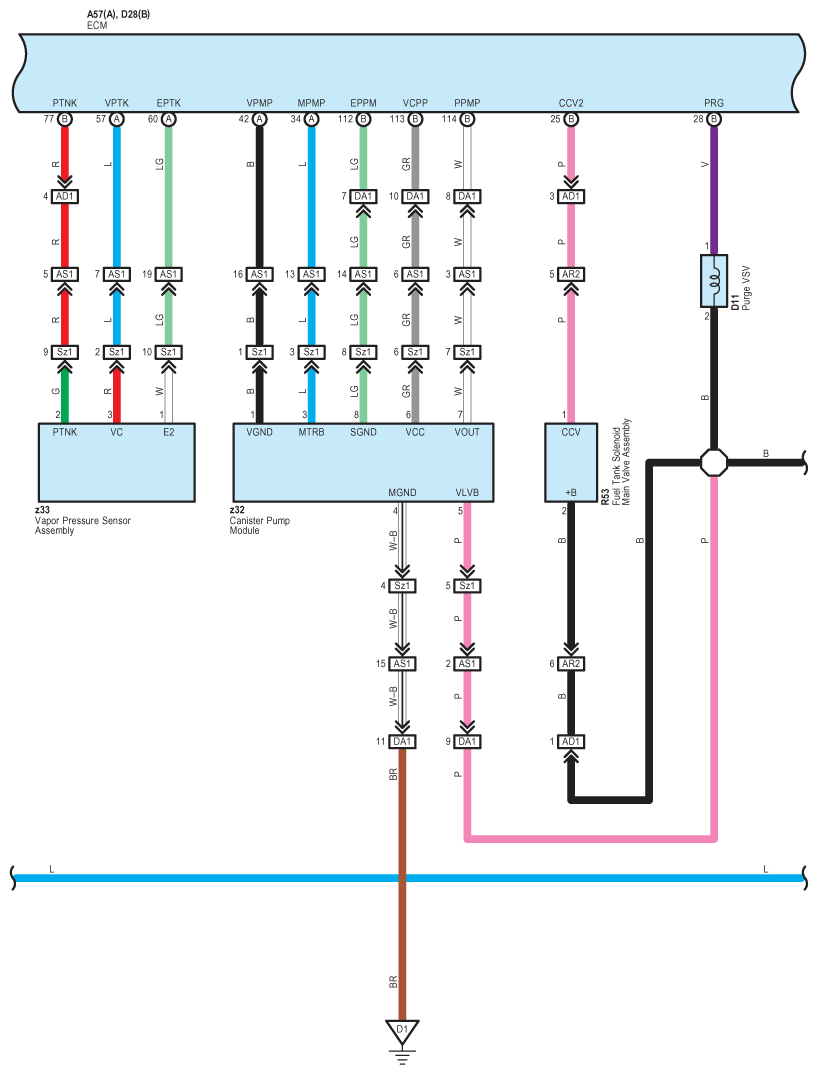

Fig 4: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (4 Of 33)
G09100204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

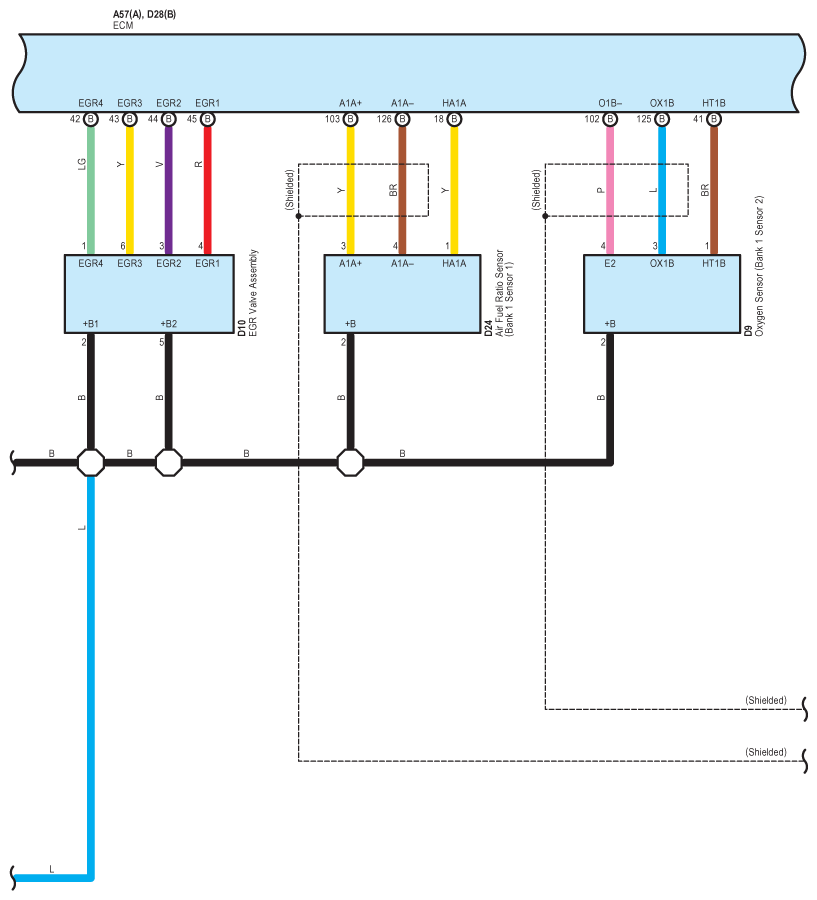

Fig 5: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (5 Of 33)
G09100205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

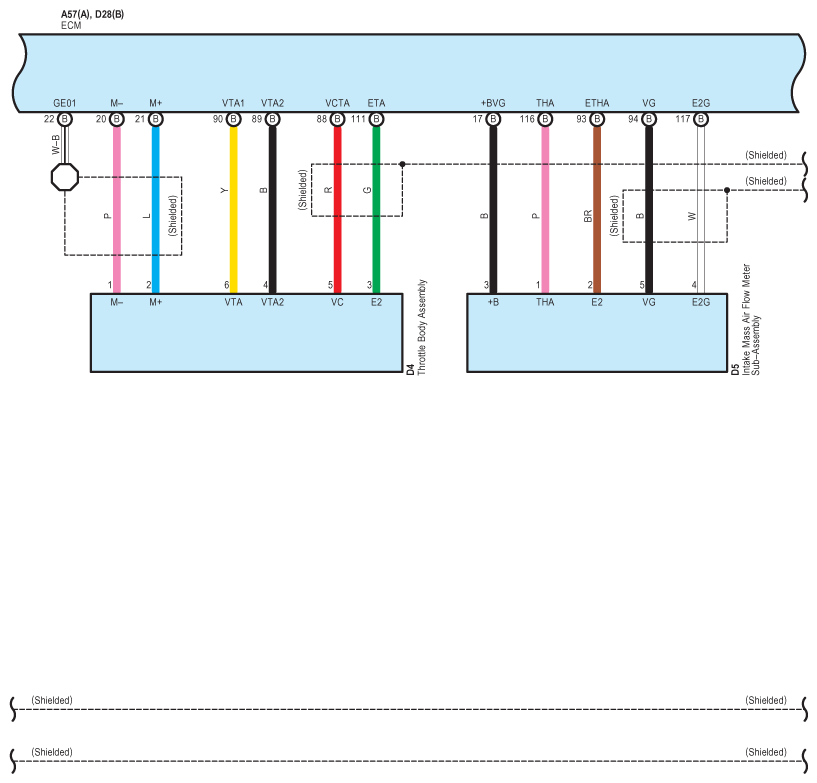

Fig 6: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (6 Of 33)
G09100206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

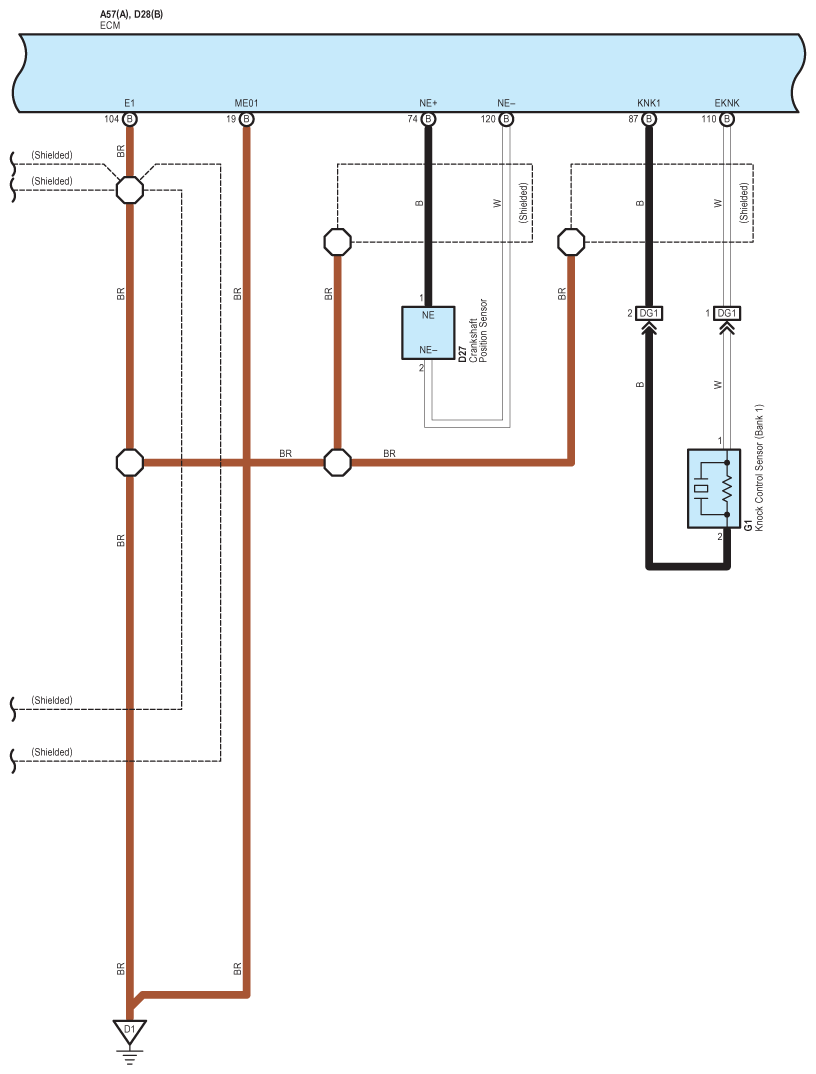

Fig 7: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (7 Of 33)
G09100207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

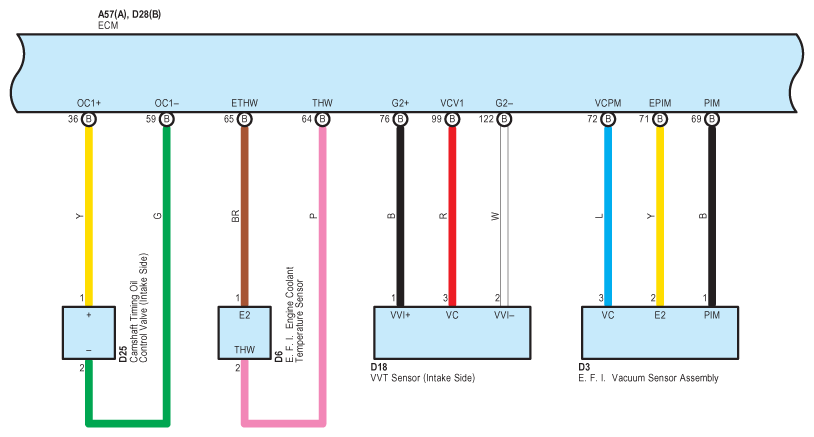

Fig 8: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (8 Of 33)
G09100208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

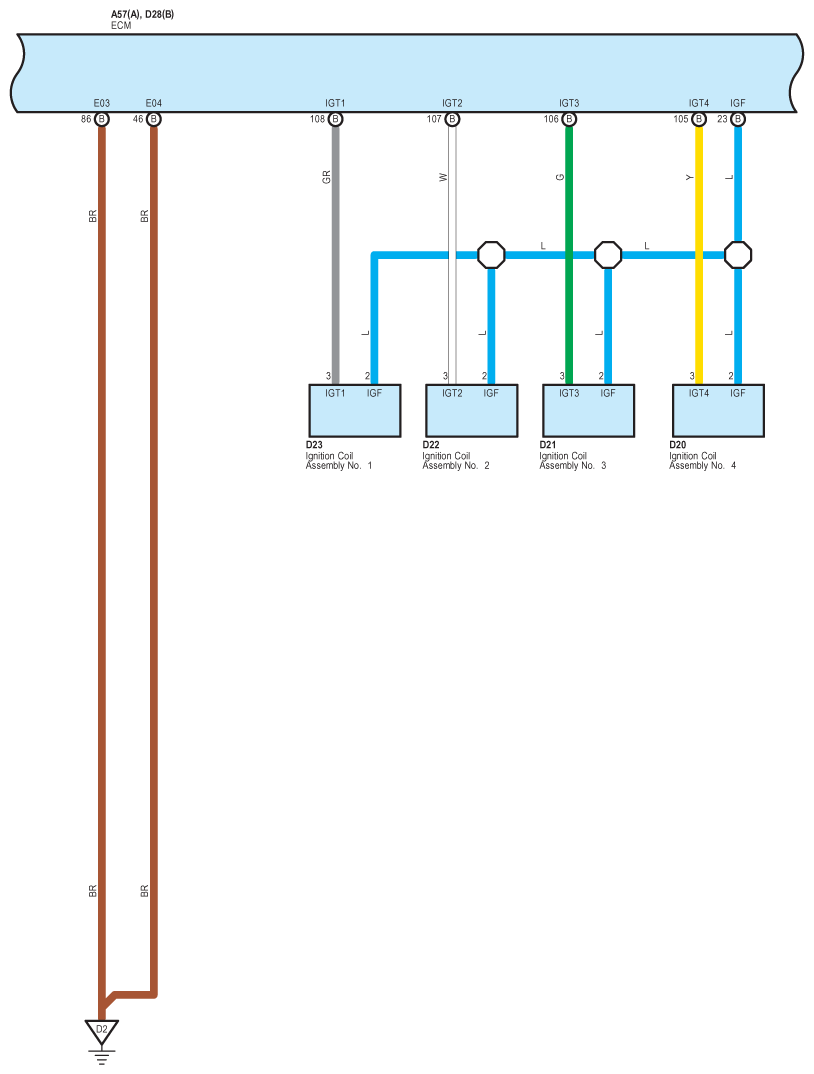

Fig 9: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (9 Of 33)
G09100209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

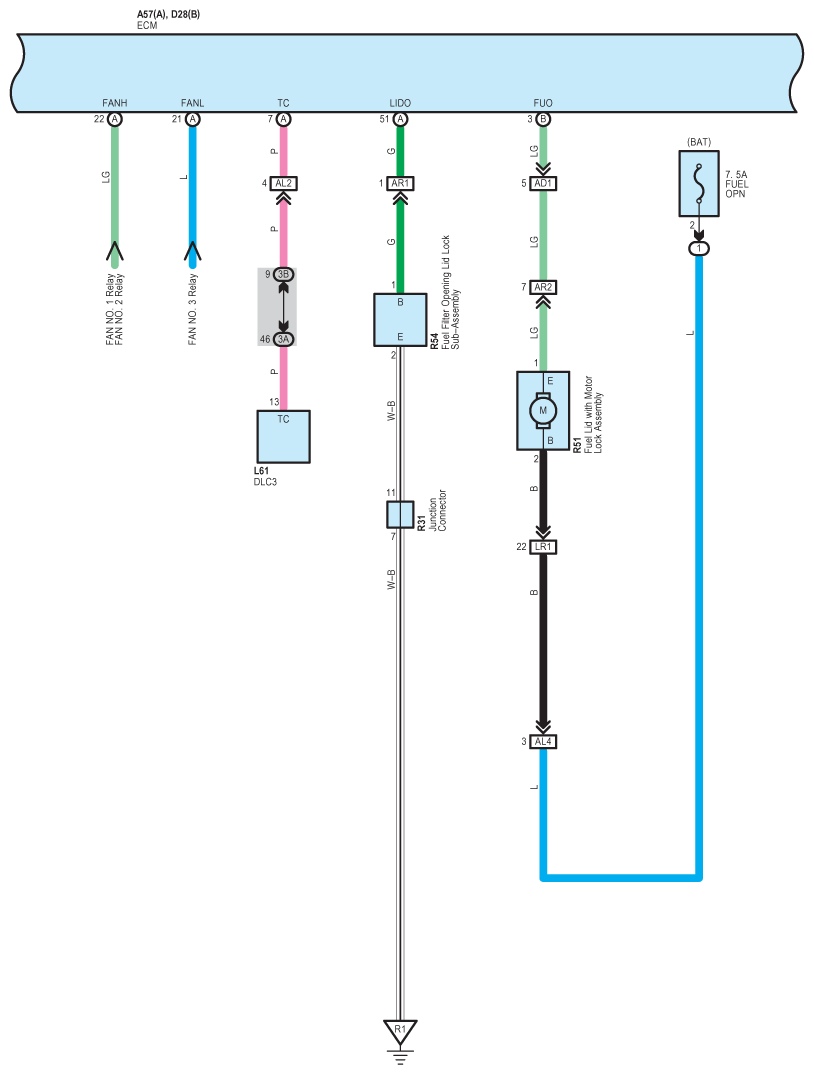

Fig 10: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (10 Of 33)
G09100210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

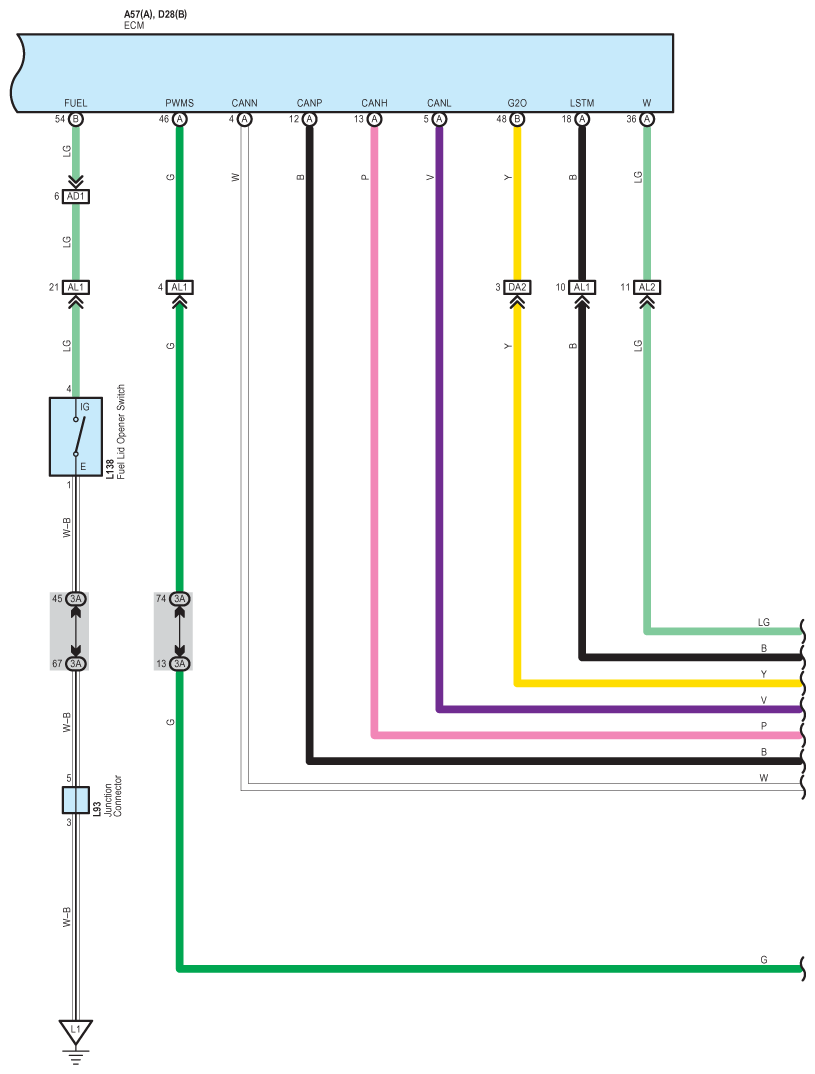

Fig 11: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (11 Of 33)
G09100211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

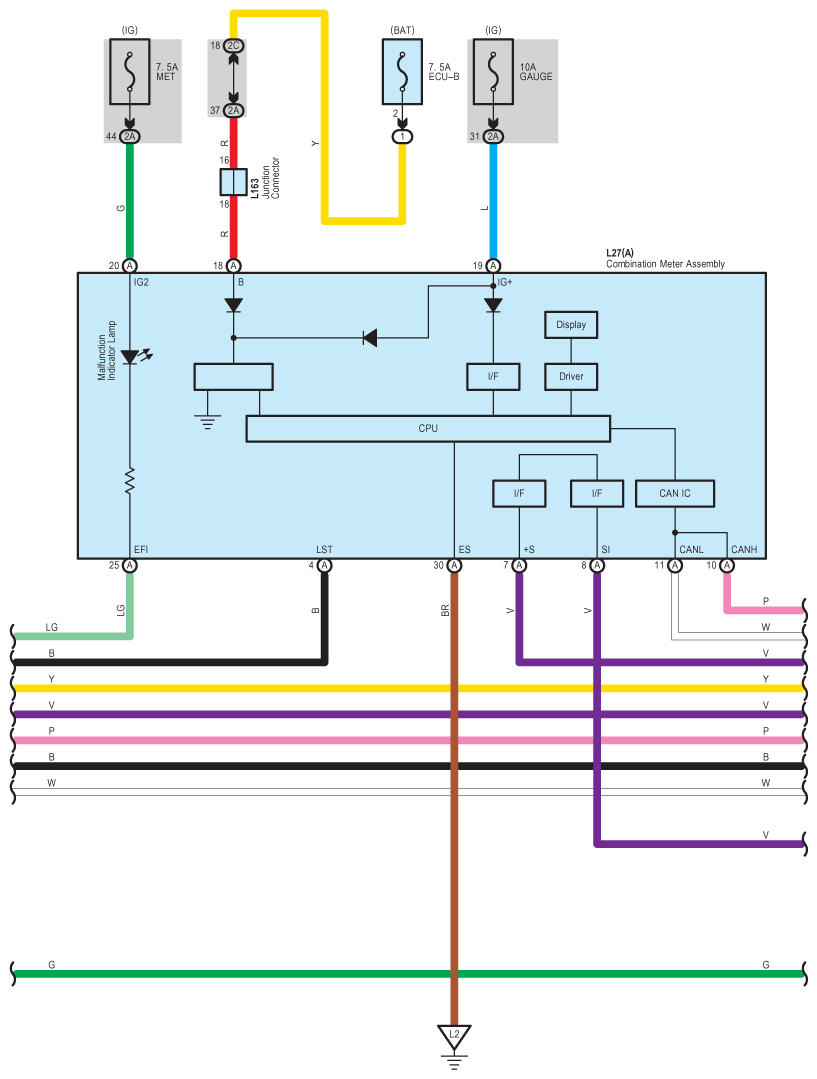

Fig 12: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (12 Of 33)
G09100212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

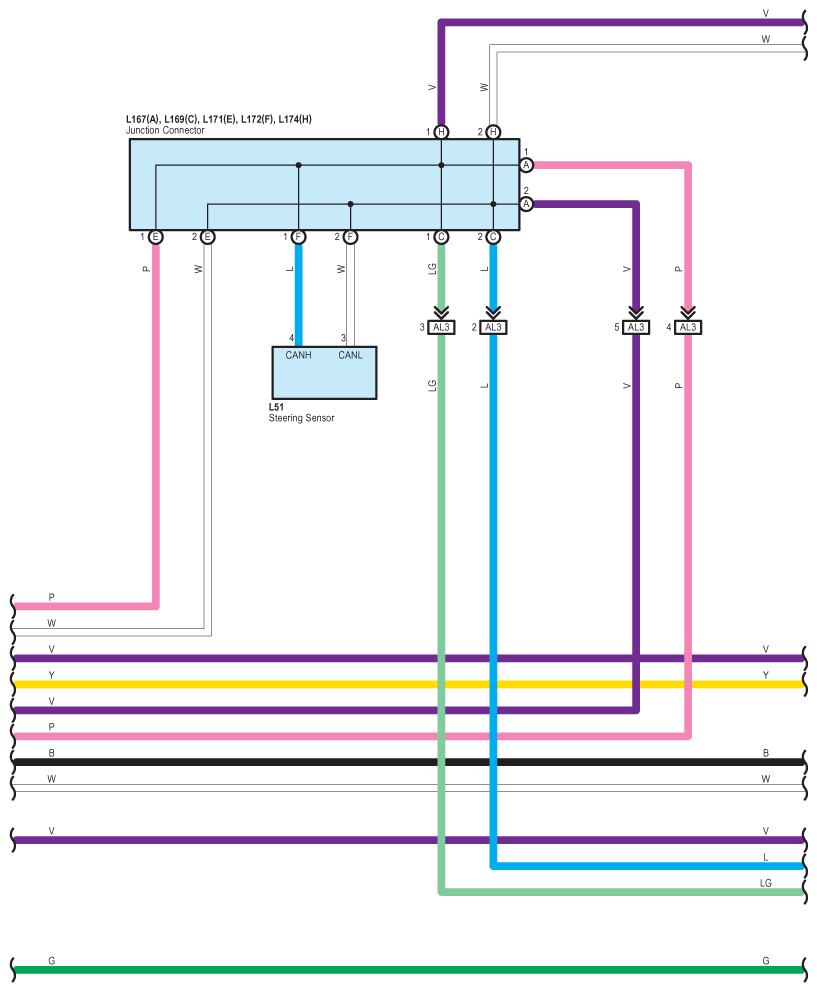

Fig 13: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (13 Of 33)
G09100213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

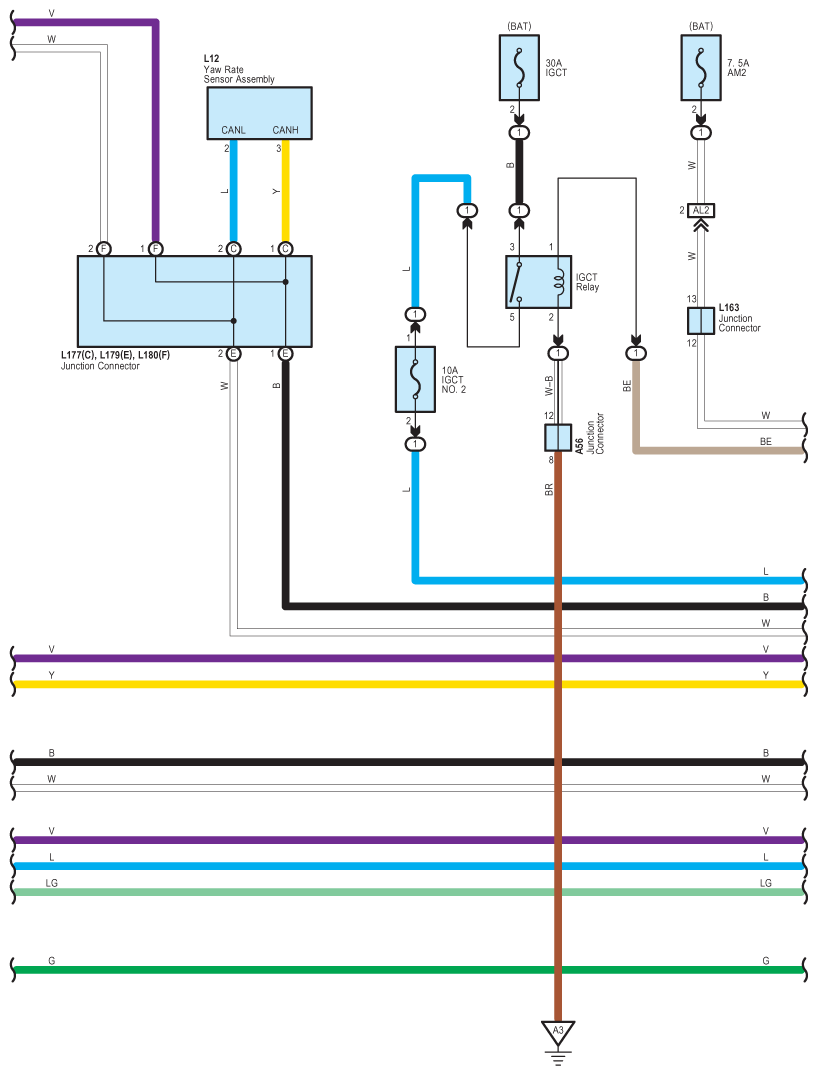

Fig 14: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (14 Of 33)
G09100214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

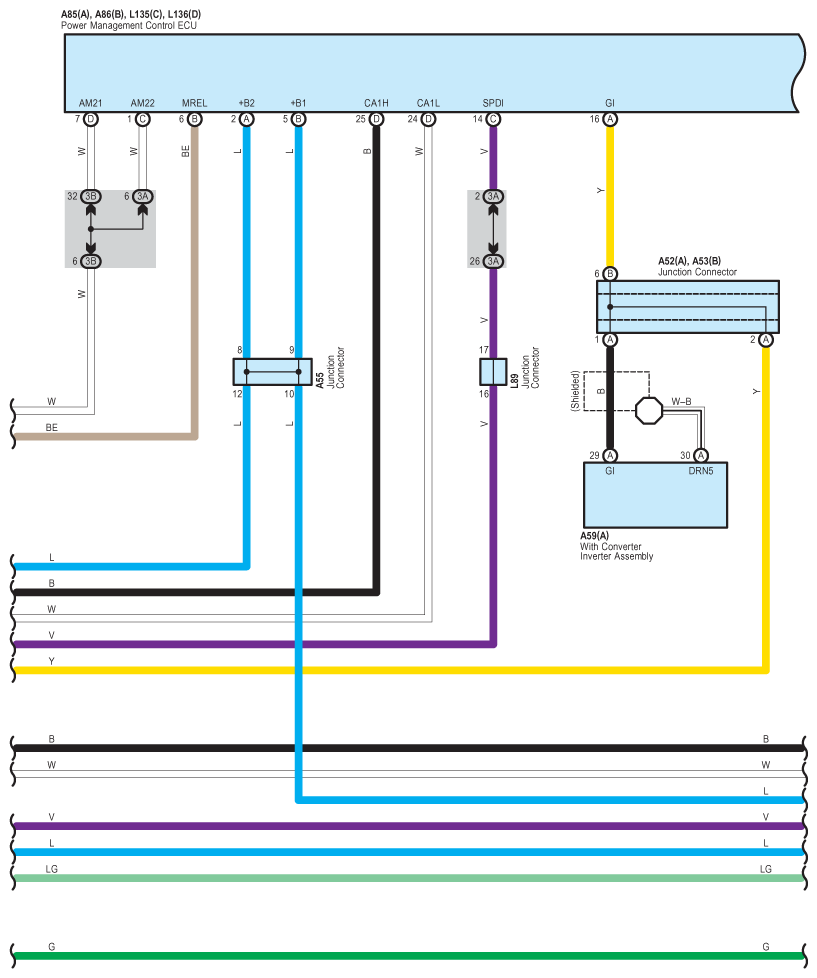

Fig 15: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (15 Of 33)
G09100215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

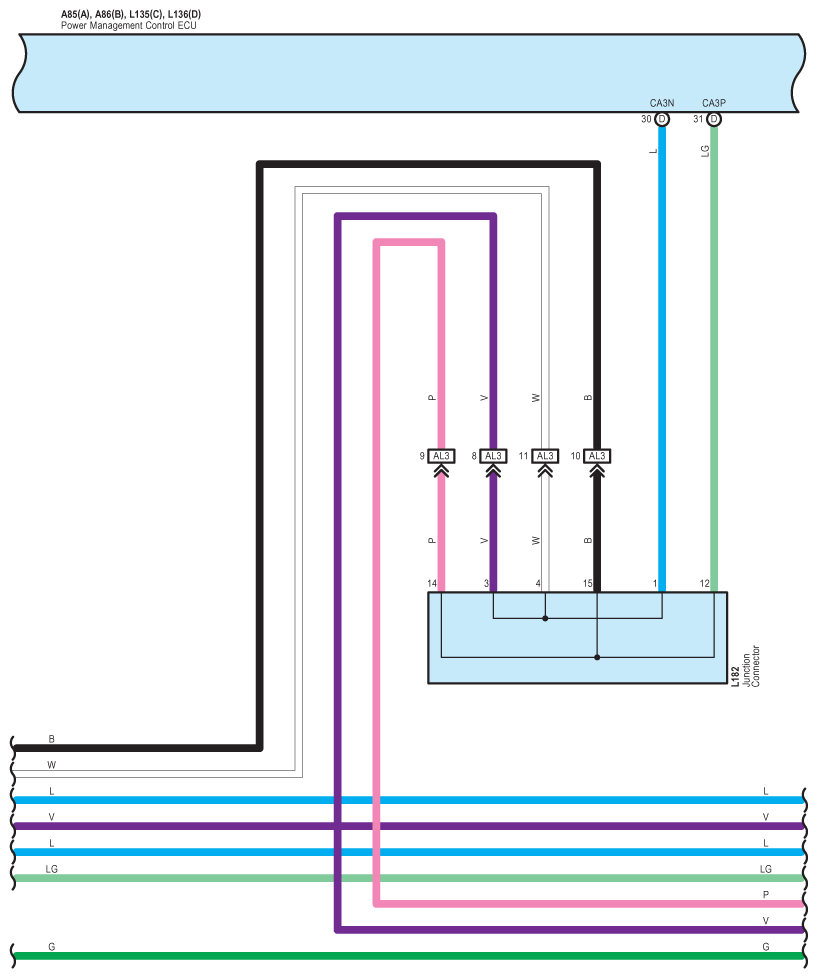

Fig 16: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (16 Of 33)
G09100216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

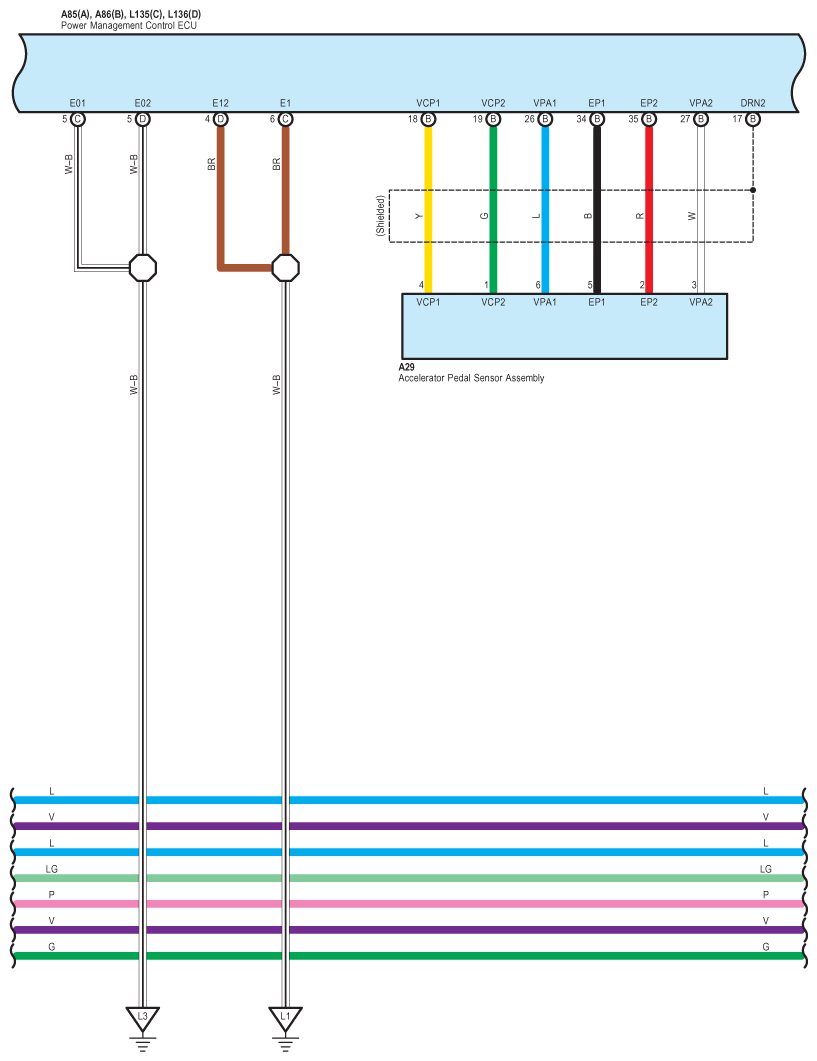

Fig 17: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (17 Of 33)
G09100217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

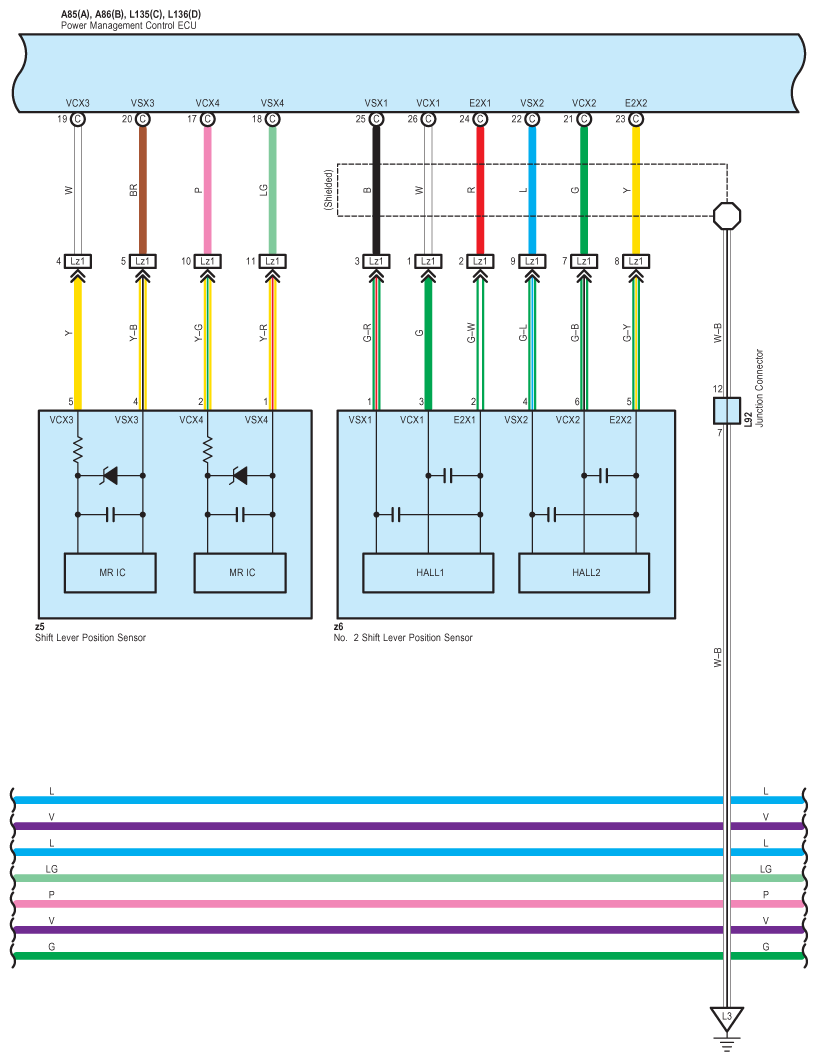

Fig 18: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (18 Of 33)
G09100218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

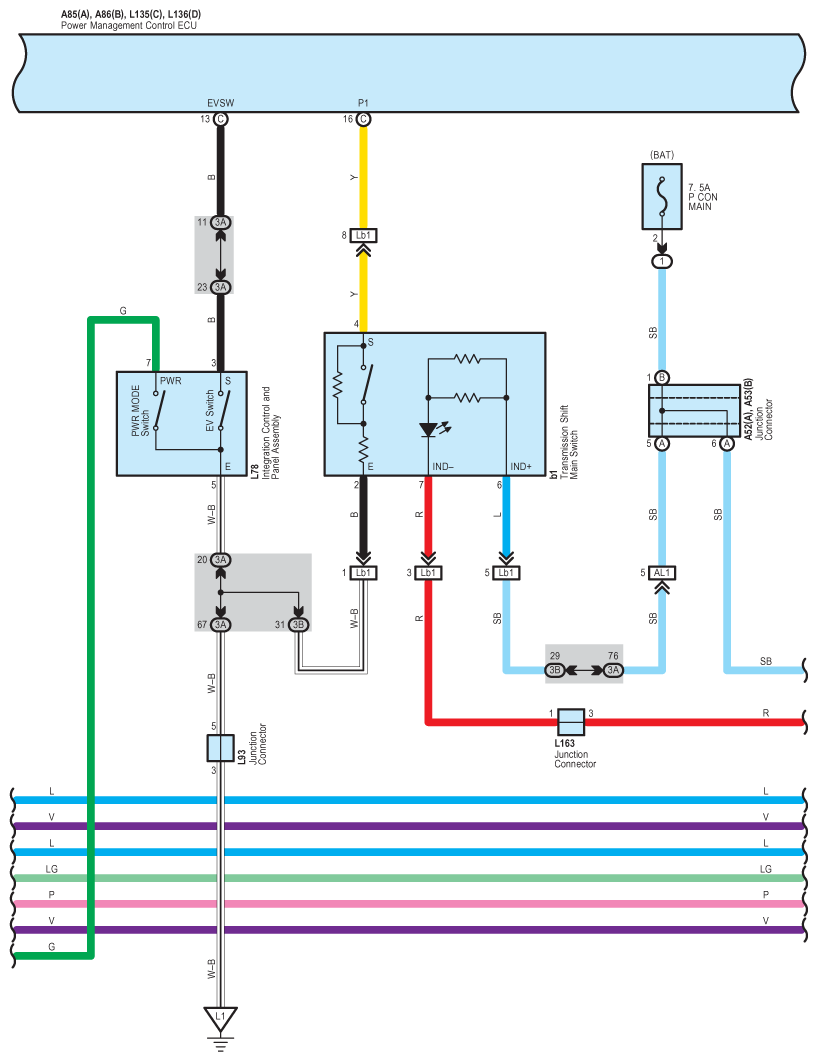

Fig 19: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (19 Of 33)
G09100219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

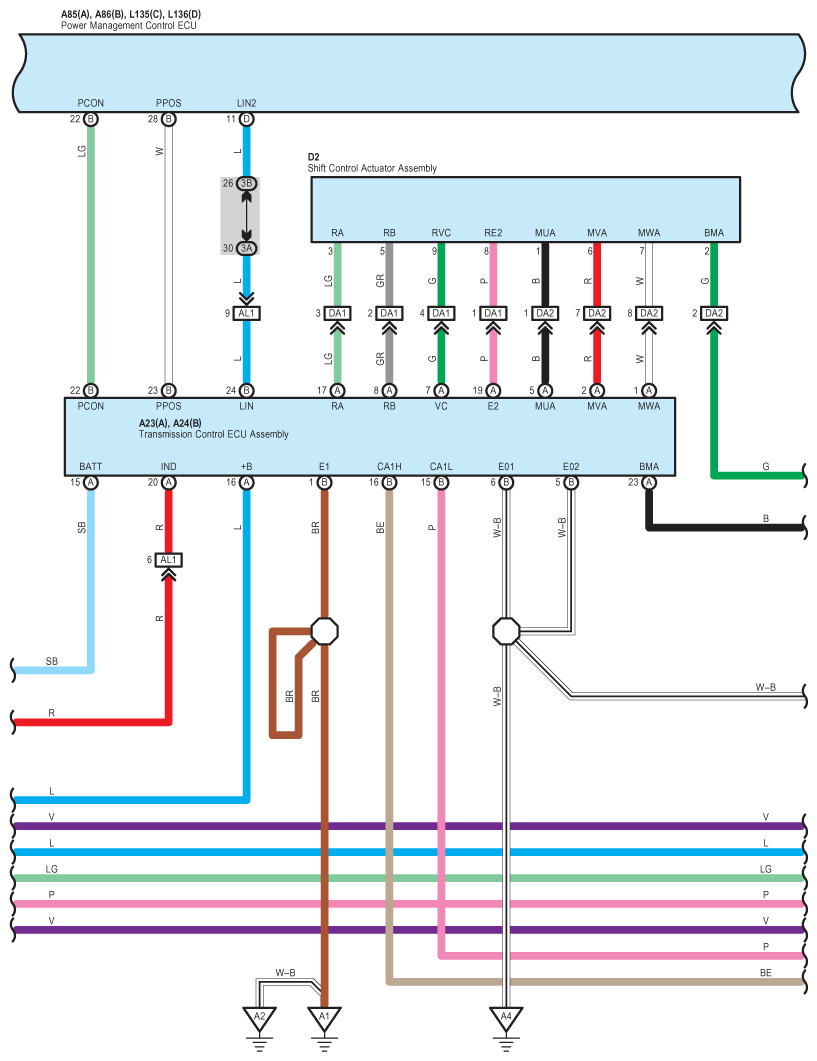

Fig 20: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (20 Of 33)
G09100220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

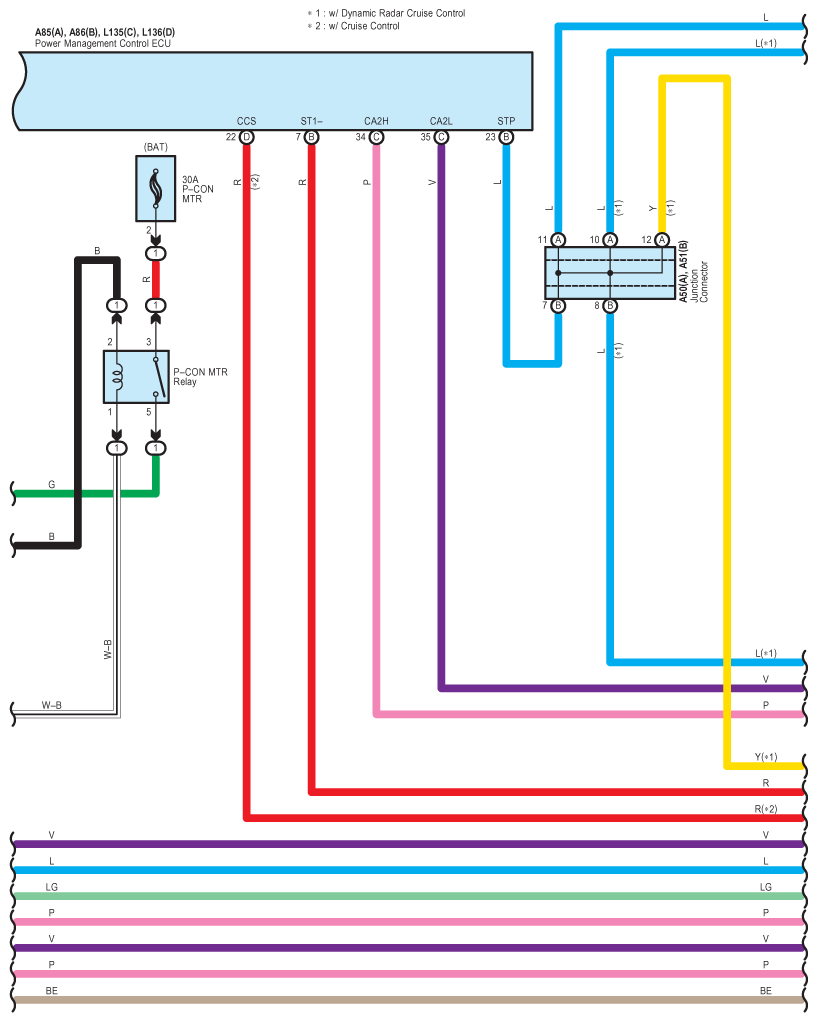

Fig 21: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (21 Of 33)
G09100221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

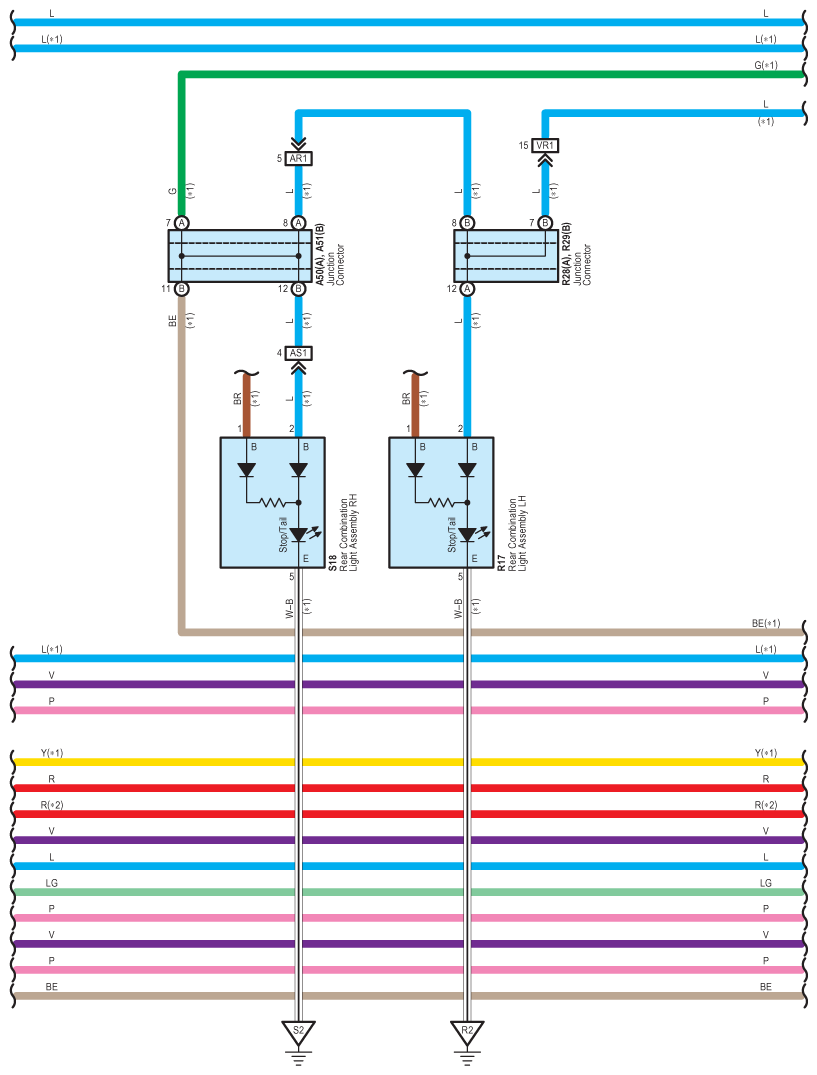

Fig 22: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (22 Of 33)
G09100222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

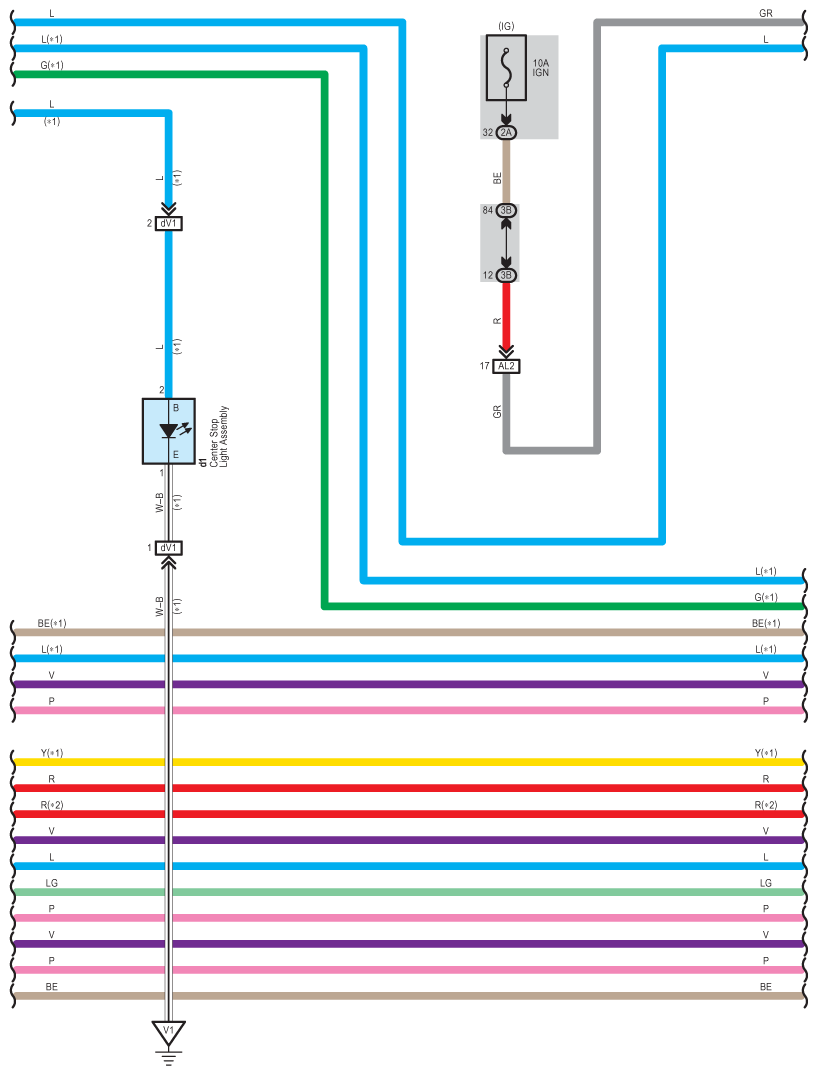

Fig 23: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (23 Of 33)
G09100223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

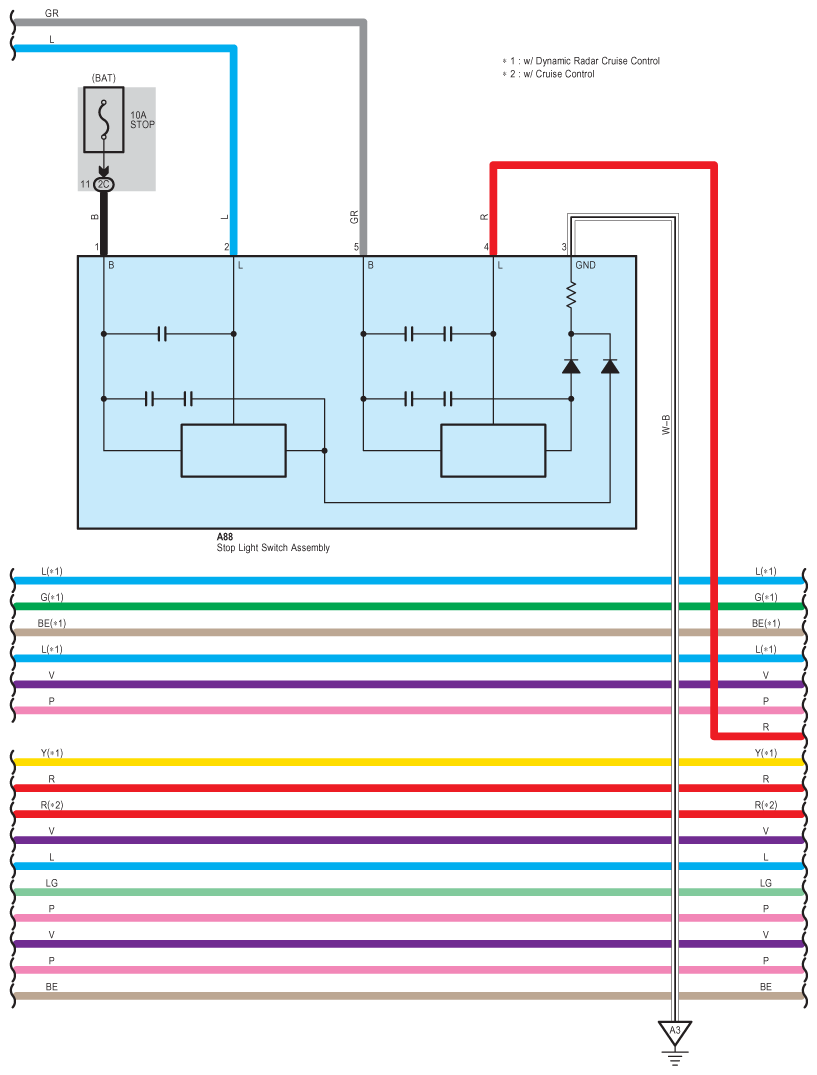

Fig 24: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (24 Of 33)
G09100224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

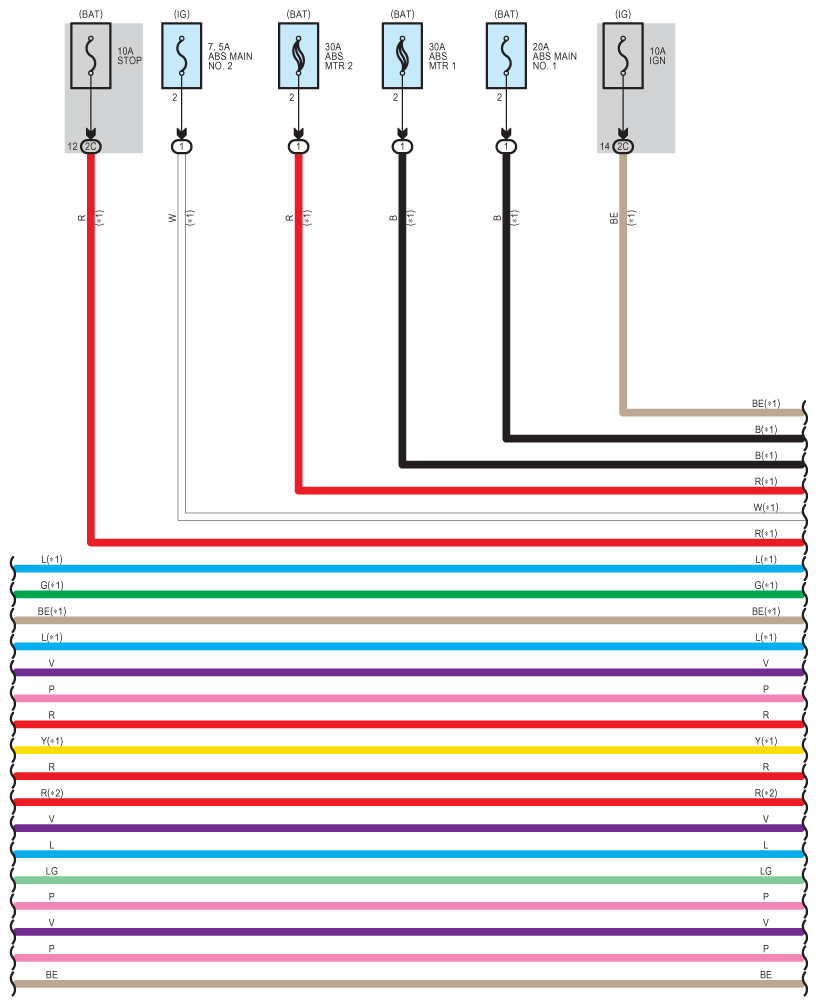

Fig 25: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (25 Of 33)
G09100225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

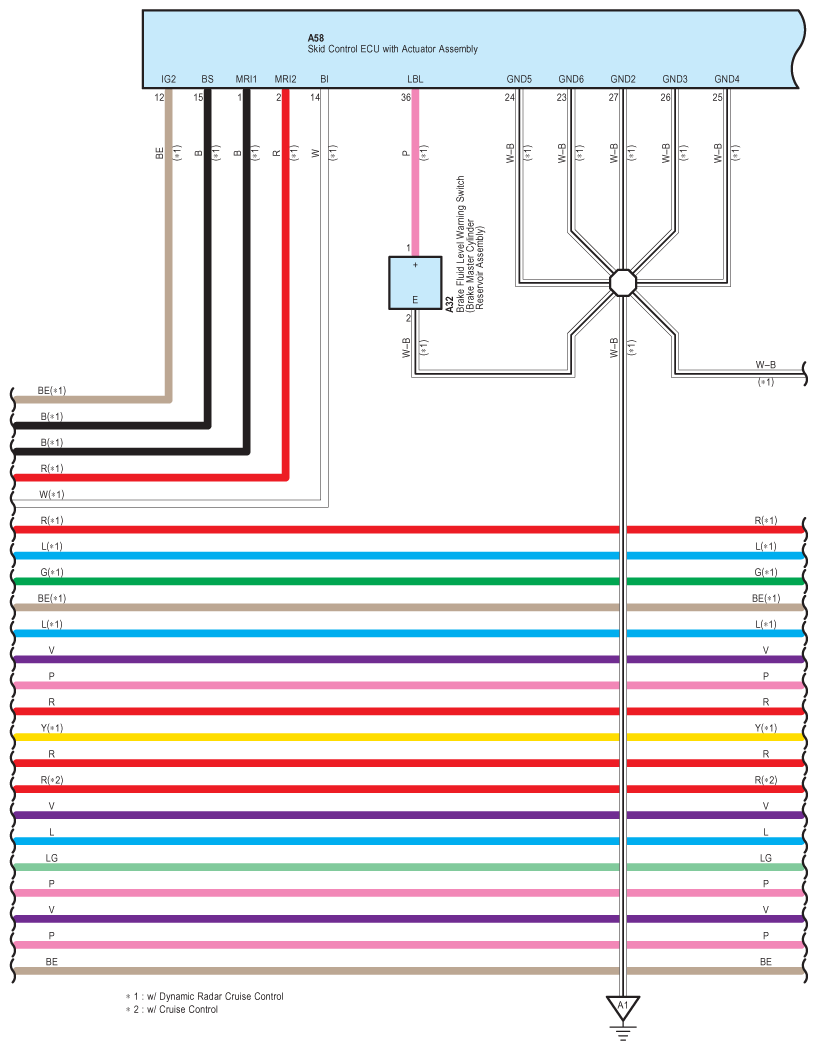

Fig 26: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (26 Of 33)
G09100226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

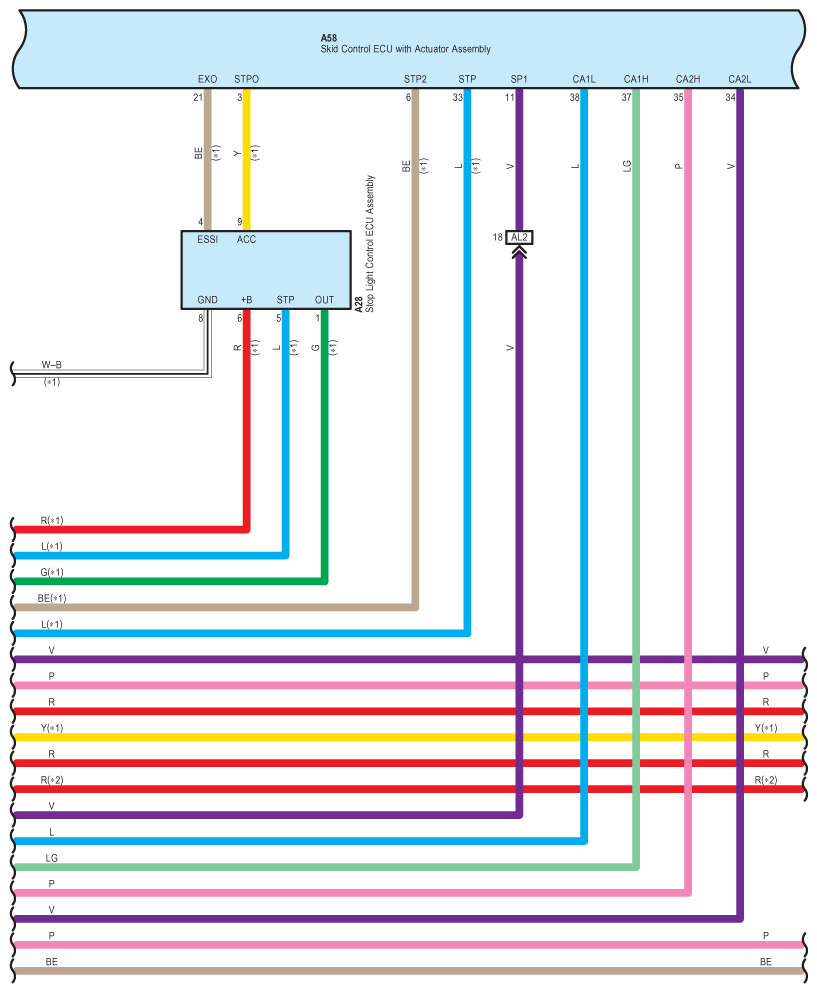

Fig 27: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (27 Of 33)
G09100227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

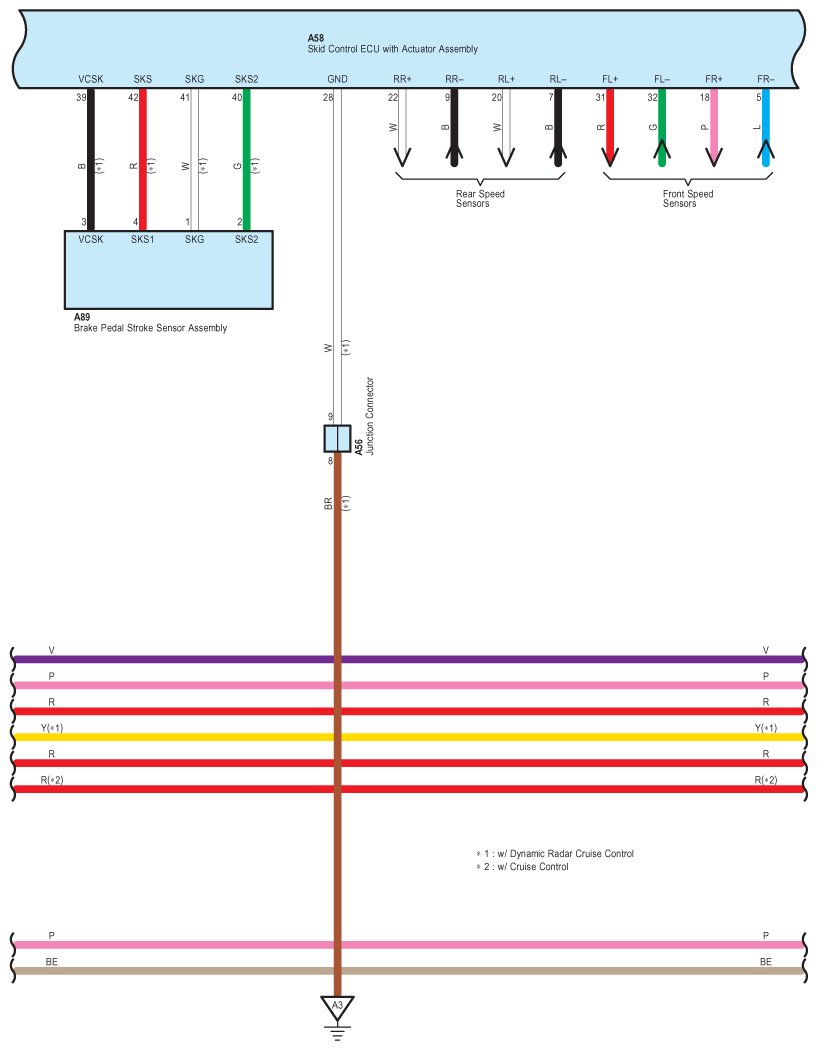

Fig 28: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (28 Of 33)
G09100228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

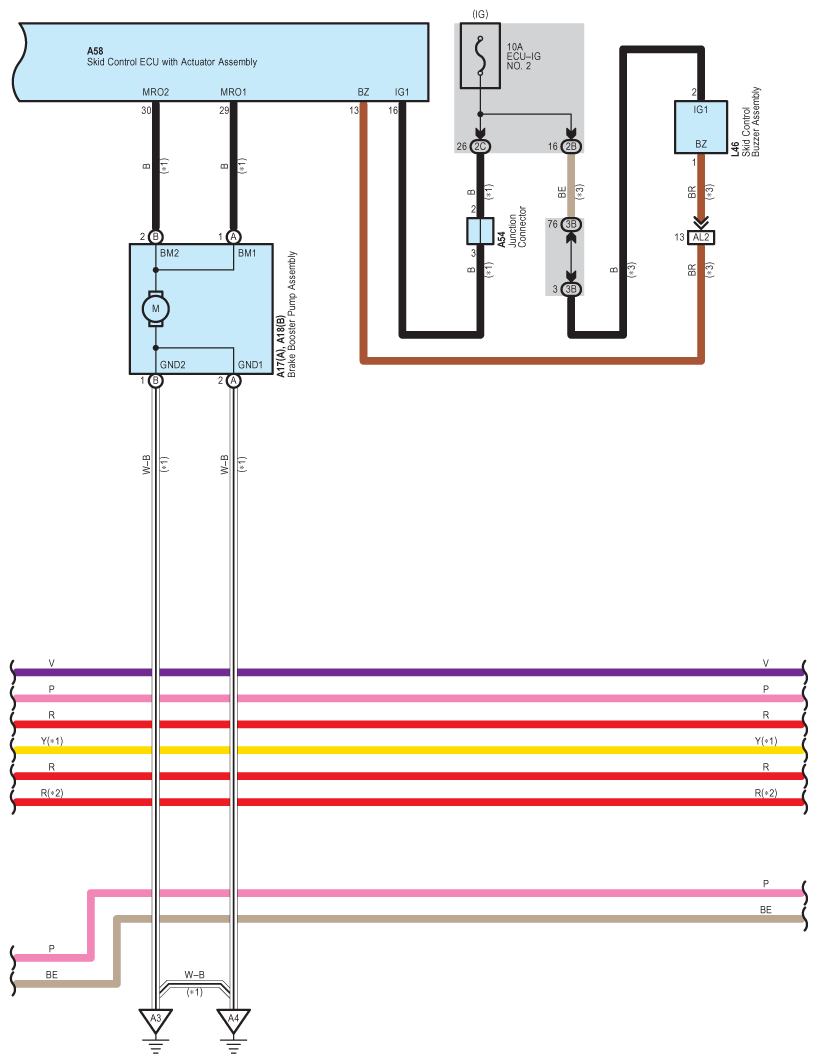

Fig 29: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (29 Of 33)
G09100229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

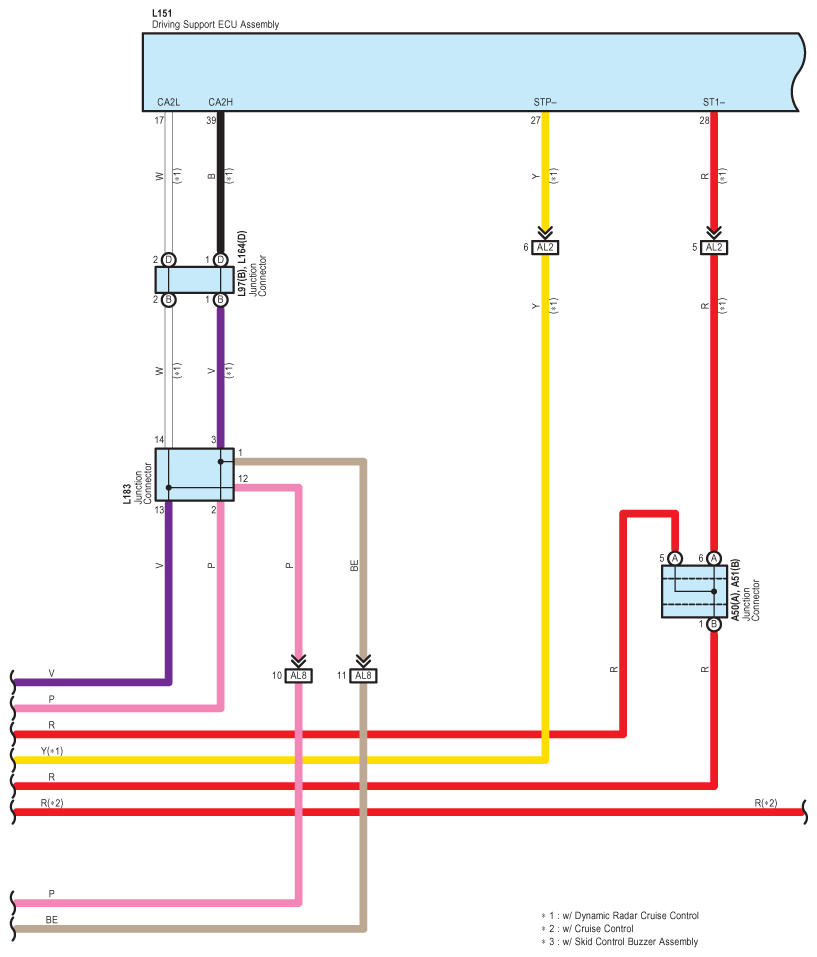

Fig 30: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (30 Of 33)
G09100230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

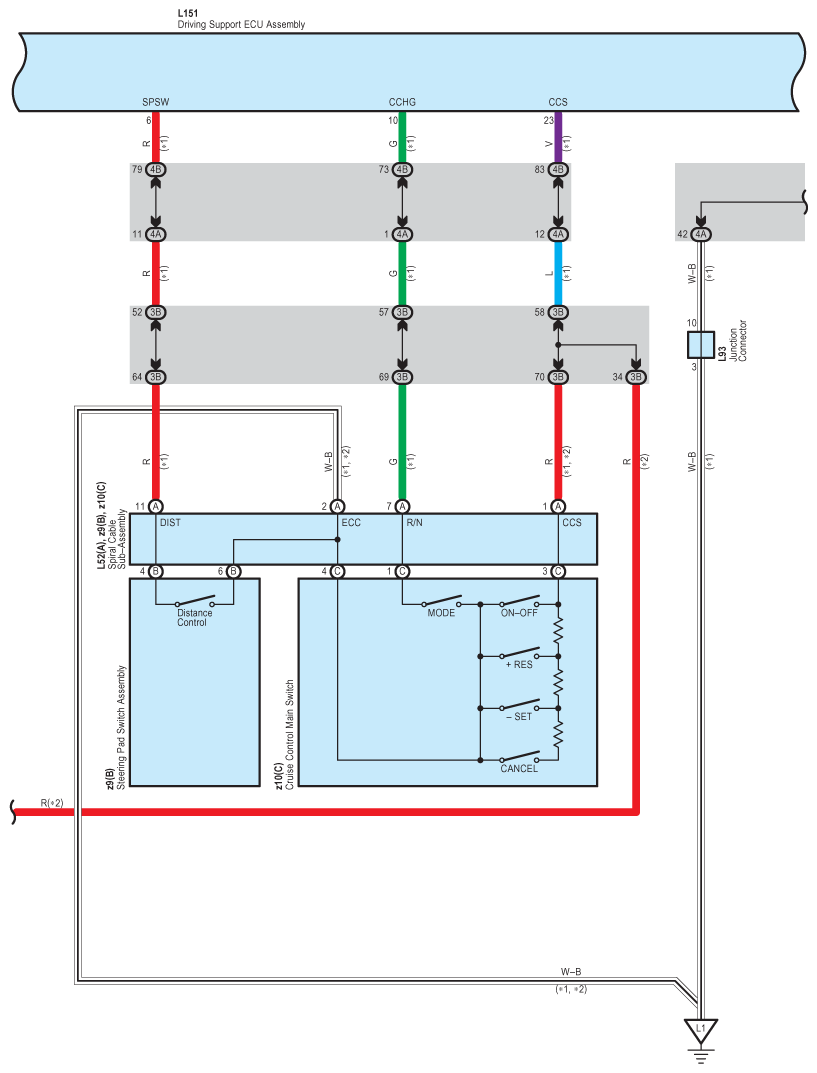

Fig 31: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (31 Of 33)
G09100231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

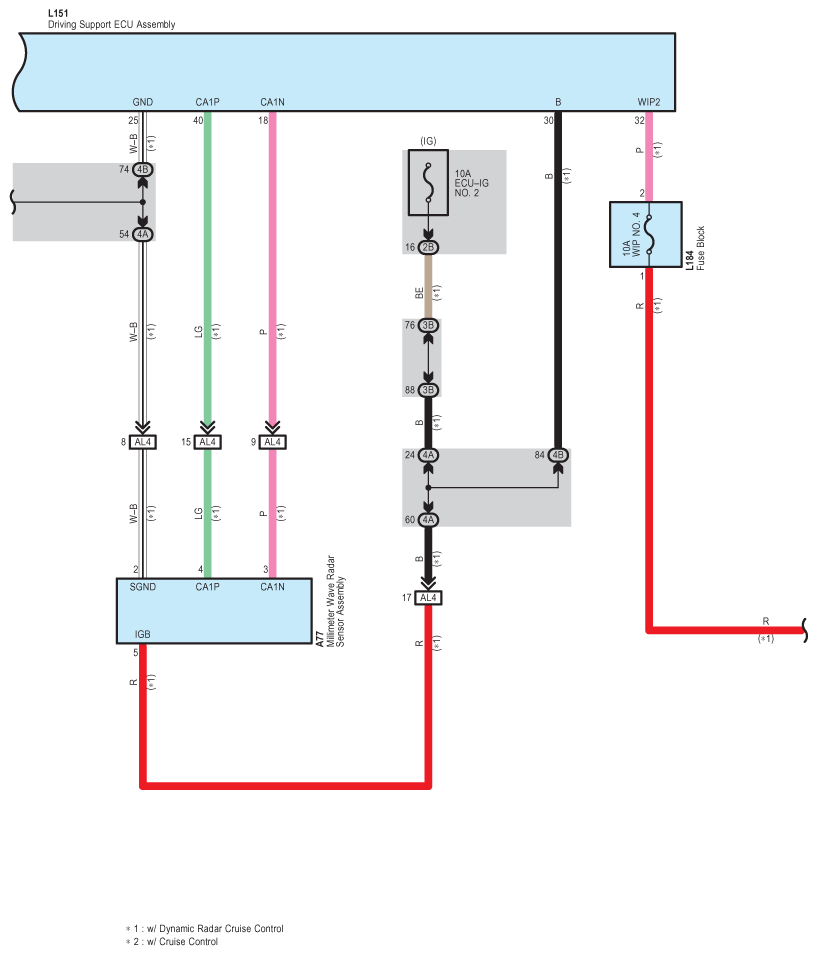

Fig 32: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (32 Of 33)
G09100232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

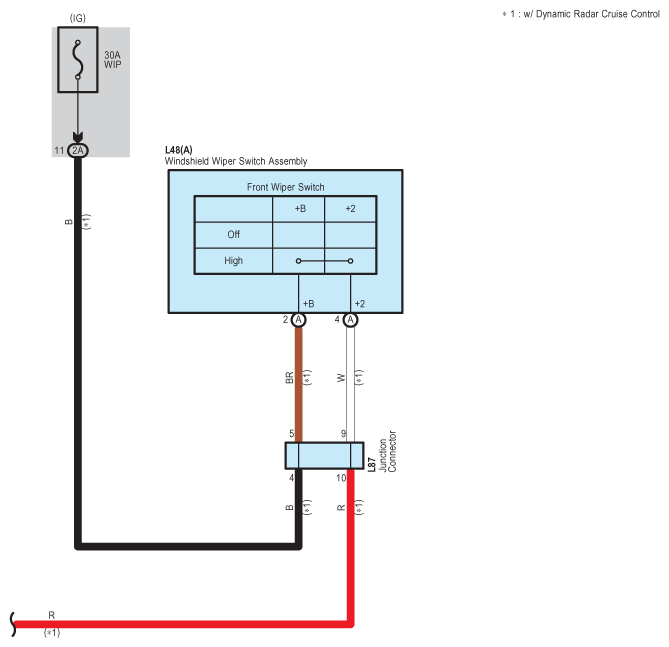

Fig 33: Cruise Control, Dynamic Radar Cruise Control And Engine Control And Fuel Lid Opener Wiring Diagram (33 Of 33)
G09100233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
