Only Back Door cannot be Opened: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

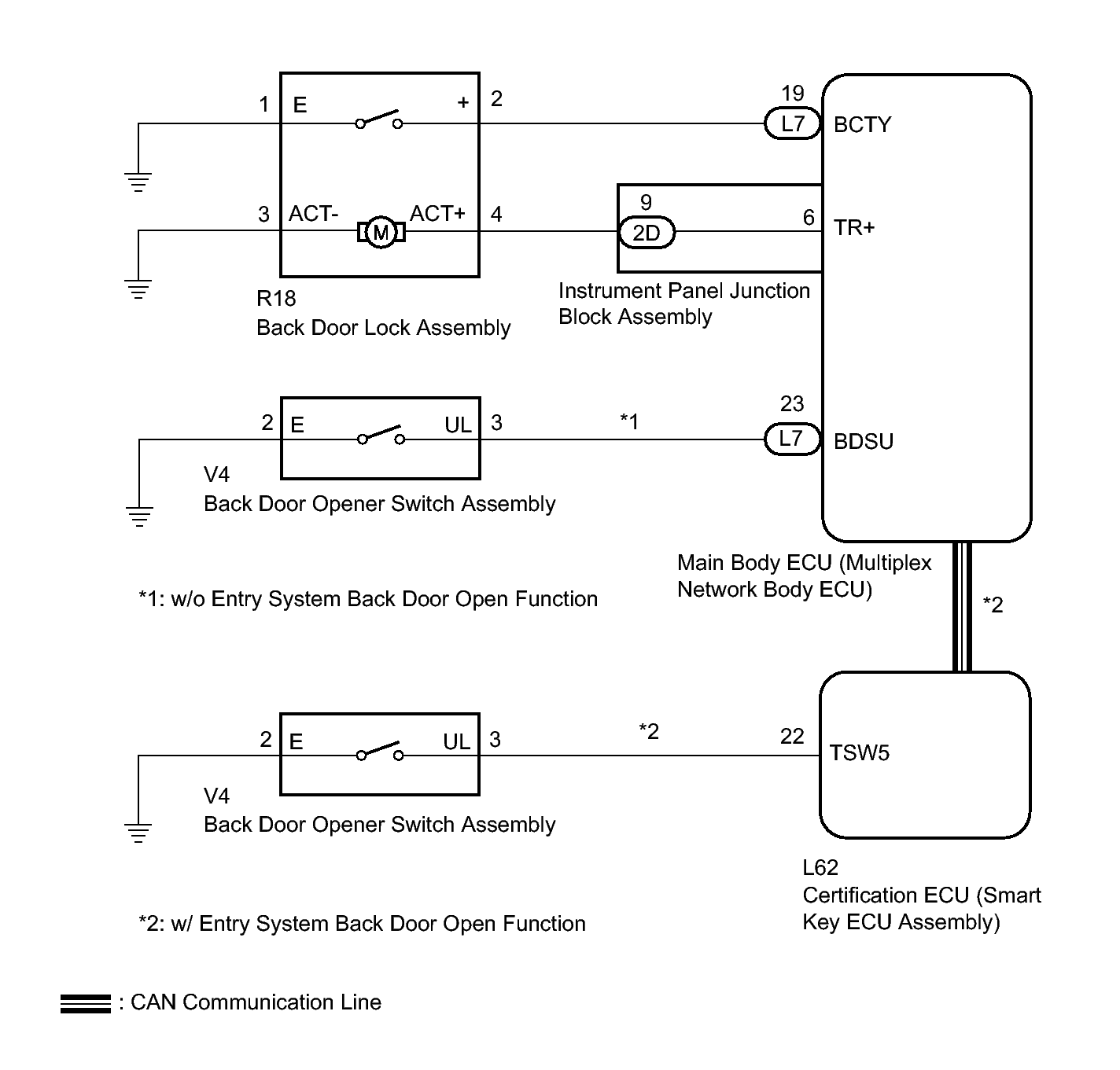

Fig 1: Main Body ECU (Multiplex Network Body ECU) Wiring Diagram
GTY233783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
