Daytime Running Light Relay Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Check that the daytime running lights operate.
   MAIN BODY



   Tester Display	Test Part	Control Range	Diagnostic Note
   Daytime Running Light	Daytime running lights	ON/OFF	-

   OK

   Daytime running lights illuminate.

NG → See step   2

OK → See step   16

1. Chose the model to be inspected.

   Result

   Result	Proceed to
   for Canada	A
   except Canada	B

B → See step   9

A: Go to next step

1. Check the operation of the high beam headlights.

   OK

   High beam headlights operate normally.

NG → See step   15

OK: Go to next step

1. Remove the running light relay.

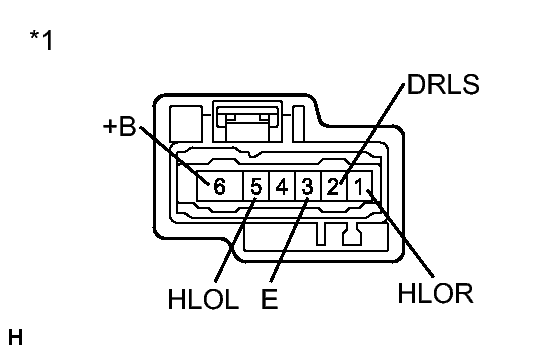

   Fig 1: Identifying Running Light Relay Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect a positive (+) lead from the battery to terminal 6 (+B).
3. Connect a negative (-) lead from the battery to terminals 2 (DRLS) and 3 (E).
4. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   1 (HLOR) - Battery negative	Always	Pulse generation
   5 (HLOL) - Battery negative	Always	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Running Light Relay)

NG → REPLACE RUNNING LIGHT RELAY

OK: Go to next step

1. Chose the model to be inspected.

   Result

   Result	Proceed to
   for Main body ECU (multiplex network body ECU) with 1 connector	A
   for Main body ECU (multiplex network body ECU) with 3 connectors	B

B → See step   7

A: Go to next step

1. Disconnect the L7 main body ECU (multiplex network body ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Relay terminal 2 (DRLS) - L7-15 (DRLE)	Always	Below 1 Ω
   L7-15 (DRLE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   17

1. Disconnect the 2C instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Relay terminal 2 (DRLS) - 2C-35	Always	Below 1 Ω
   2C-35 - Body ground	Always	10 kΩ or higher
   Relay terminal 3 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the instrument panel junction block assembly.

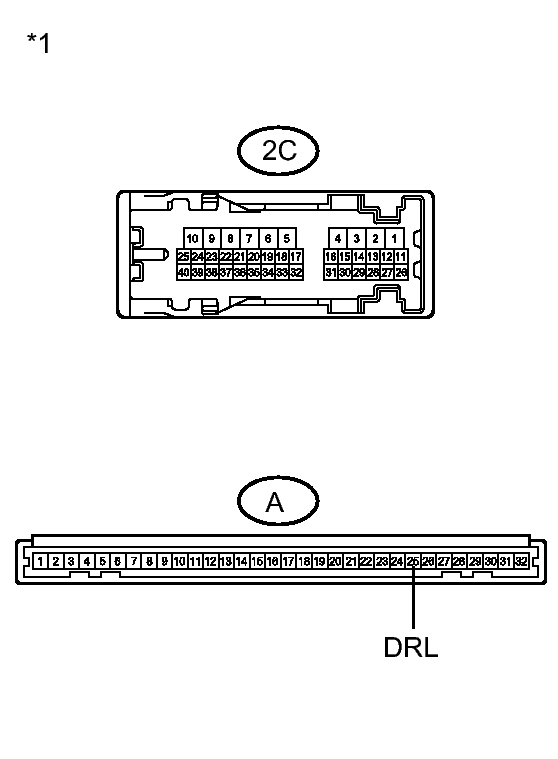

   Fig 2: Identifying Instrument Panel Junction Block Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2C-35 - A-25 (DRL)	Always	Below 1 Ω
   2C-35 - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block Assembly)

NG → See step   18

OK → See step   17

1. Remove the running light relay.

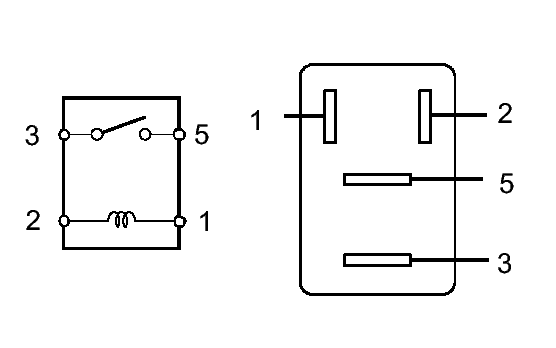

   Fig 3: Identifying Fog Light Relay Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Voltage is not applied between terminals 1 and 2	10 kΩ or higher
   3 - 5	Voltage is applied between terminals 1 and 2	Below 1 Ω

NG → REPLACE RUNNING LIGHT RELAY

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   Relay terminal 1 - Body ground	Always	11 to 14 V
   Relay terminal 3 - Body ground	Always	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Chose the model to be inspected.

   Result

   Result	Proceed to
   for Main body ECU (multiplex network body ECU) with 1 connector	A
   for Main body ECU (multiplex network body ECU) with 3 connector	B

B → See step   13

A: Go to next step

1. Disconnect the L7 main body ECU (multiplex network body ECU) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Relay terminal 2 - L7-15 (DRLE)	Always	Below 1 Ω
   L7-15 (DRLE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   17

1. Disconnect the 2C instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Running light relay terminal 2 - 2C-35	Always	Below 1 Ω
   2C-35 - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the instrument panel junction block assembly.
   Fig 4: Identifying Instrument Panel Junction Block Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2C-35 - A-25 (DRL)	Always	Below 1 Ω
   2C-35 - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block Assembly)

NG → See step   18

OK → See step   16
