High Beam Headlight Circuit: Procedure

1. Check the operation of the low beam headlights.

   OK

   Low beam headlights operate normally.

NG → See step   13

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Check that the high beam headlights illuminate.
   MAIN BODY



   Tester Display	Test Part	Control Range	Diagnostic Note
   Head Light Hi	High beam headlights	ON/OFF	-

   OK

   High beam headlights illuminate.

NG → See step   3

OK → See step   11

1. Chose the model to be inspected.

   Result

   Result	Proceed to
   for Canada	A
   except Canada	B

B → See step   7

A: Go to next step

1. Connect a positive (+) lead from the battery to terminal 6 (+B).

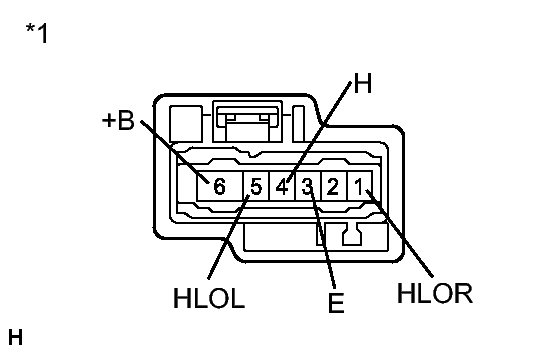

   Fig 1: Identifying Running Light Relay Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect a negative (-) lead from the battery to terminals 4 (H) and 3 (E).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   1 (HLOR) - Battery negative	Always	11 to 14 V
   5 (HLOL) - Battery negative	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Running Light Relay)

NG → REPLACE RUNNING LIGHT RELAY

OK: Go to next step

1. Disconnect the 2C instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Relay terminal 4 (H) - 2C-22	Always	Below 1 Ω
   2C-22 - Body ground	Always	10 kΩ or higher
   Relay terminal 3 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the instrument panel junction block assembly.

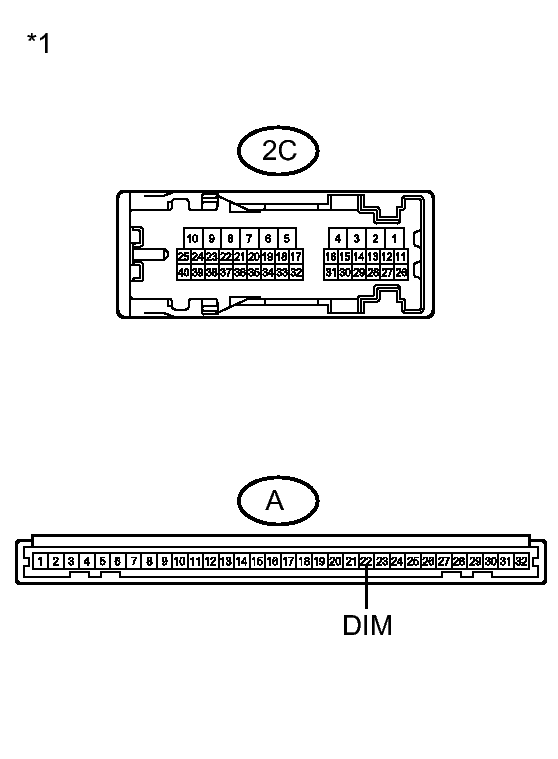

   Fig 2: Identifying Instrument Panel Junction Block Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2C-22 - A-22 (DIM)	Always	Below 1 Ω
   2C-22 - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block Assembly)

NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK → See step   12

1. Remove the headlight dimmer relay from the engine room relay block.

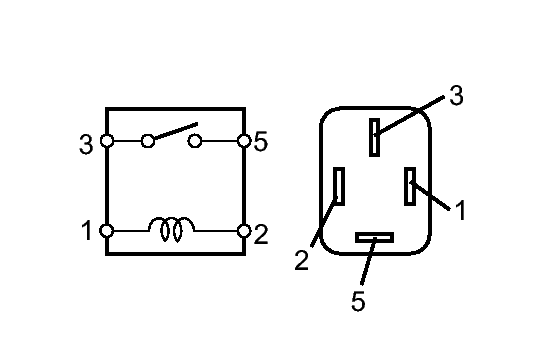

   Fig 3: Inspecting Head LP Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Voltage is not applied between terminals 1 and 2	10 kΩ or higher
   3 - 5	Voltage is applied between terminals 1 and 2	Below 1 Ω

NG → REPLACE HEADLIGHT DIMMER RELAY

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   Relay terminal 2 - Body ground	Always	11 to 14 V
   Relay terminal 3 - Body ground	Always	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the 2C instrument panel junction block assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Relay terminal 1 - 2C-22	Always	Below 1 Ω
   2C-22 - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the instrument panel junction block assembly.
   Fig 4: Identifying Instrument Panel Junction Block Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2C-22 - A-22 (DIM)	Always	Below 1 Ω
   2C-22 - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block Assembly)

NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK → See step   12
