High Beam Headlight Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
  1. for Canada

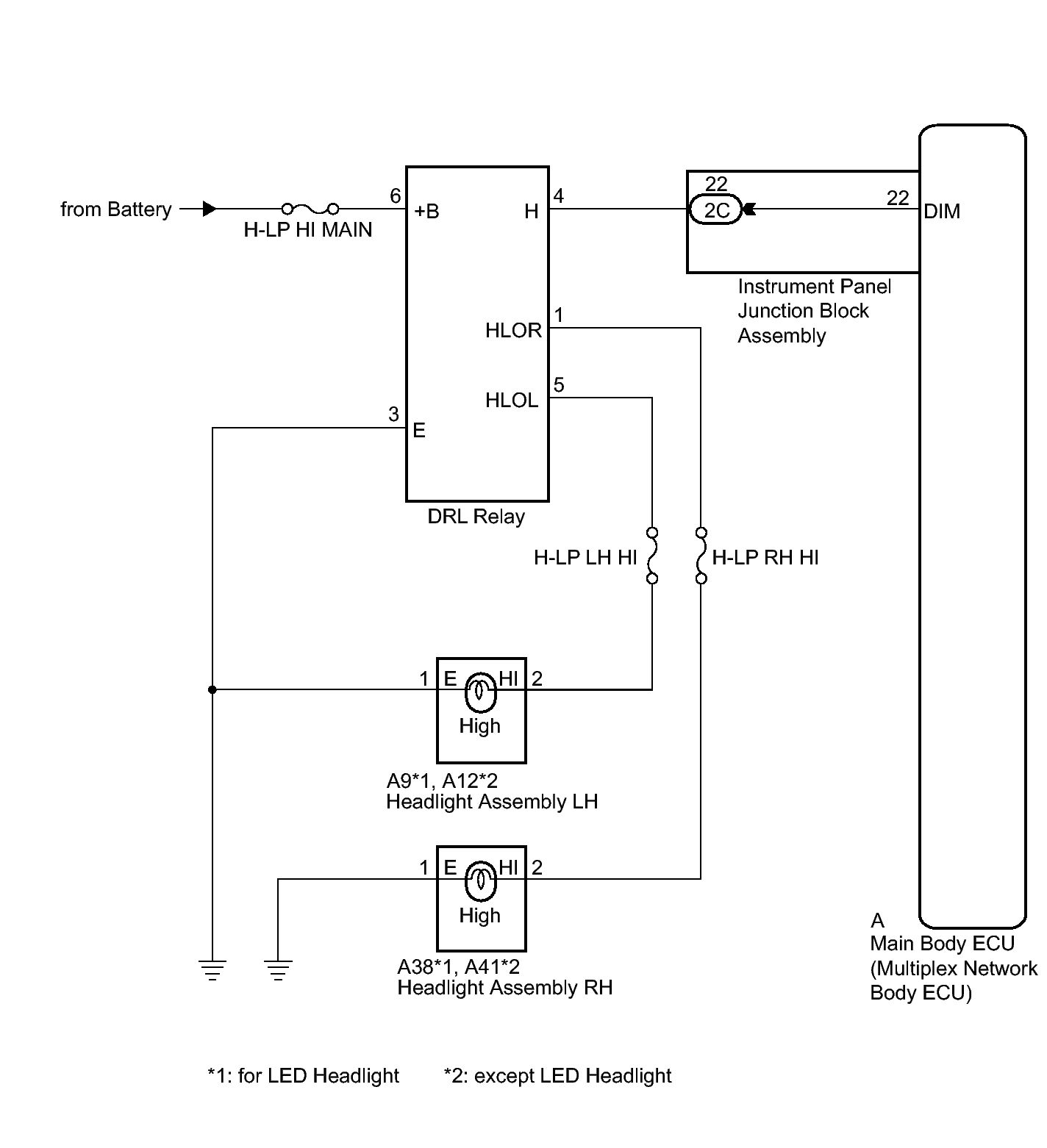

    Fig 1: Identifying High Beam Headlight Circuit Wiring Diagram (1 Of 2)
    GTY338284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. except Canada

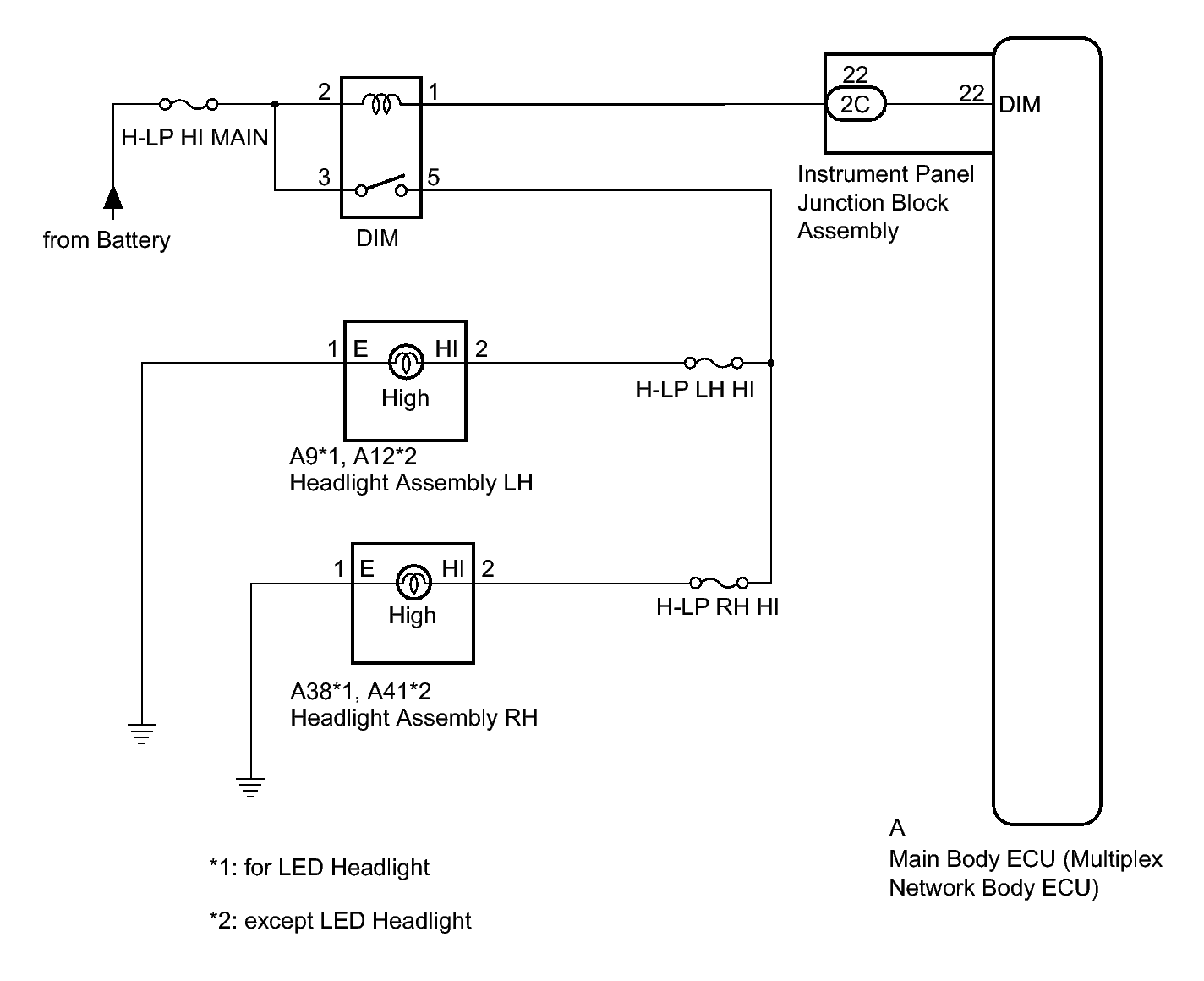

    Fig 2: Identifying High Beam Headlight Circuit Wiring Diagram (2 Of 2)
    GTY343045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
