Taillight Relay Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Active Test.
5. Check that the relay operates.
   MAIN BODY



   Tester Display	Test Part	Control Range	Diagnostic Note
   Taillight Relay	Taillight relay	ON/OFF	-

   OK

   Taillight relay operates. (Taillights illuminate.)

NG → See step   2

OK → See step   4

1. Remove the instrument panel junction block assembly.

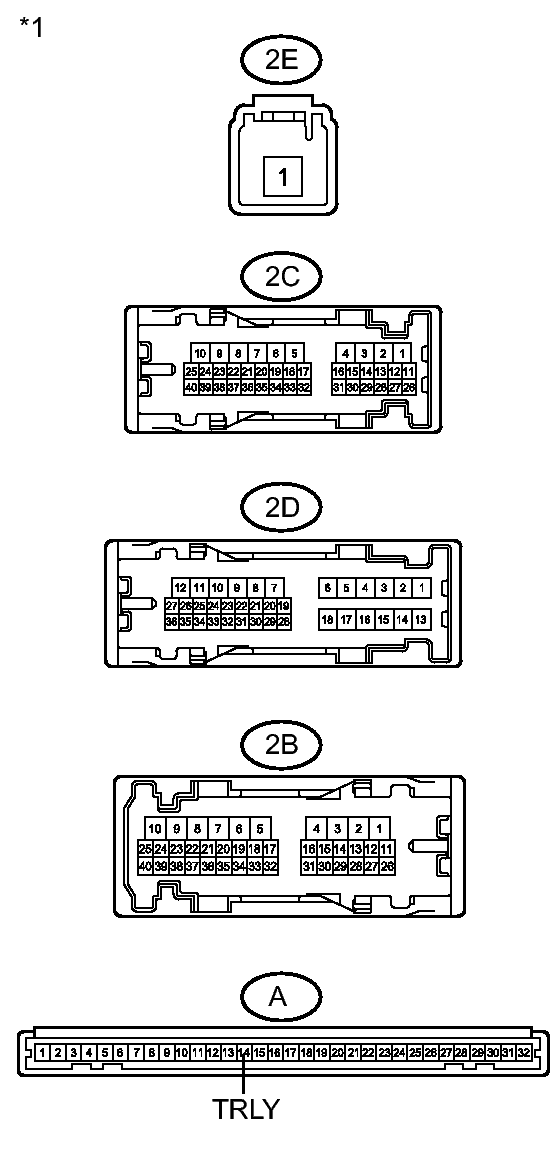

   Fig 1: Identifying Instrument Panel Junction Block Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect a positive (+) lead from the battery to terminal 2E-1.
3. Connect a negative (-) lead from the battery to terminal A-14.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2C-10 - Battery negative	Always	11 to 14 V
   2D-18 - Battery negative	Always	11 to 14 V
   2B-7 - Battery negative	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Instrument Panel Junction Block Assembly)

NG → REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK: Go to next step

1. Disconnect the 2E instrument panel junction block assembly connector.

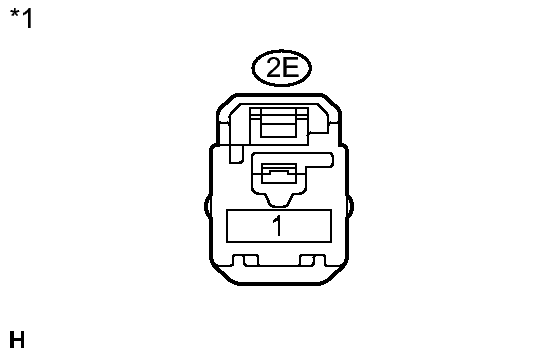

   Fig 2: Identifying 2E Instrument Panel Junction Block Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2E-1 - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Instrument Panel Junction Block Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
