DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

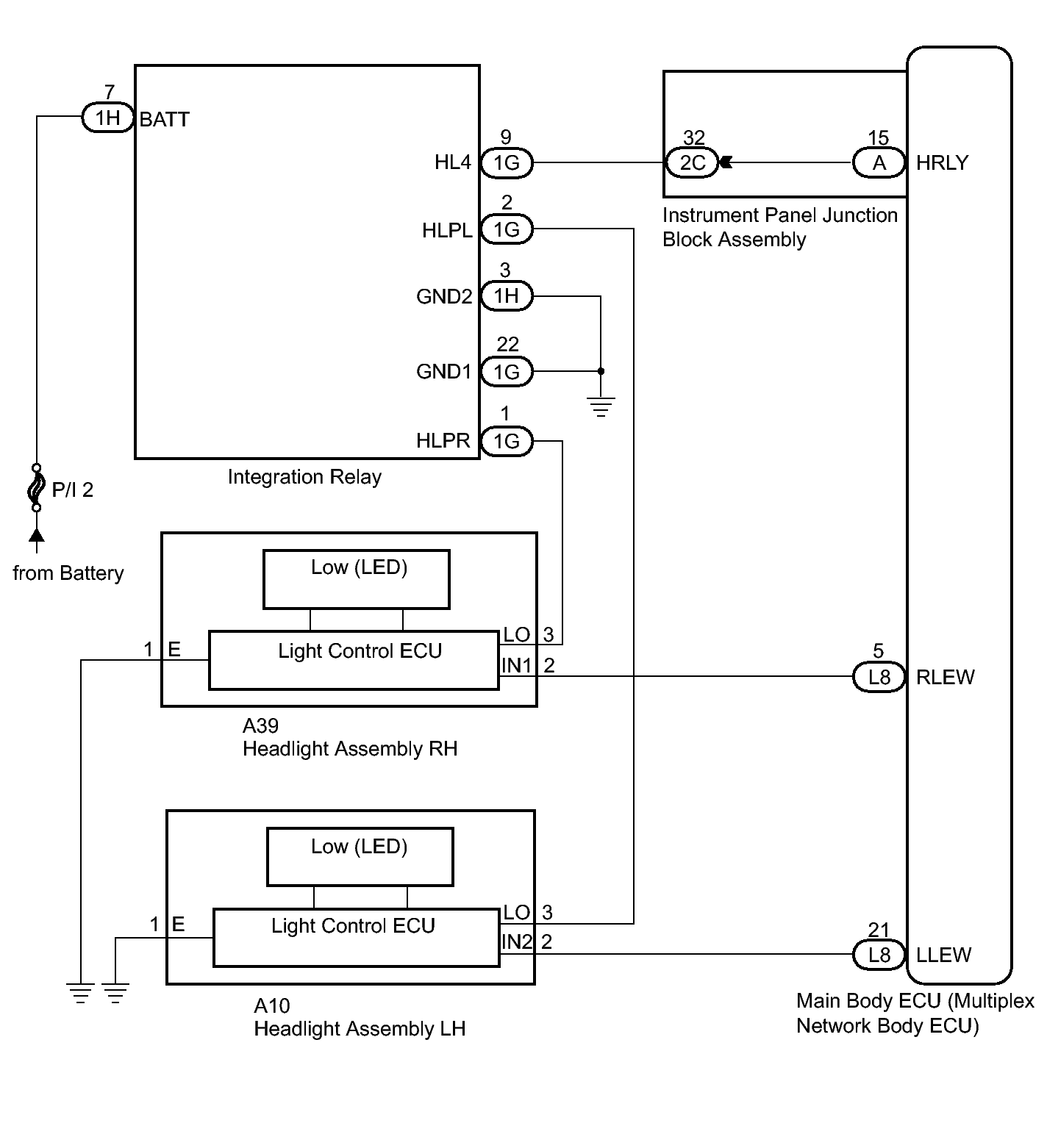

Fig 1: Identifying LED Headlight Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
