System Diagram

WARNING: This page is about a different variant/trim than selected.

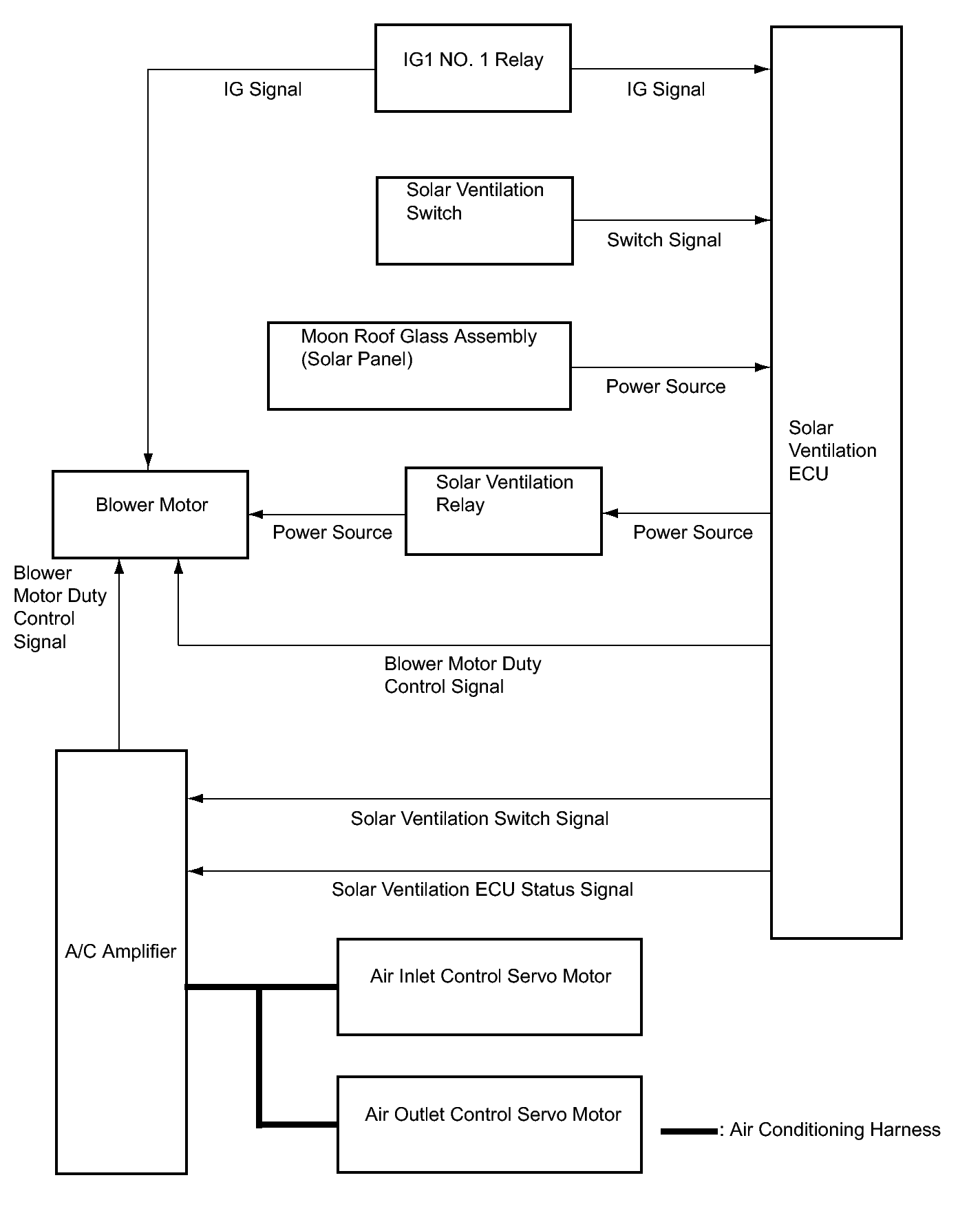

Fig 1: Solar Ventilation System Diagram
GTY334076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
