RELAY (w/ Headlight Cleaner System): Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE RADIATOR SUPPORT OPENING COVER . Refer to REMOVAL - Step 1
REMOVE FRONT BUMPER ASSEMBLY . Refer to REMOVAL - Step 2
REMOVE INLET AIR CLEANER ASSEMBLY . Refer to REMOVAL - Step 31
REMOVE HEADLIGHT CLEANER CONTROL RELAY
1. Disengage the clip and separate the washer jar cap of the washer jar assembly.

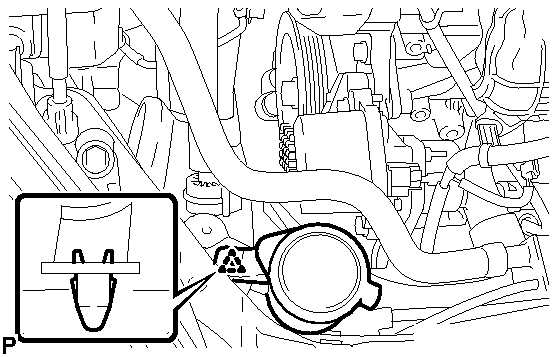

  Fig 1: Locating Washer Jar Cap Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.

  Fig 2: Locating Washer Jar Connectors, Clamp And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the clamp.
4. Remove the 2 bolts.
5. Disengage the hose clamp.

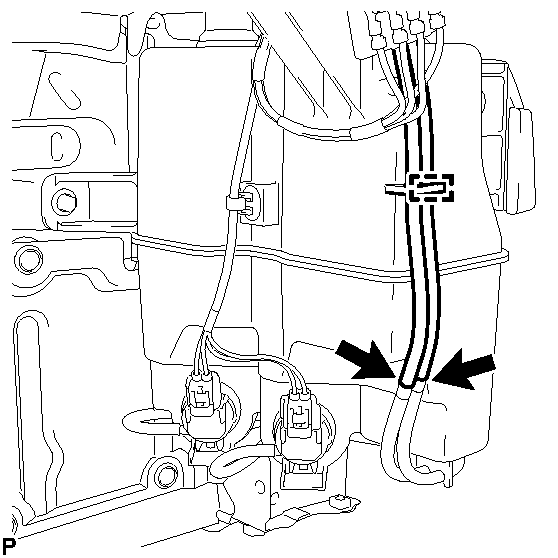

  Fig 3: Locating Washer Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disconnect the 2 washer hoses, and drain the washer fluid.
  HINT:

  Use a container to collect the washer fluid.
7. Disconnect the 2 connectors.

  Fig 4: Locating Washer Jar Connectors And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Disengage the clamp.
9. Remove the bolt and the washer jar assembly.
10. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.

  Fig 5: Locating Headlight Cleaner Control Relay Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
