Sub Radiator: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL RADIATOR ASSEMBLY
1. Install the radiator assembly to the condenser assembly with the 4 bolts.

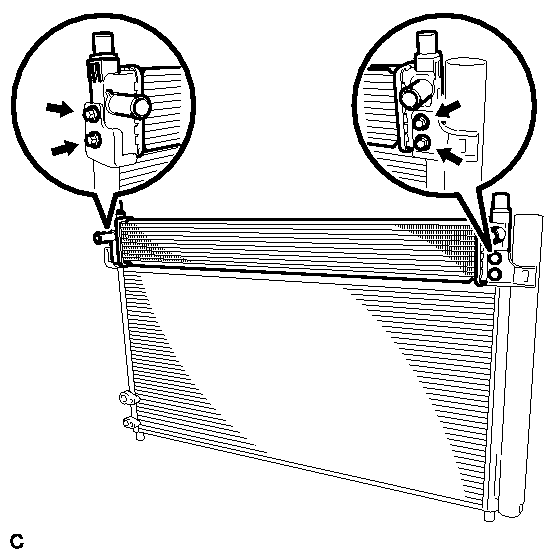

  Fig 1: Identifying Radiator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
INSTALL CONDENSER WITH RECEIVER ASSEMBLY
HINT:

Refer to INSTALLATION .
