Driving Support Ecu: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work. Refer to PRECAUTION .
- REMOVE REAR NO. 3 FLOOR BOARD . Refer to REMOVAL - Step 2
- REMOVE DECK FLOOR BOX RH . Refer to REMOVAL - Step 2
- REMOVE REAR NO. 3 FLOOR BOARD UPPER PLATE . Refer to REMOVAL - Step 3
- DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 21
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to REMOVAL - Step 22
- REMOVE ECU INTEGRATION BOX RH . Refer to REMOVAL - Step 9
- REMOVE DRIVING SUPPORT ECU

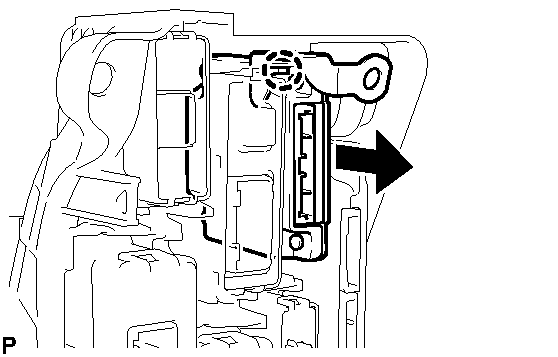

- Disengage the claw and remove the driving support ECU.
