Plug-In Charge Control Ecu: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

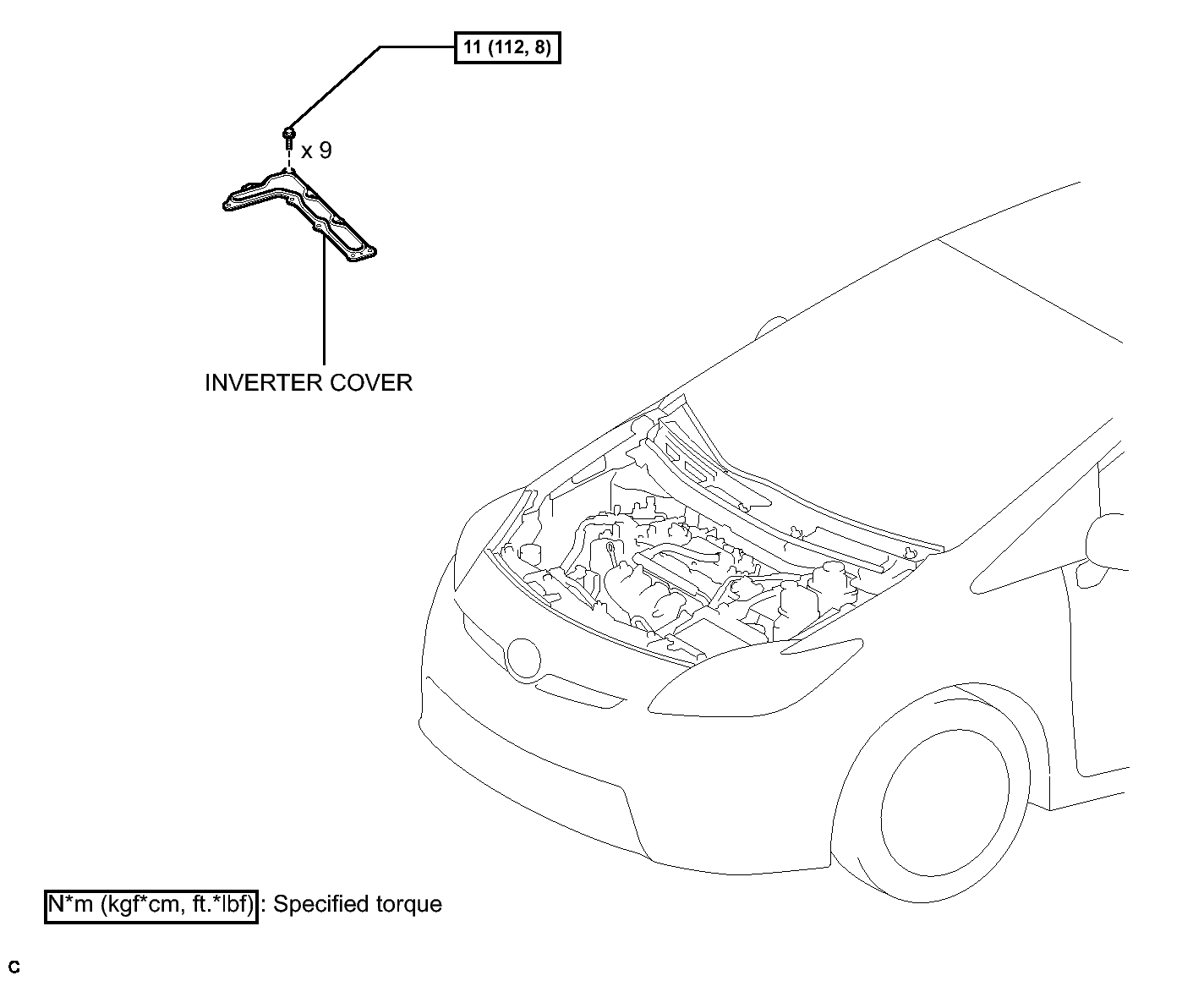

Fig 1: Identifying Plug-In Charge Control ECU Replacement Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

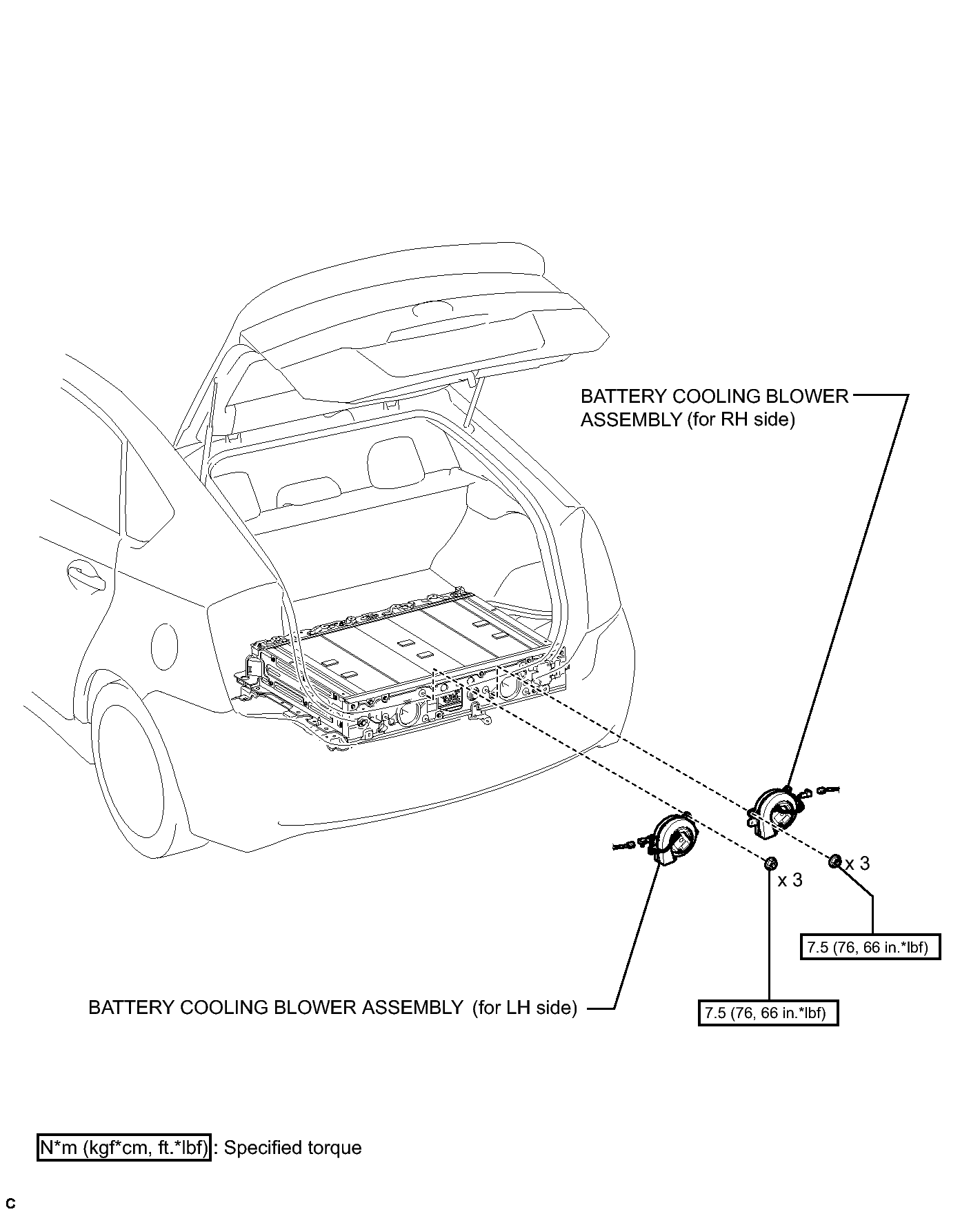

Fig 1: Identifying Plug-In Charge Control ECU Replacement Components With Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

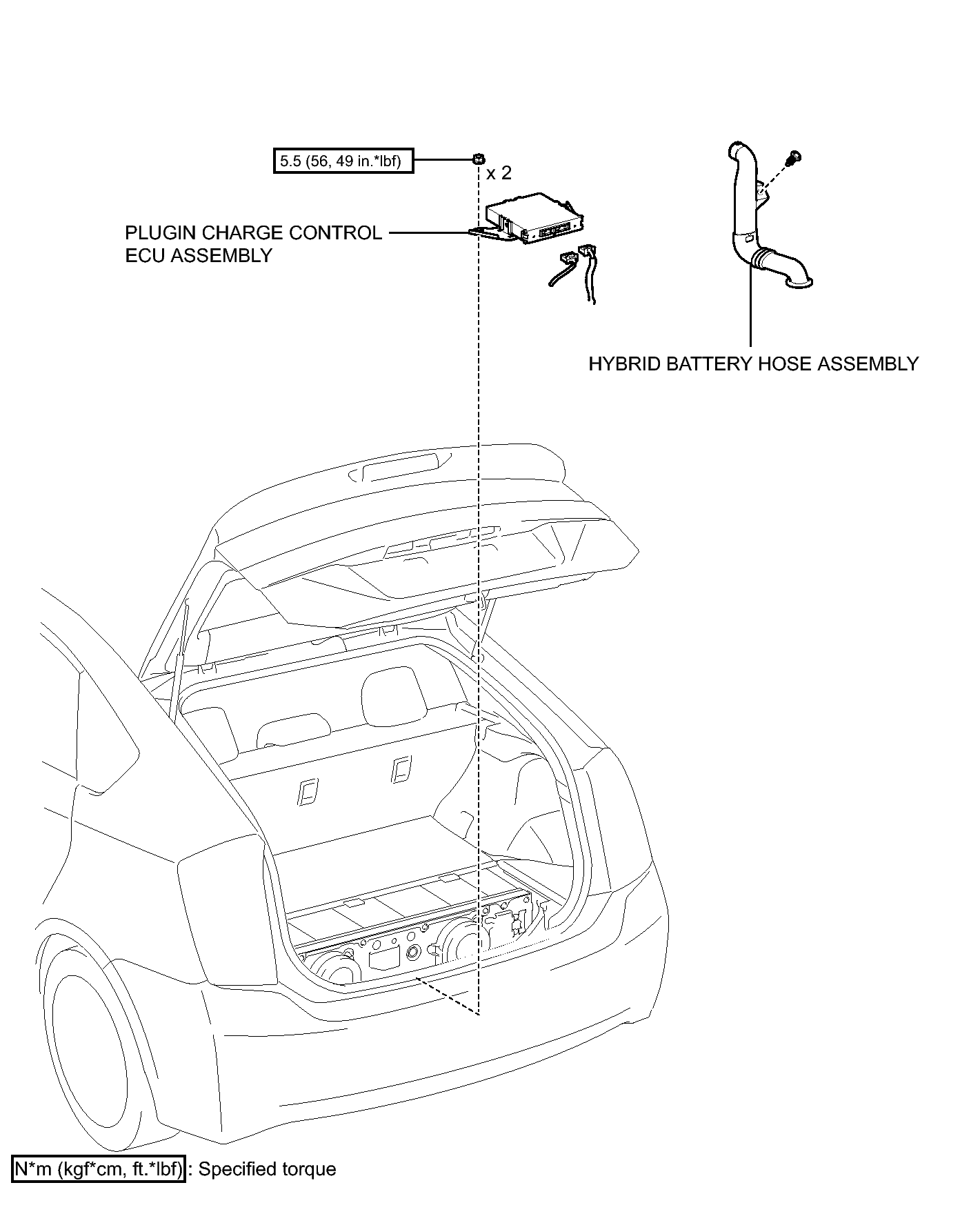

Fig 1: Identifying Plug-In Charge Control ECU Replacement Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

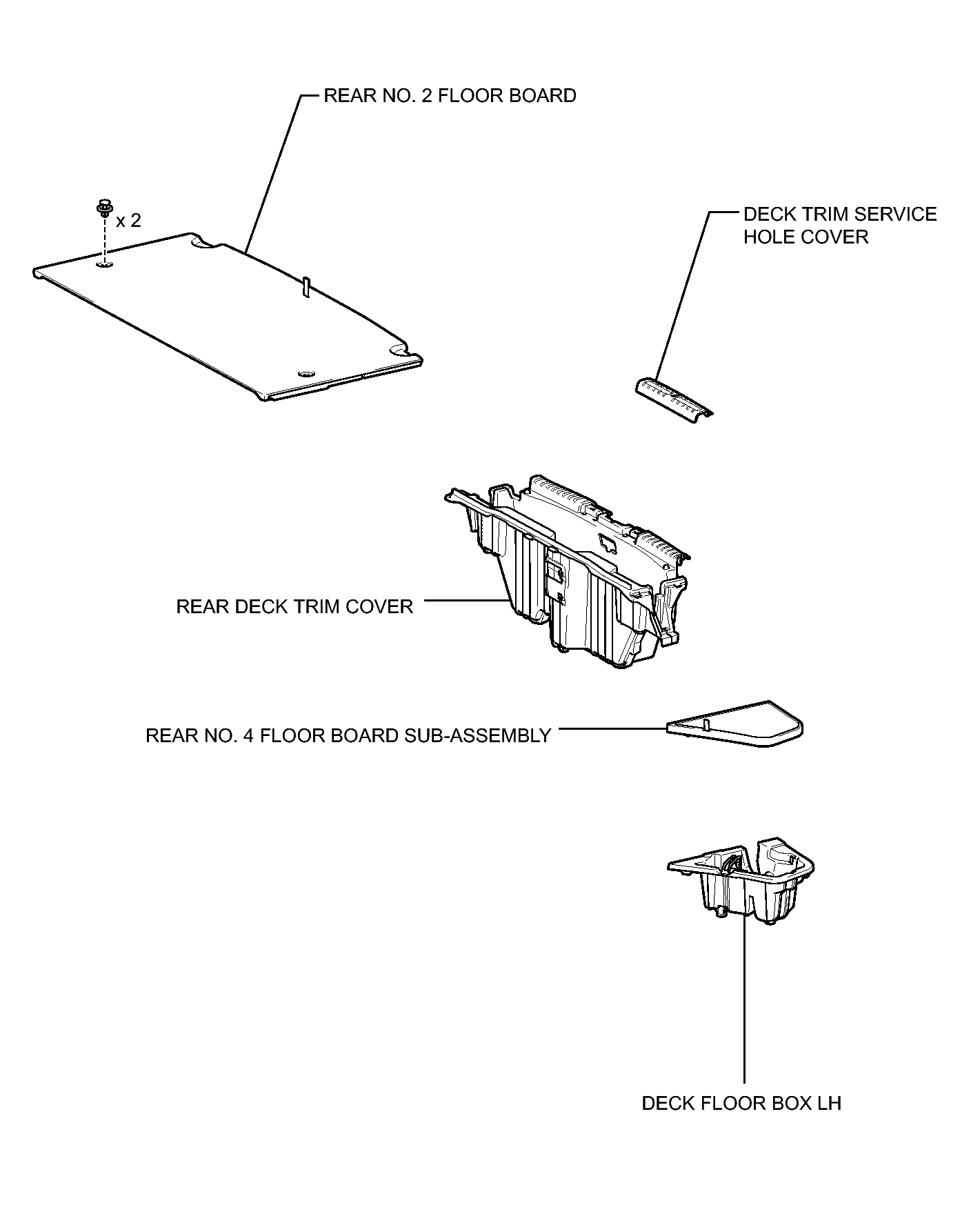

Fig 1: Identifying Plug-In Charge Control ECU Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Plug-In Charge Control ECU Replacement Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
