INSTALL SERVICE PLUG GRIP
WARNING:
Wear insulating gloves.
NOTE:
- Before connecting the service plug, check that no parts and tools are left in the vehicle and that the high voltage terminals and connectors are connected securely.
- Connect the auxiliary battery on the same day of installing the service plug grip to allow the battery cell voltage equalization function of the battery smart unit to operate.
1. Wear insulated gloves and install the service plug grip in the order shown in the illustration.

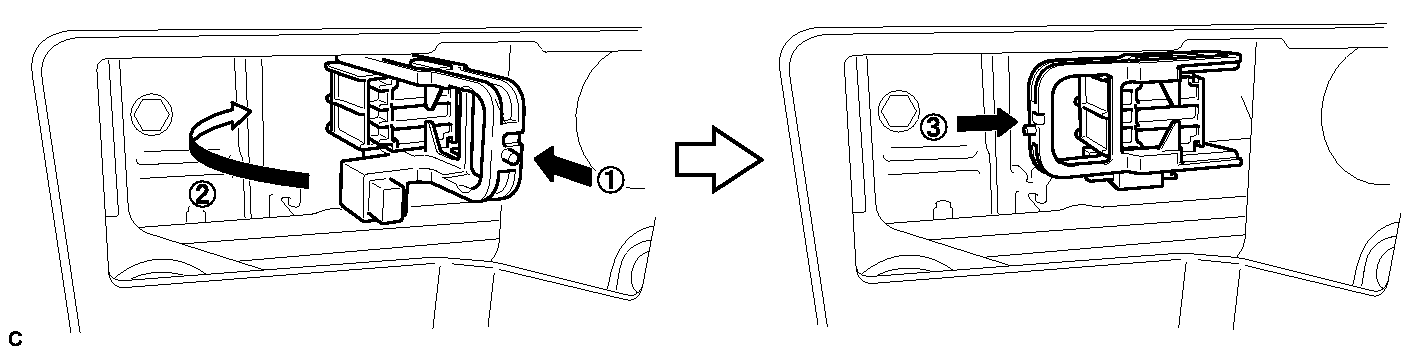

  Fig 1: Installing Service Plug Grip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rotate the handle of the service plug grip 90° toward the battery and slide it in the direction shown by the arrow until a click sound is heard.
INSTALL DECK TRIM SERVICE HOLE COVER
1. Install the deck trim service hole cover with the 2 claws and 2 clips.
CONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 54
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
