Oil Pressure Switch: Installation: Installation

1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

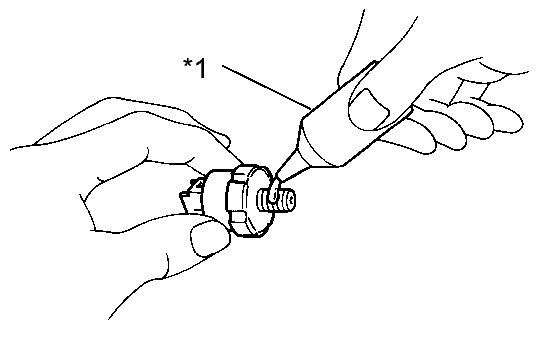

   Fig 1: Applying Adhesive To Threads Of Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

2. Using a 24 mm deep socket wrench, install the oil pressure switch.
   Fig 2: Installing Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

   NOTE:

   Do not start the engine for at least 1 hour after installation.

3. Connect the oil pressure switch connector.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
