Vacuum Sensor: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

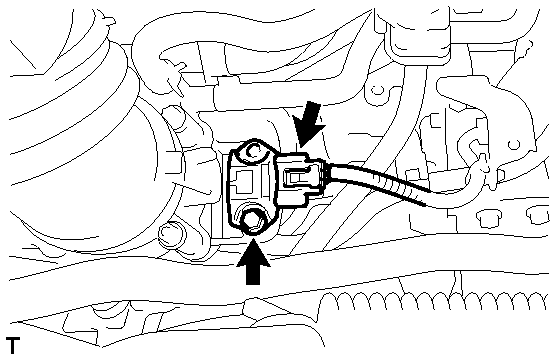

- INSTALL MANIFOLD ABSOLUTE PRESSURE SENSOR
- Install the manifold absolute pressure sensor with the bolt.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
- Connect the connector.
- Install the manifold absolute pressure sensor with the bolt.
- INSTALL AIR CLEANER CASE . Refer to INSTALLATION - Step 3
- INSTALL INLET AIR CLEANER ASSEMBLY . Refer to INSTALLATION - Step 70
- INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
- INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 99
