Solar Sensor: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
Refer to REMOVAL
REMOVE SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR)
1. Disconnect the connector.

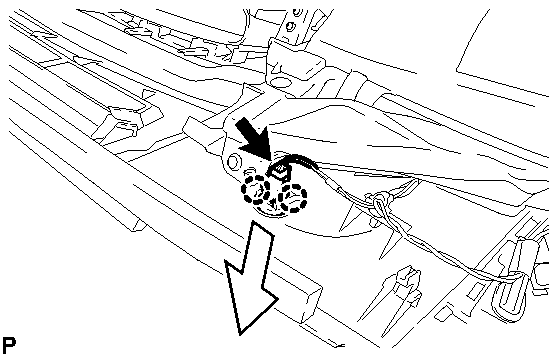

  Fig 1: Identifying Solar Sensor & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and remove the solar sensor (automatic light control sensor) as shown in the illustration.
