INSTALL AIR FUEL RATIO SENSOR
1. Using SST, install the air fuel ratio sensor.

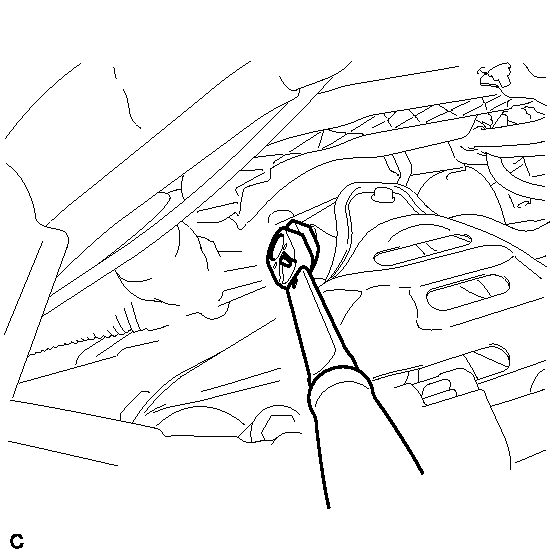

  Fig 1: Identifying SST & Fuel Ratio Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
  without SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.) and a torque wrench with a fulcrum length of 260 mm (10.2 in.). Refer to PRECAUTION .
  - The "with SST" torque value is effective when SST is parallel to the torque wrench.
2. Connect the air fuel ratio sensor connector and clamp.

  Fig 2: Identifying Air Fuel Ratio Sensor, Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 99
INSPECT FOR EXHAUST GAS LEAK
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 16
INSTALL COWL BODY MOUNTING REINFORCEMENT LH . Refer to INSTALLATION - Step 17
INSTALL WINDSHIELD WIPER MOTOR AND LINK
1. Install the windshield wiper motor and link. Refer to INSTALLATION .
