System Diagram

WARNING: This page is about a different variant/trim than selected.

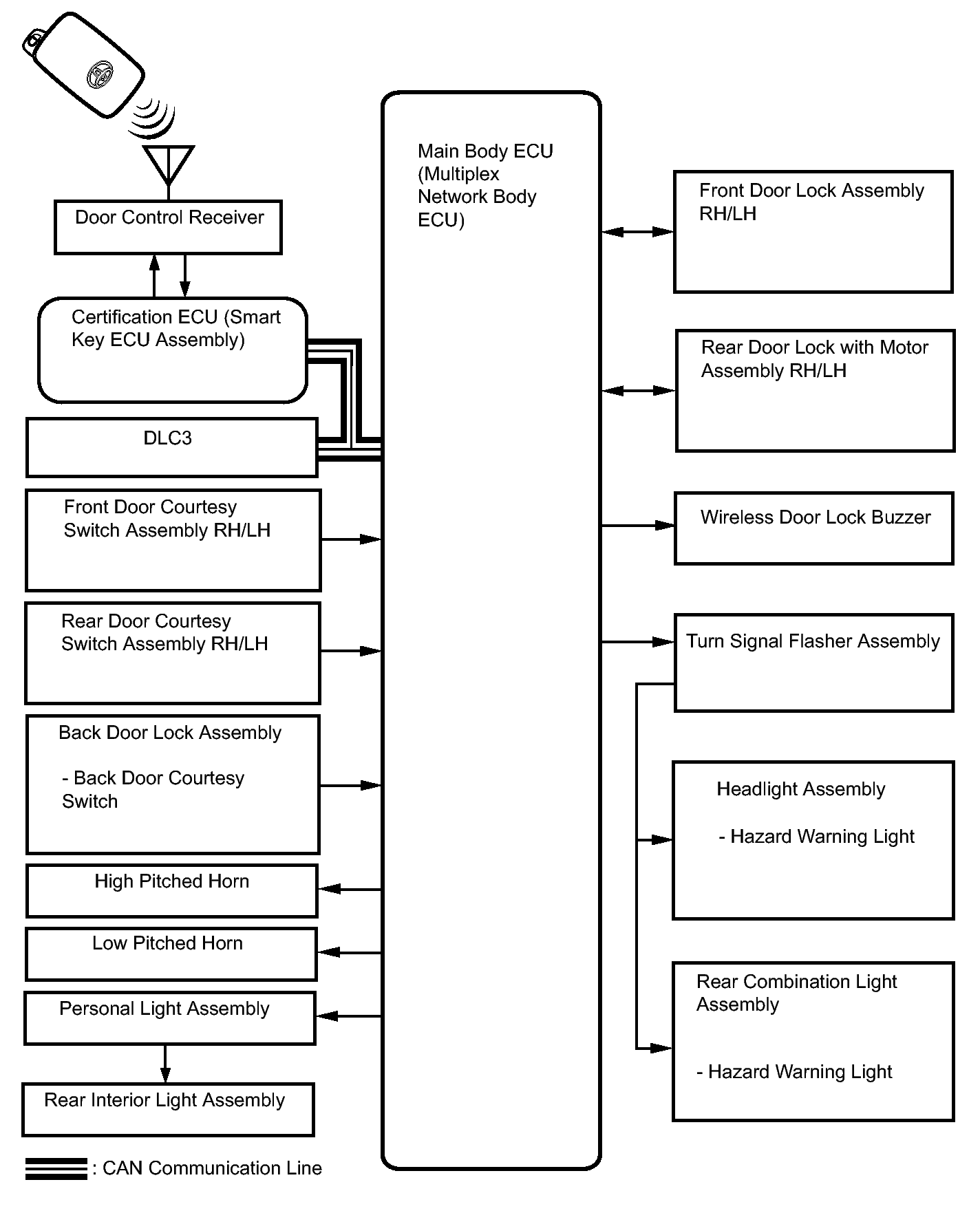

Fig 1: Identifying Wireless Door Lock Control System Diagram
GTY325227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU
(Smart key ECU assembly)
Main body ECU
(Multiplex network body ECU)
Wireless door lock signal CAN
