Stereo Jack Adapter Assembly: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE REAR CONSOLE BOX CUP HOLDER . Refer to REMOVAL - Step 1
REMOVE CONSOLE BOX CARPET . Refer to REMOVAL - Step 3
REMOVE REAR CONSOLE BOX ASSEMBLY . Refer to REMOVAL - Step 4
REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY
1. Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly.

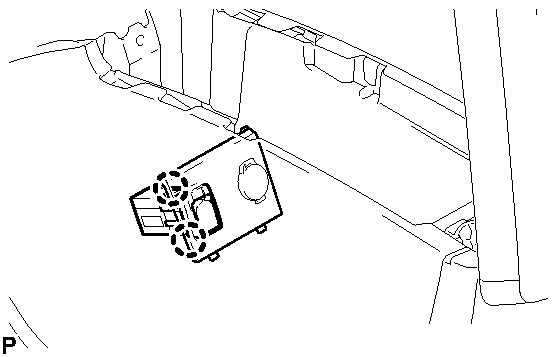

  Fig 1: Identifying Stereo Jack Adapter Assembly & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
