DTC U1002: Lost Communication with Gateway Module (Power Management2): Wiring Diagram

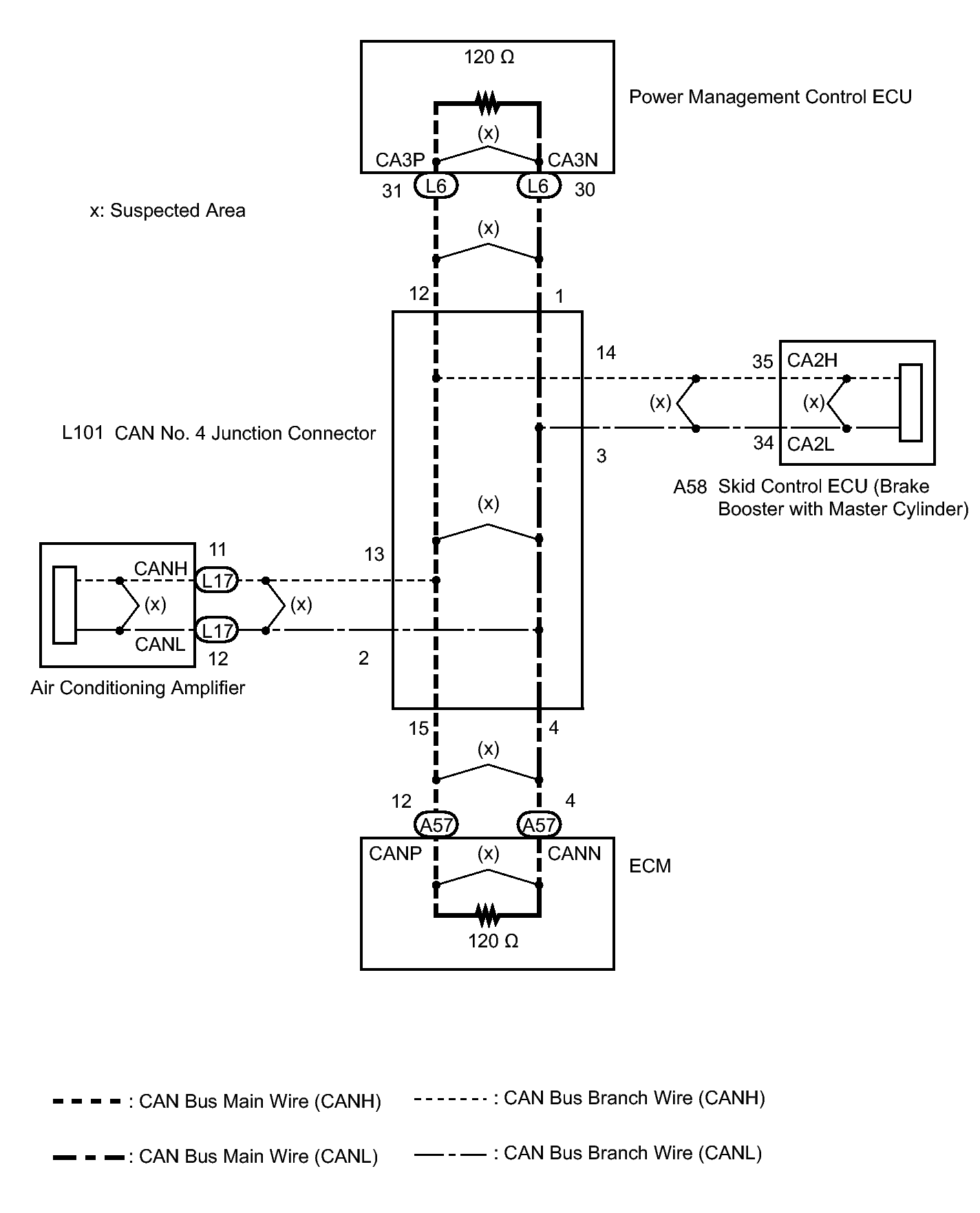

Fig 1: View Of DTC U1002 Wiring Diagram
GTY219345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
