Fail-Safe Chart
- Constant speed control mode and vehicle-to-vehicle distance control mode:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.
HINT:
During constant speed control mode, the cruise main indicator light (constant speed control mode) flashes. During vehicle-to-vehicle distance control, the cruise main indicator light (vehicle-to-vehicle distance control mode) flashes.

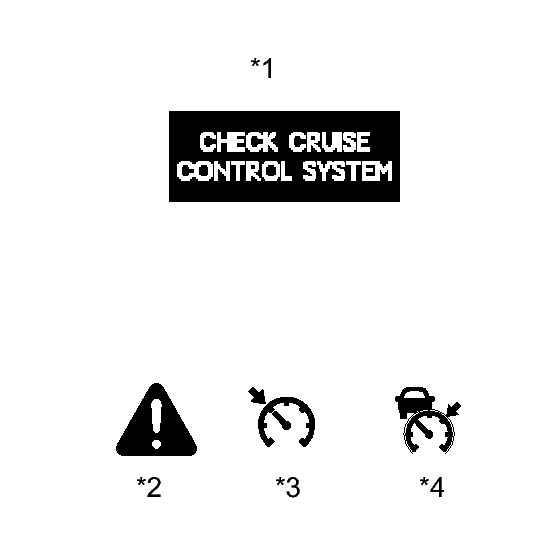

TEXT IN ILLUSTRATION*1 Multi-information Display *2 Master Warning Light *3 Cruise Main Indicator Light
(Constant speed control mode)*4 Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)Vehicle Condition Auto Cancel Condition Fail-safe Deactivation Condition - Cruise main indicator light blinks
- Master warning light comes on
- "CHECK CRUISE SYSTEM" is displayed
- "Pong" warning sound is heard
Millimeter wave radar sensor or driving support ECU country specification information malfunction Turn cruise control main switch (ON-OFF button) on again - Vehicle-to-vehicle distance control mode:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.

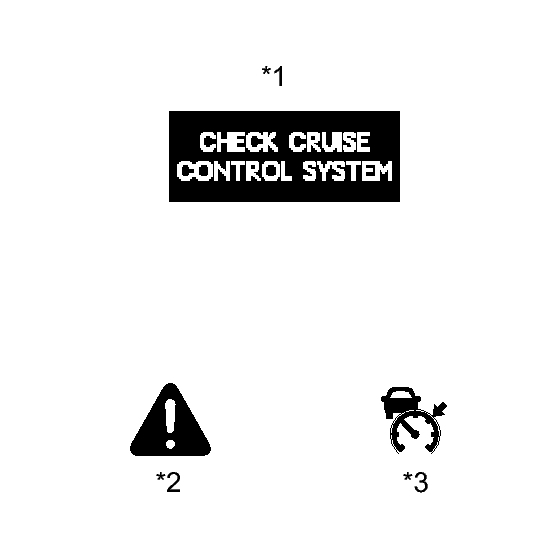

TEXT IN ILLUSTRATION*1 Multi-information Display *2 Master Warning Light *3 Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)Vehicle Condition Auto Cancel Condition Fail-safe Deactivation Condition - Cruise main indicator light blinks
- Master warning light comes on
- "CHECK CRUISE SYSTEM" is displayed
- "Pong" warning sound is heard
- Open or short in stop light switch circuit
- Problem with vehicle speed signal
- There is problem with millimeter wave radar sensor
- Beam axis of millimeter wave radar sensor deviates
- Other than condition above dynamic radar cruise control system malfunction
- Malfunction in the hybrid vehicle control system
Power switch on (IG) again - Vehicle-to-vehicle distance control mode:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the following conditions are detected while the dynamic radar cruise control system is operating, the system maintains the stored vehicle speed in the ECM and cancels the dynamic radar cruise control operation.

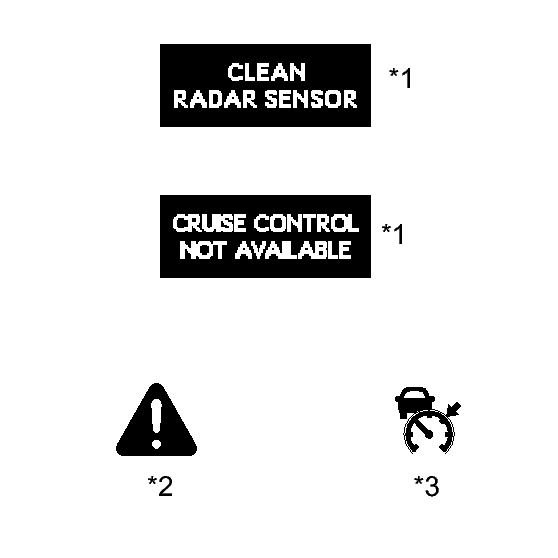

TEXT IN ILLUSTRATION*1 Multi-information Display *2 Master Warning Light *3 Cruise Main Indicator Light
(Vehicle-to-vehicle distance control mode)Vehicle Condition Auto Cancel Condition Fail-safe Deactivation Condition - Master warning light comes on
- Cruise main indicator light blinks
- "CLEAN RADAR SENSOR" is displayed
- "Pong" warning sound is heard
There is dirt on millimeter wave radar sensor Recover from condition on left (RESUME operation is possible after recovery) - Cruise main indicator light blinks
- Master warning light comes on
- "CRUISE NOT AVAILABLE" is displayed
- "Pong" warning sound is heard
- Wiper switch is in HI position
- Millimeter wave radar sensor sensitivity is reduced because of bad weather such as rain, fog, snow, and sandstorms
- Recover from condition on left (RESUME operation is possible after recovery)
- Turn cruise control main switch on again
- Constant speed control mode and vehicle-to-vehicle distance control mode:
If the following conditions are detected while the dynamic radar cruise control system is operating, the system clears the stored vehicle speed and cancels the dynamic radar cruise control operation.
Vehicle Condition Auto Cancel Condition Fail-safe Deactivation Condition Cruise main indicator light goes off - Vehicle speed is lower than low speed limit (approximately 40 km/h (25 mph)) while cruise control is operating
- Constant Speed Control Mode:
Vehicle speed is lower than stored vehicle speed by 16 km/h (10 mph) or more while cruise control is operating
Push the cruise control main switch to + RES
