Stop Light Switch Circuit: Wiring Diagram

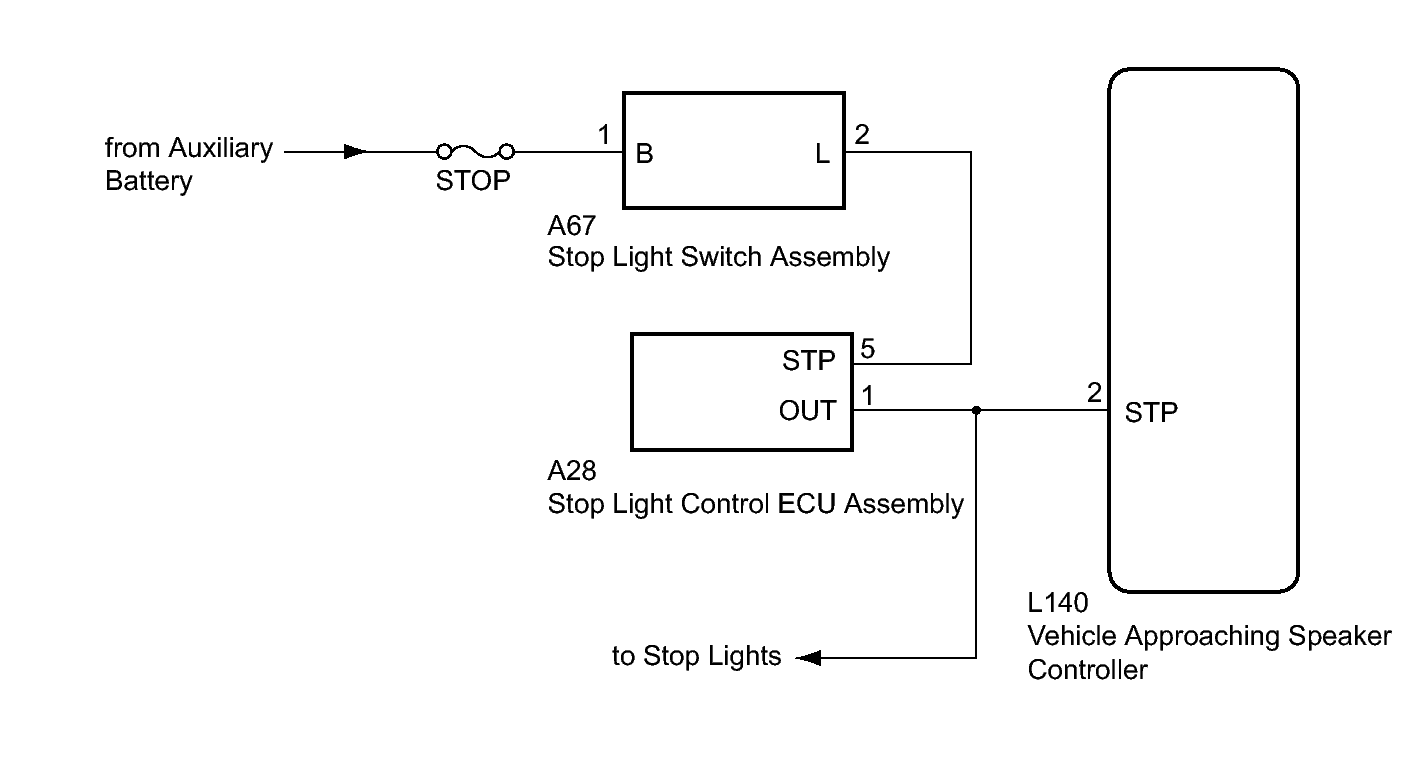

Fig 1: Stop Light Switch Circuit Wiring Diagram
GTY337933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
