AUDIO AND VISUAL SYSTEM (w/ Daytime Running Light)
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

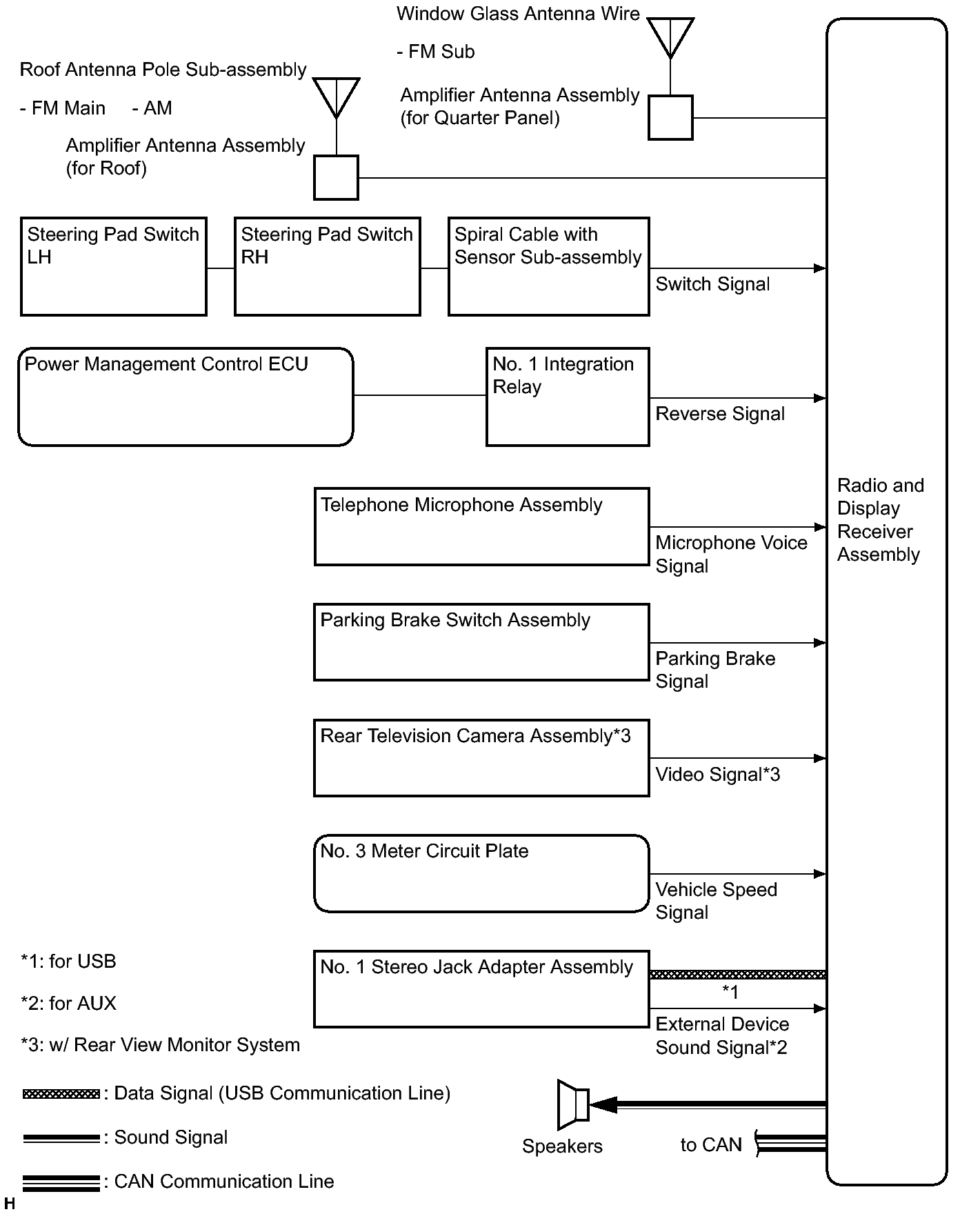

Fig 1: Identifying Audio And Video Systems Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
