Wiper Switch: Installation: Installation

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

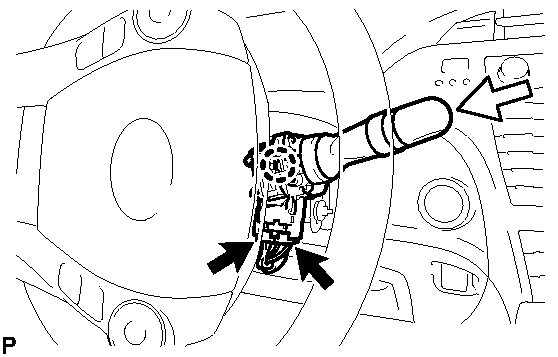

1. Engage the claw and install the windshield wiper switch assembly as shown in the illustration.

  Fig 1: Installing Windshield Wiper Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors.
INSTALL UPPER STEERING COLUMN COVER

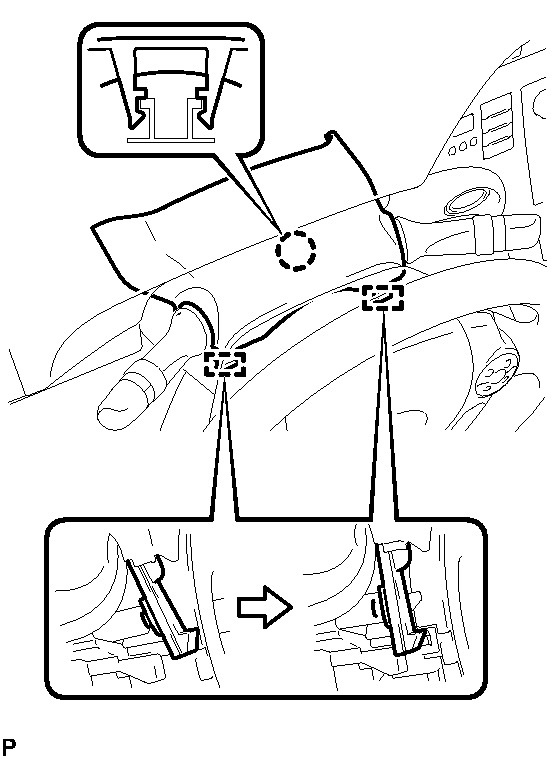

1. Engage the claw and 2 pins to install the upper steering column cover.

  Fig 2: Installing Upper Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER STEERING COLUMN COVER
NOTE:
If the lower steering column cover is installed in the incorrect order, it will not be possible to assemble the lower steering column cover.

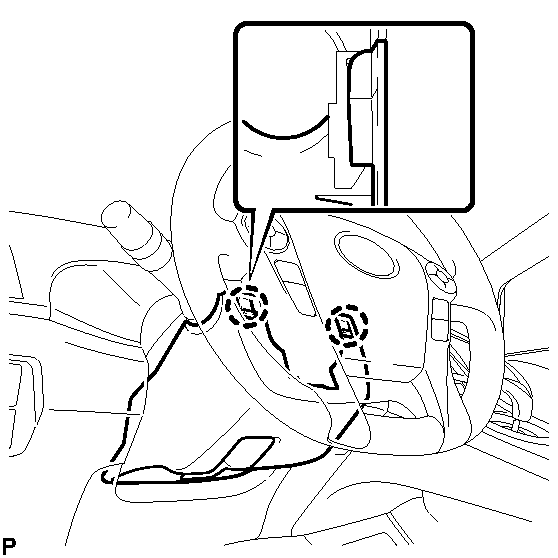

1. Engage the 2 claws to install the lower steering column cover.

  Fig 3: Locating Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

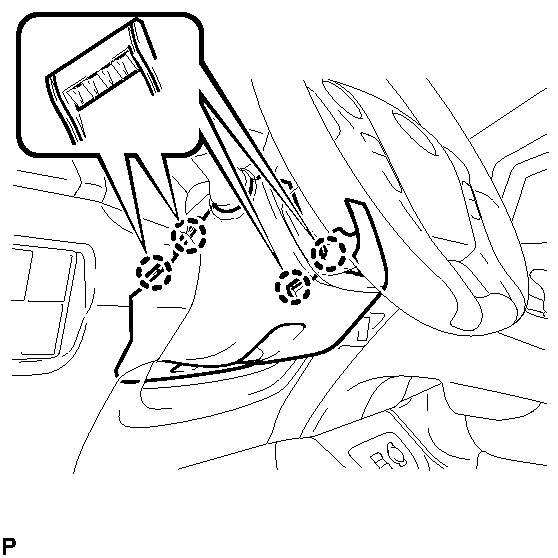

2. Engage the 4 claws.

  Fig 4: Identifying Lower Steering Column Cover And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

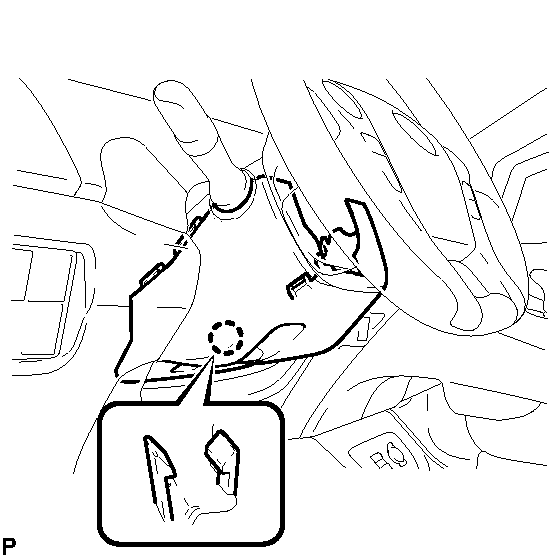

3. Engage the claw.

  Fig 5: Engaging Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Press the area around the claw to engage it.
