DTC C1249/49: Open in Stop Light Switch Circuit: Procedure

1. Check that the stop lights come on when the brake pedal is depressed, and go off when the brake pedal is released.

   OK

   Condition	Illumination Condition
   Brake pedal depressed	ON
   Brake pedal released	OFF

NG → See step   4

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Select the Data List on the Techstream. Refer to DATA LIST / ACTIVE TEST .
   ABS/VSC/TRC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Stop Light SW	Stop light switch / ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released	-

4. Check that the stop light switch display observed on the Techstream changes according to brake pedal operation.

   OK

   The Techstream displays ON or OFF according to brake pedal operation.

NG → See step   7

OK: Go to next step

1. Turn the power switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Turn the power switch on (READY).
4. Depress the brake pedal several times to test the stop light circuit.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTC (C1249/49) is not output	A
   DTC (C1249/49) is output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   8

A → See step   10

1. Check the stop light switch. Refer to ON-VEHICLE INSPECTION .

   OK

   The stop light switch is normal.

NG → See step   11

OK: Go to next step

1. Make sure that there is no looseness at the locking part and the connecting part of the connector.

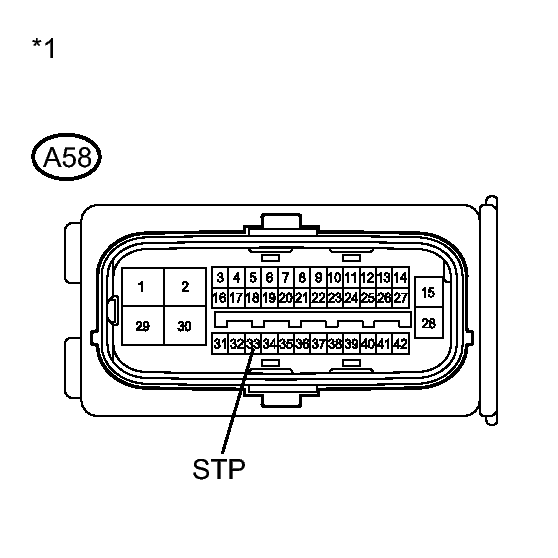

   Fig 1: Identifying Harness And Connector (Skid Control ECU - Stop Light Switch) Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the skid control ECU connector.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A58-33 (STP) - Body ground	Stop light switch ON (Brake pedal depressed)	11 to 14 V
   A58-33 (STP) - Body ground	Stop light switch OFF (Brake pedal released)	Below 1.5 V

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Skid Control ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the skid control ECU connector and the stop light switch connector.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Turn the power switch on (READY).
4. Depress the brake pedal several times to test the stop light circuit.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTC (C1249/49) is not output	A
   DTC (C1249/49) is output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   8

A → See step   9

1. Turn the power switch off.
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the skid control ECU connector and the stop light switch connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A58-33 (STP) - A67-2 (L)	Always	Below 1 Ω

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   8
