Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control: Notes

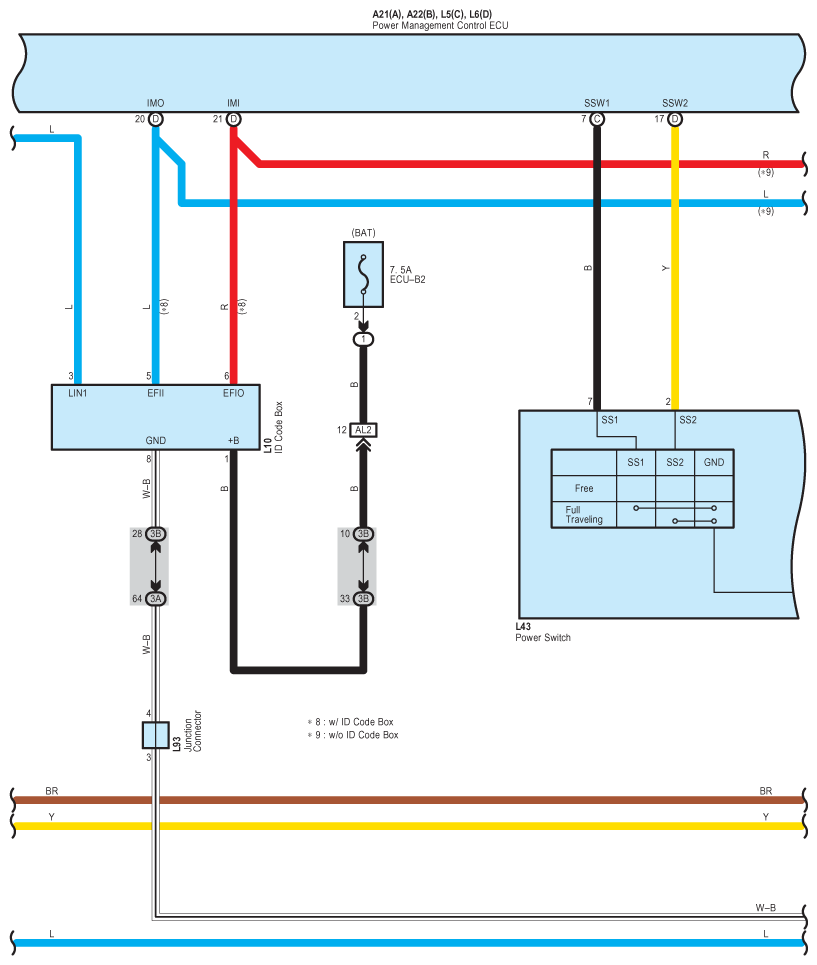

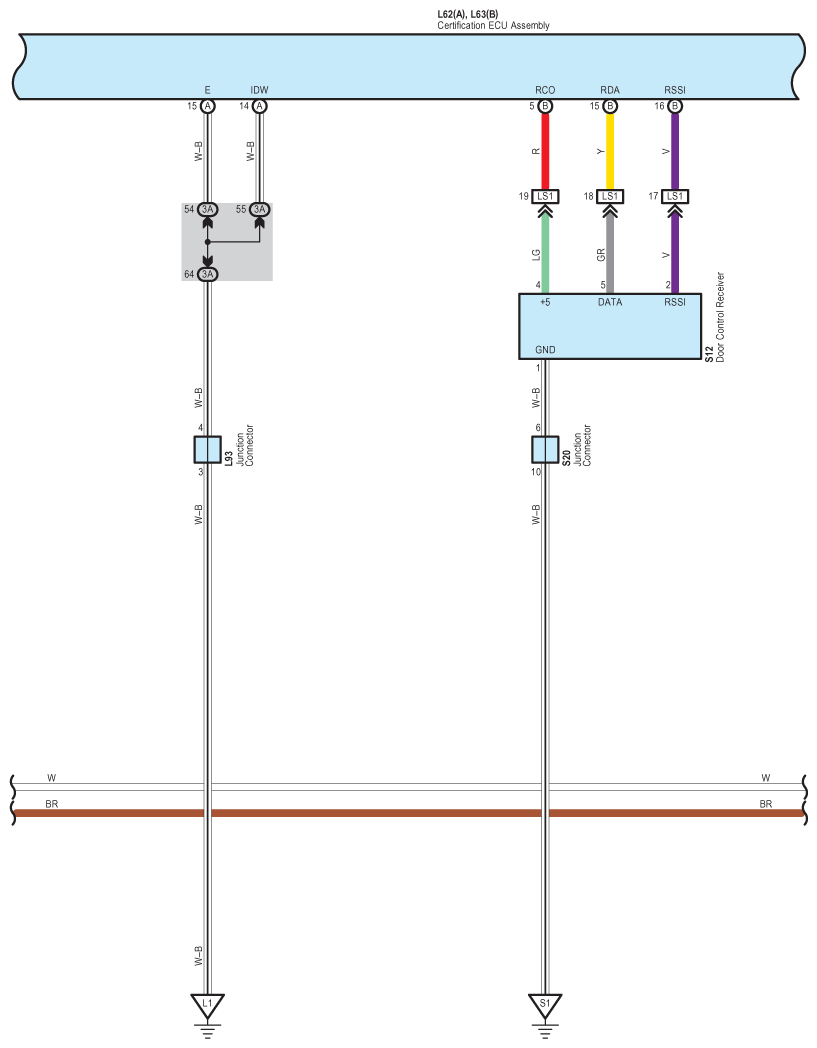

Fig 1: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (1 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

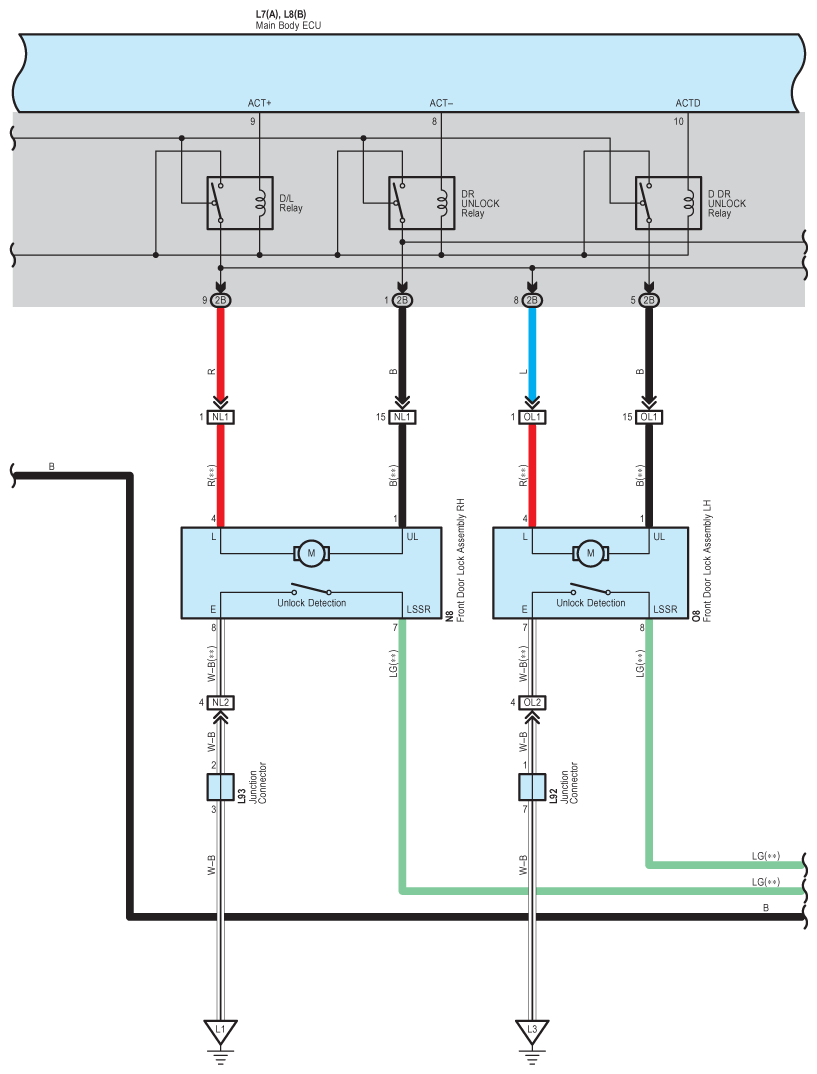

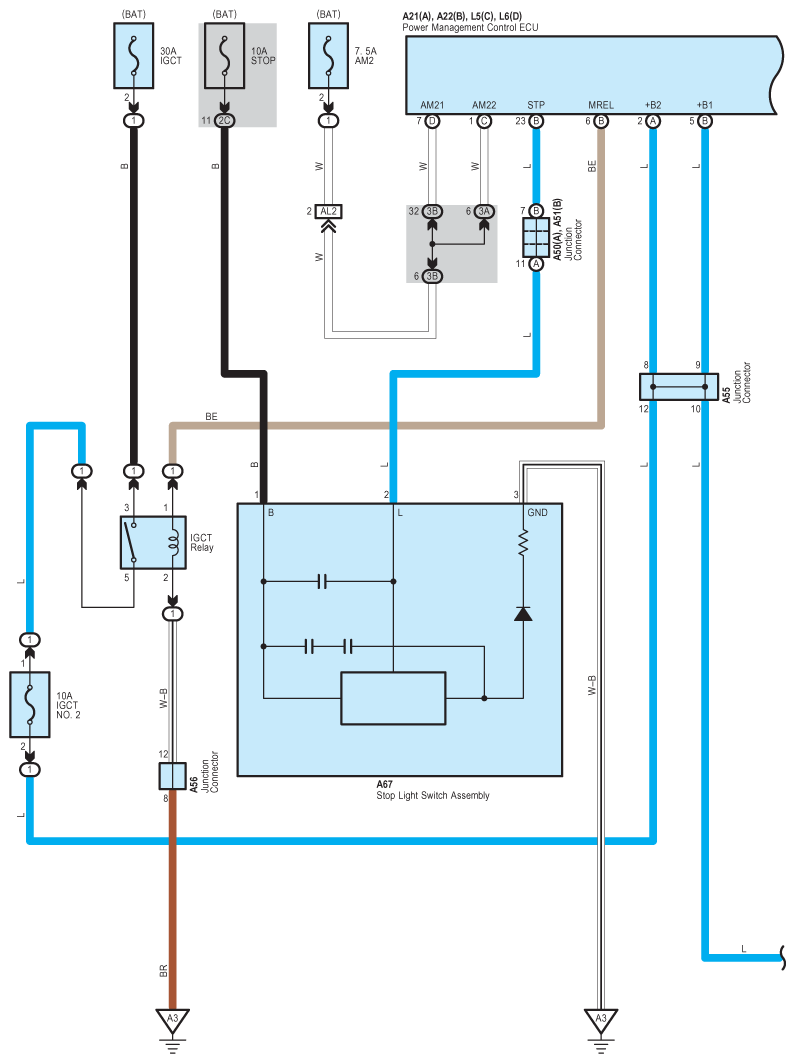

Fig 2: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (2 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

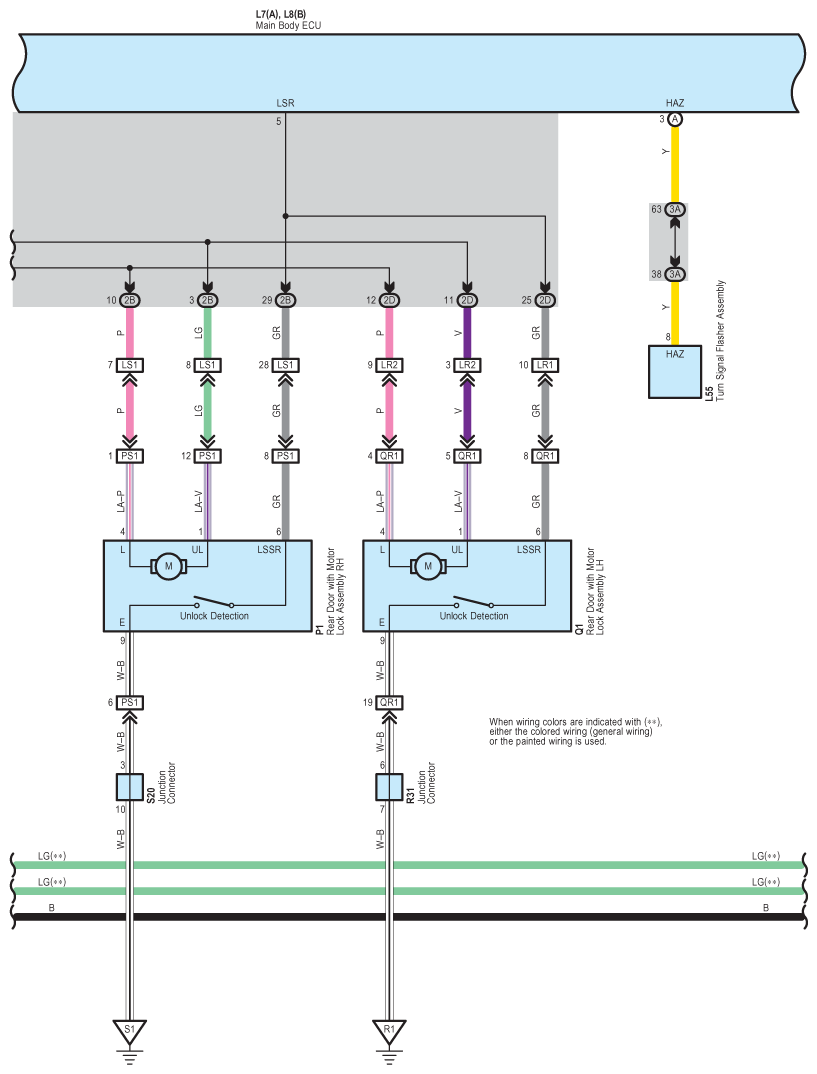

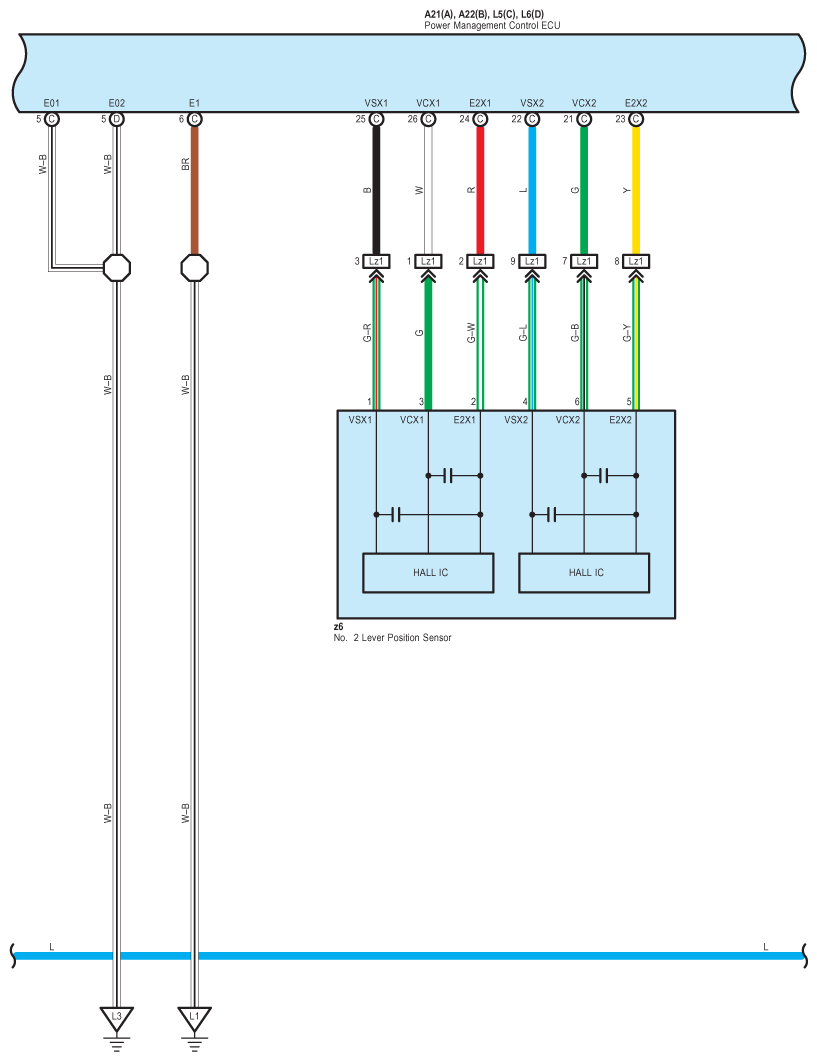

Fig 3: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (3 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

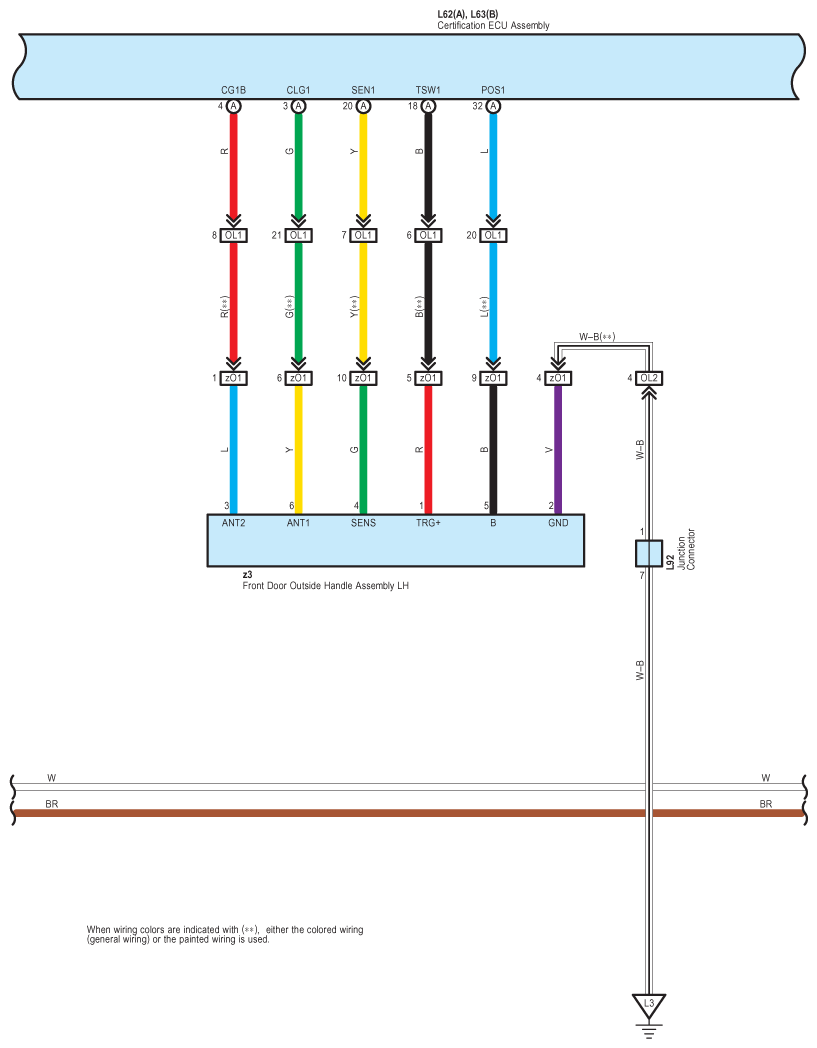

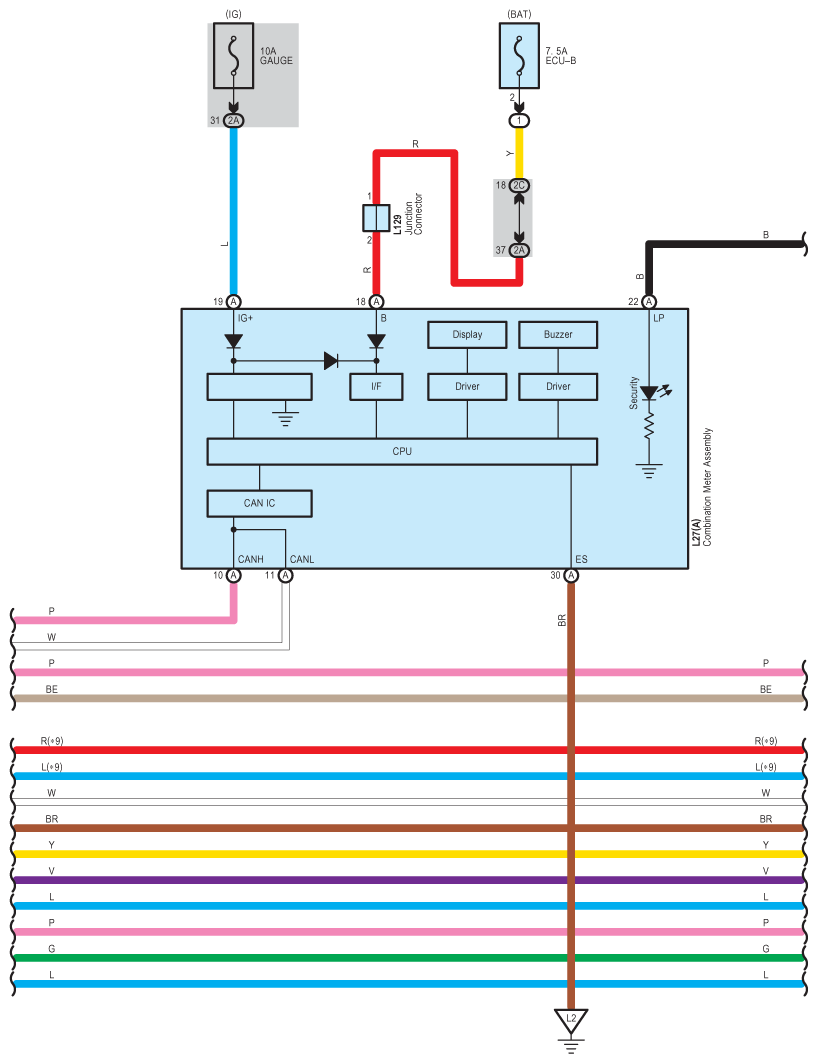

Fig 4: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (4 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

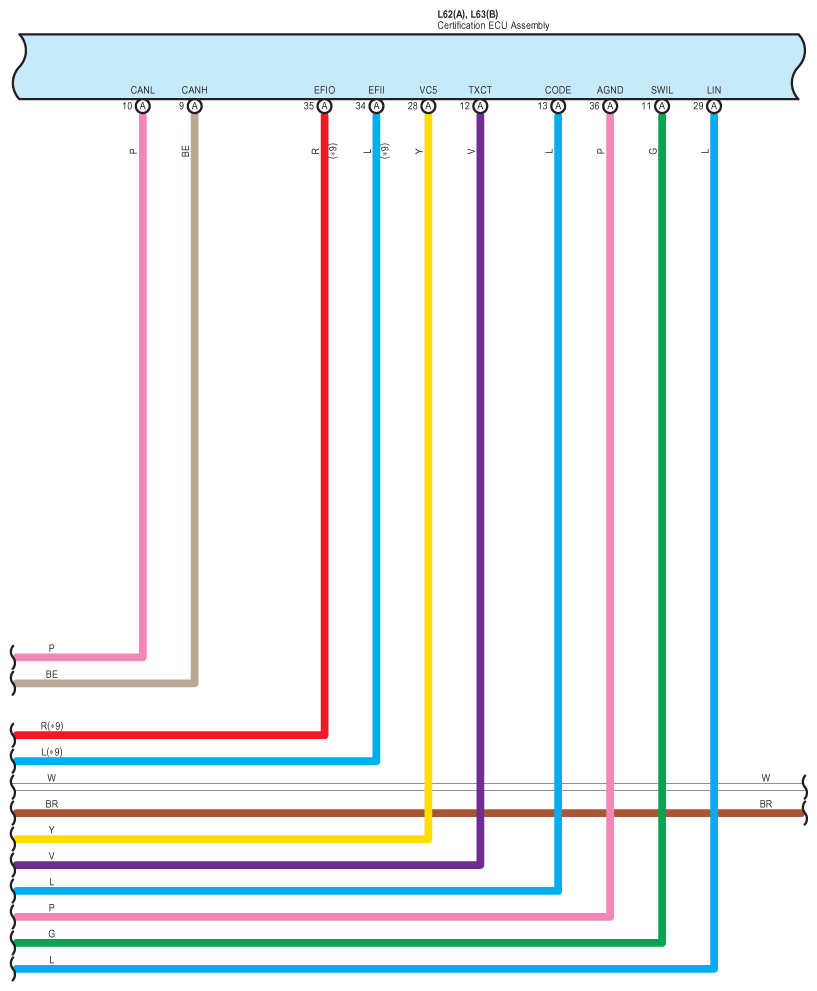

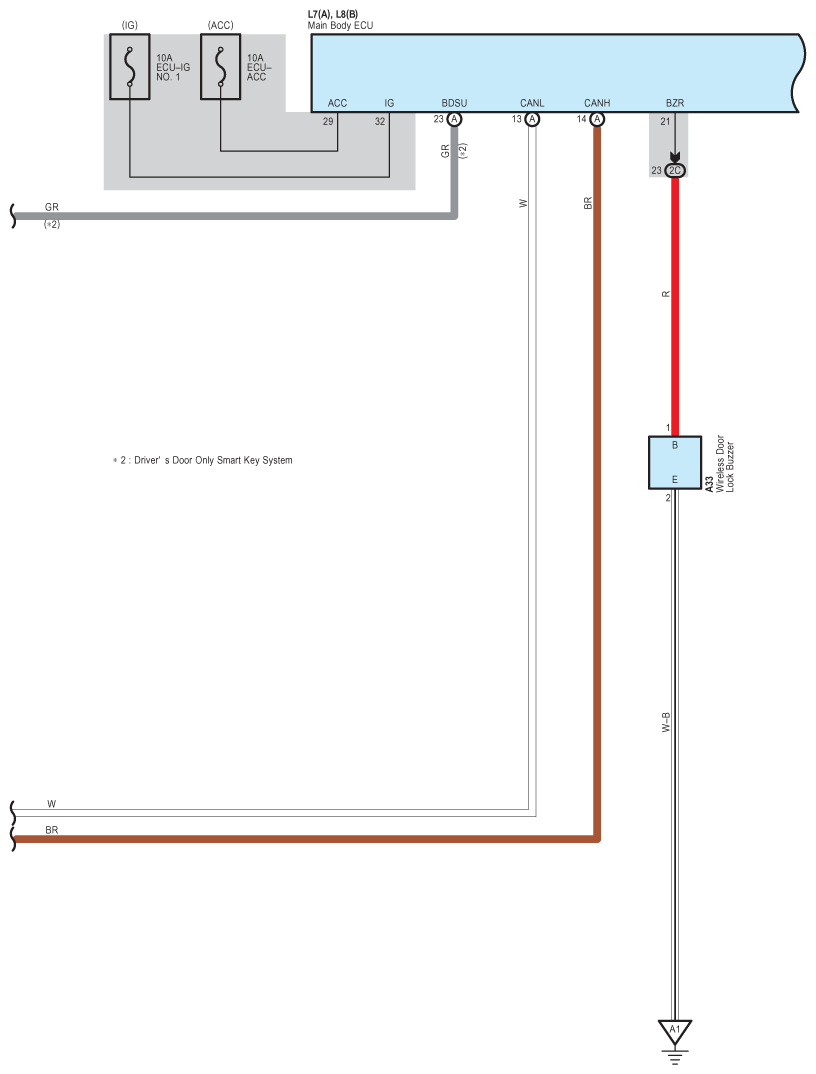

Fig 5: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (5 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

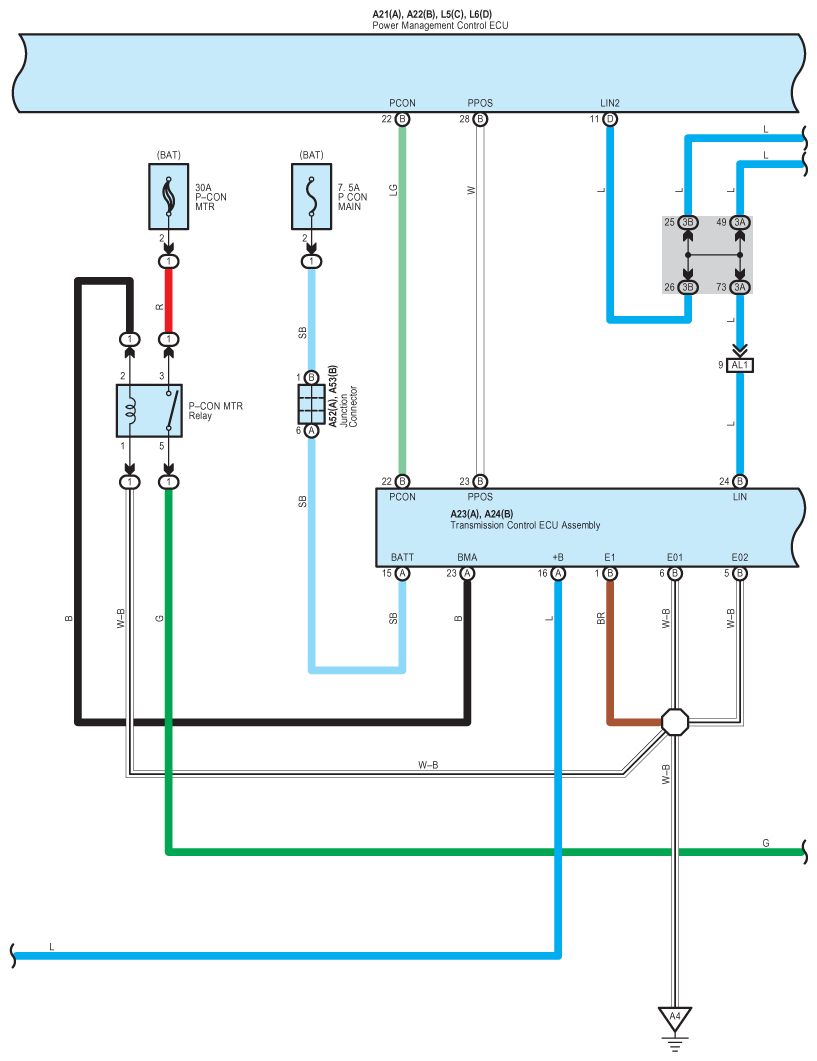

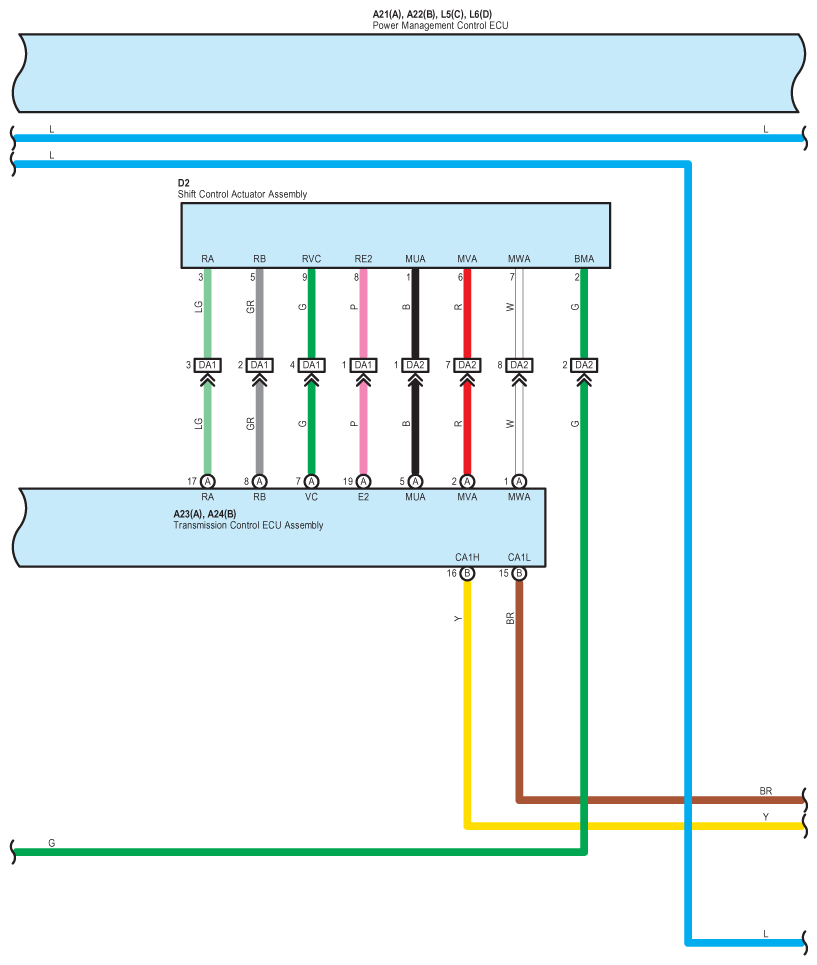

Fig 6: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (6 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

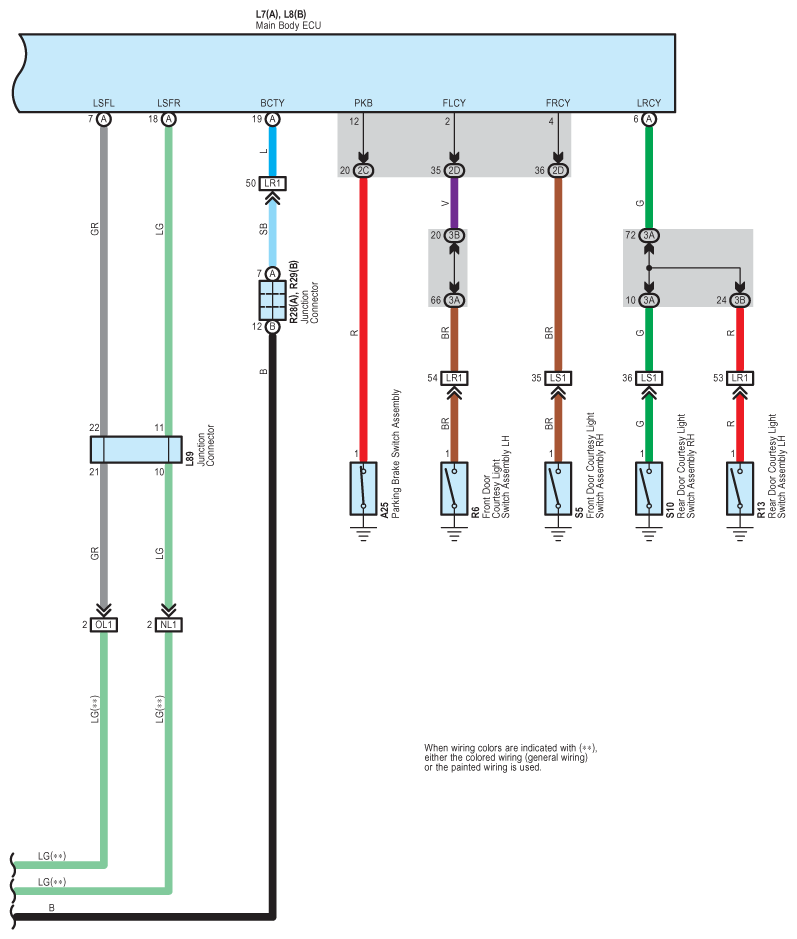

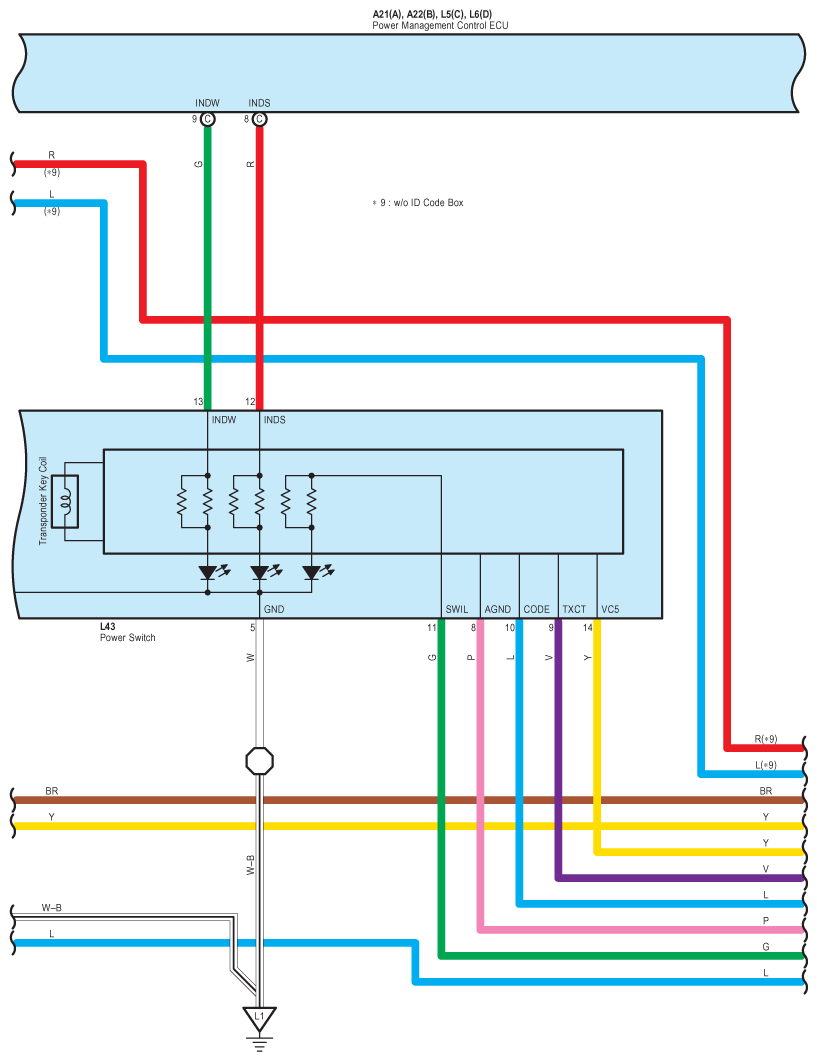

Fig 7: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (7 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

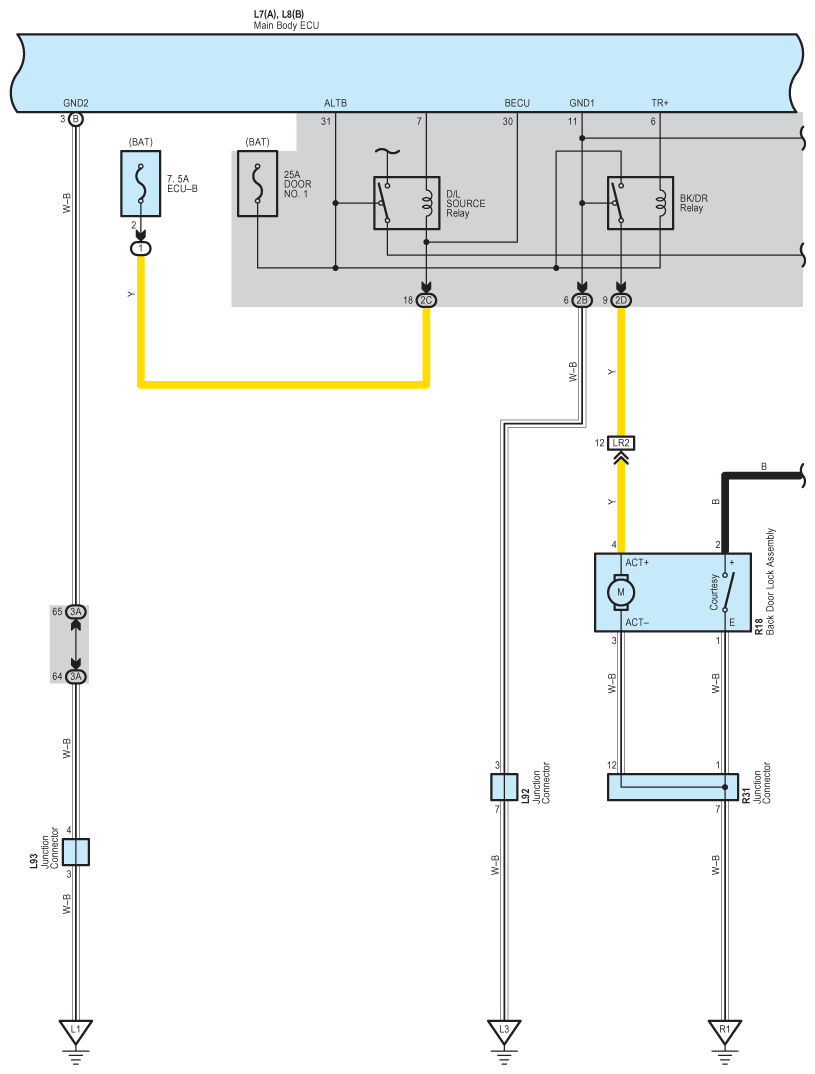

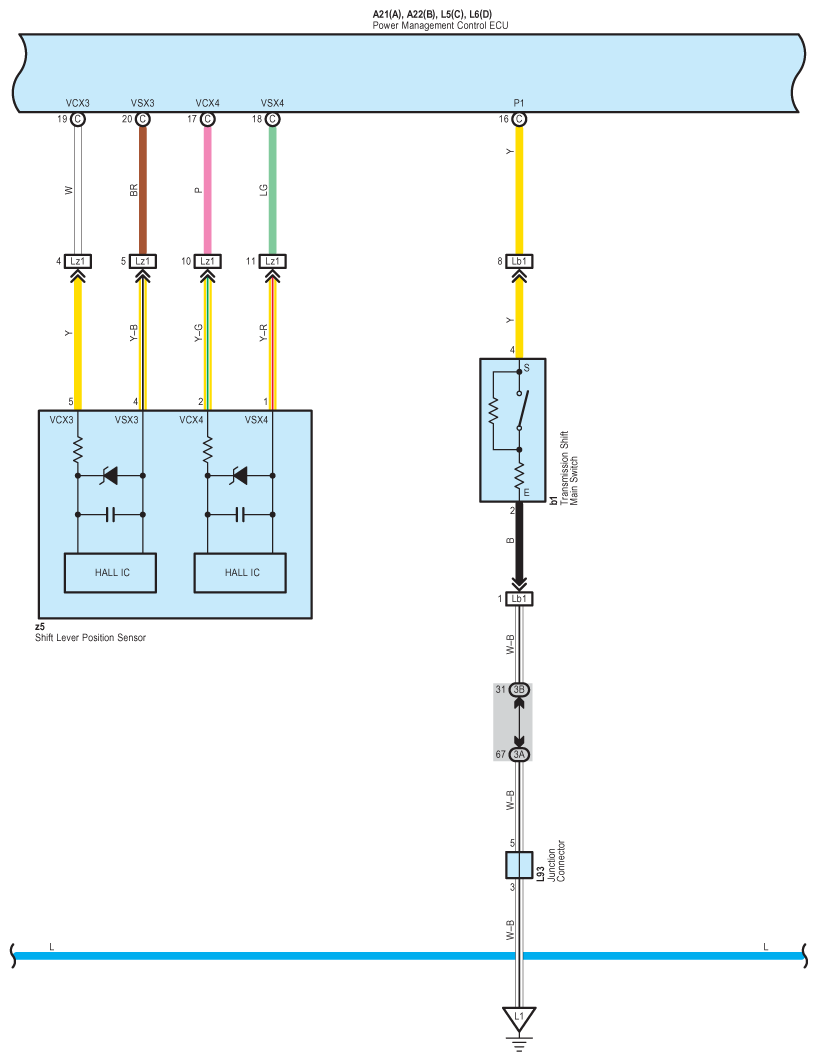

Fig 8: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (8 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

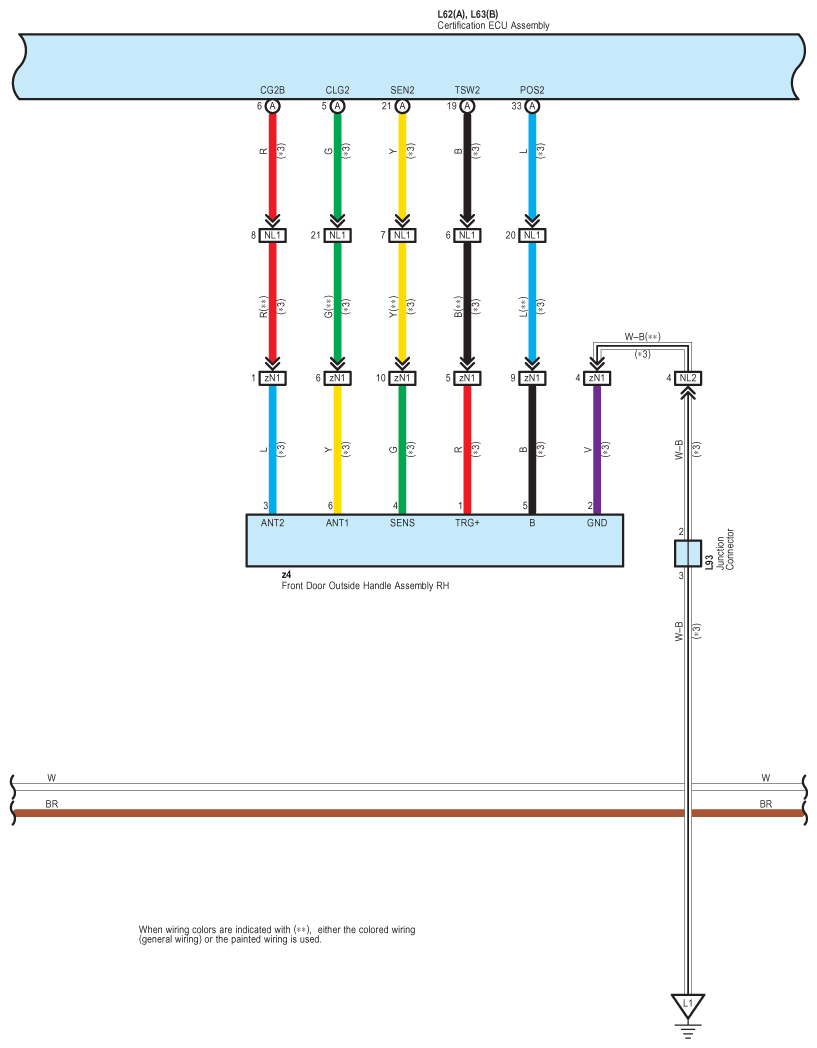

Fig 9: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (9 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

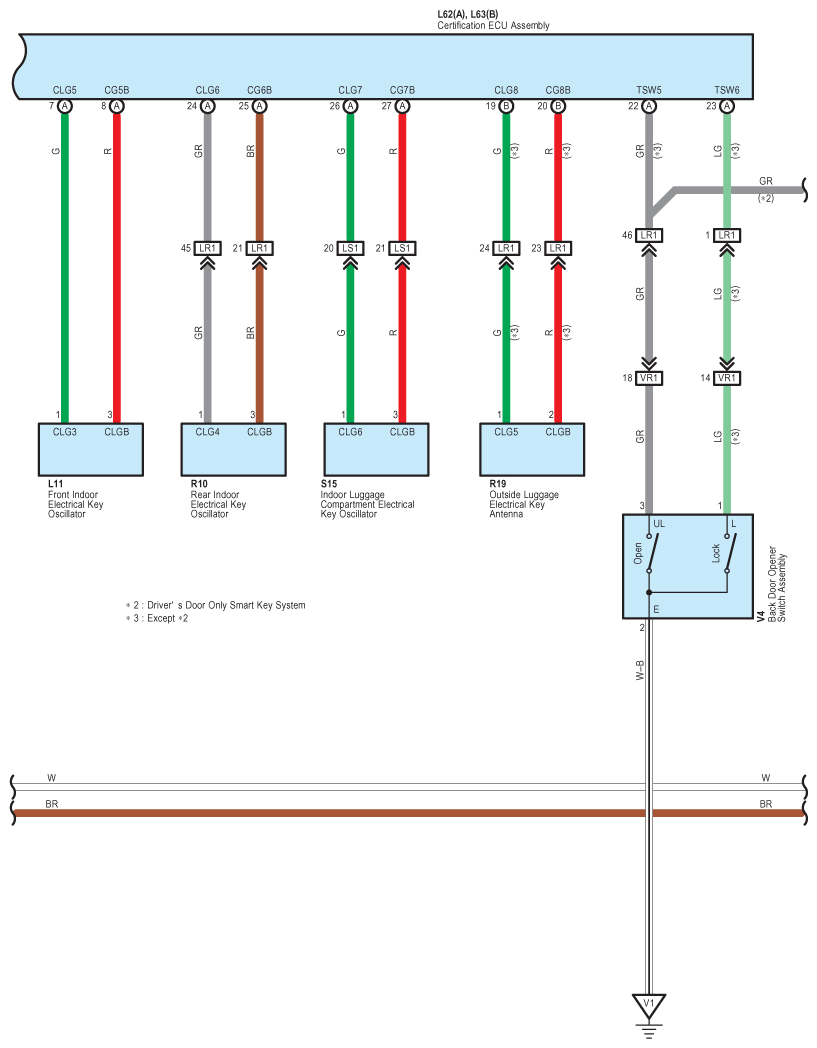

Fig 10: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (10 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

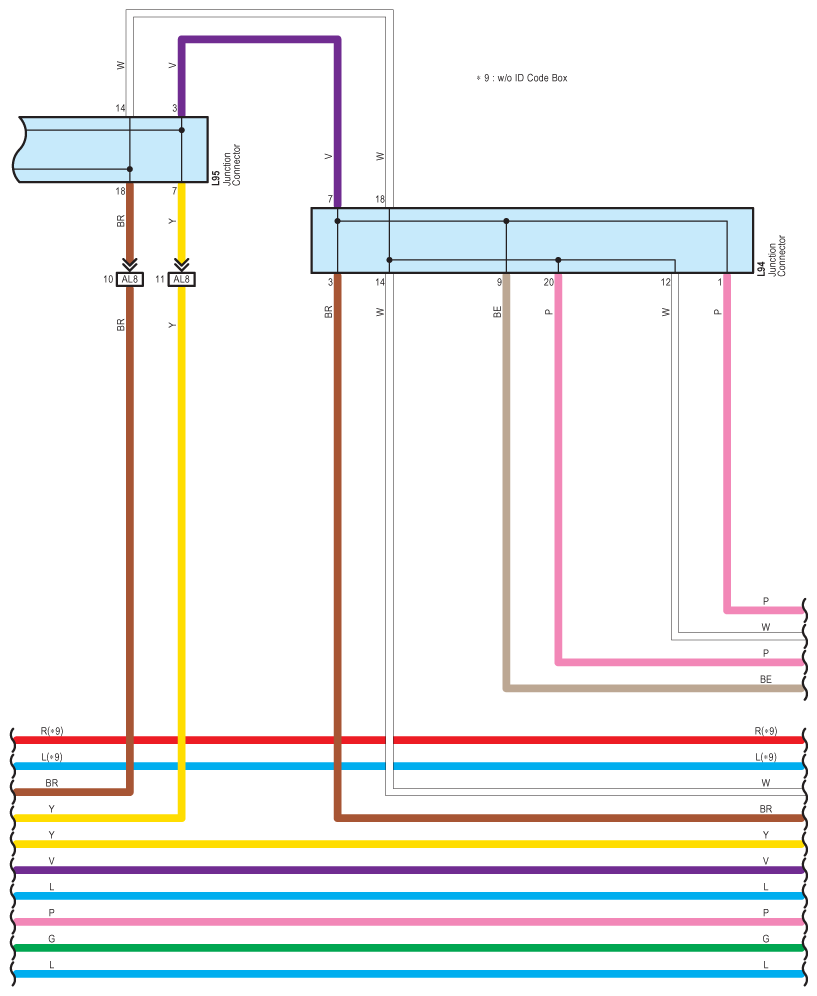

Fig 11: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (11 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

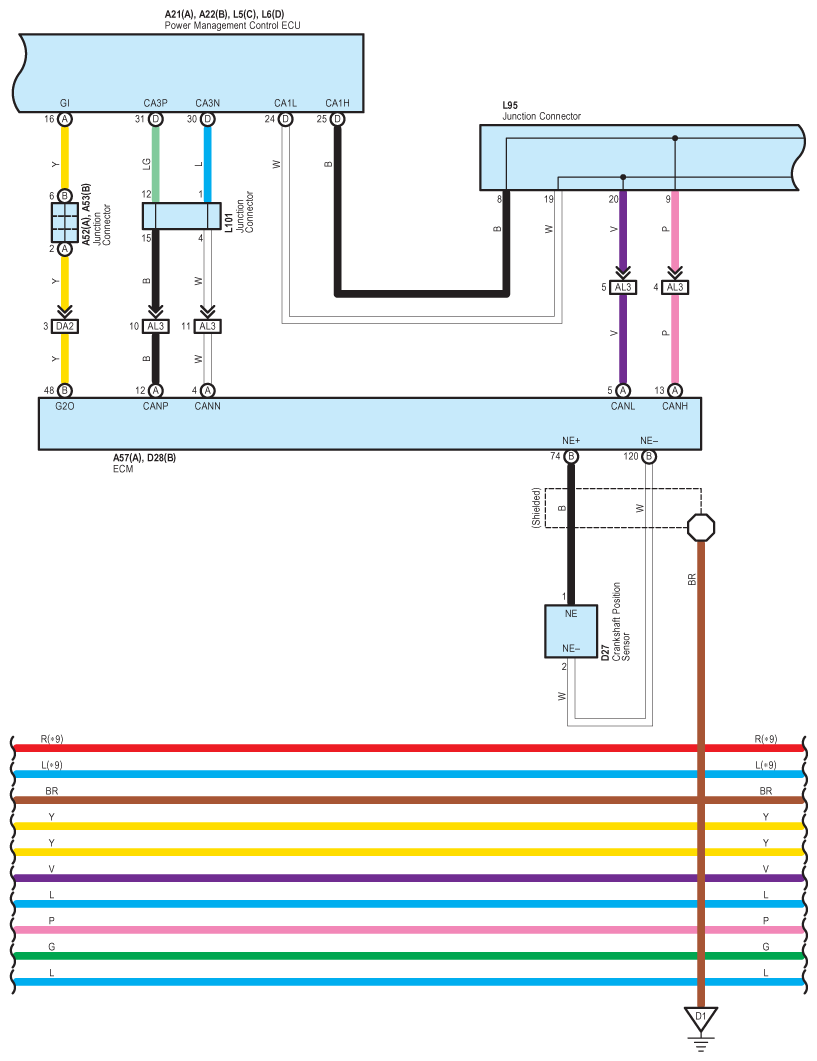

Fig 12: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (12 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

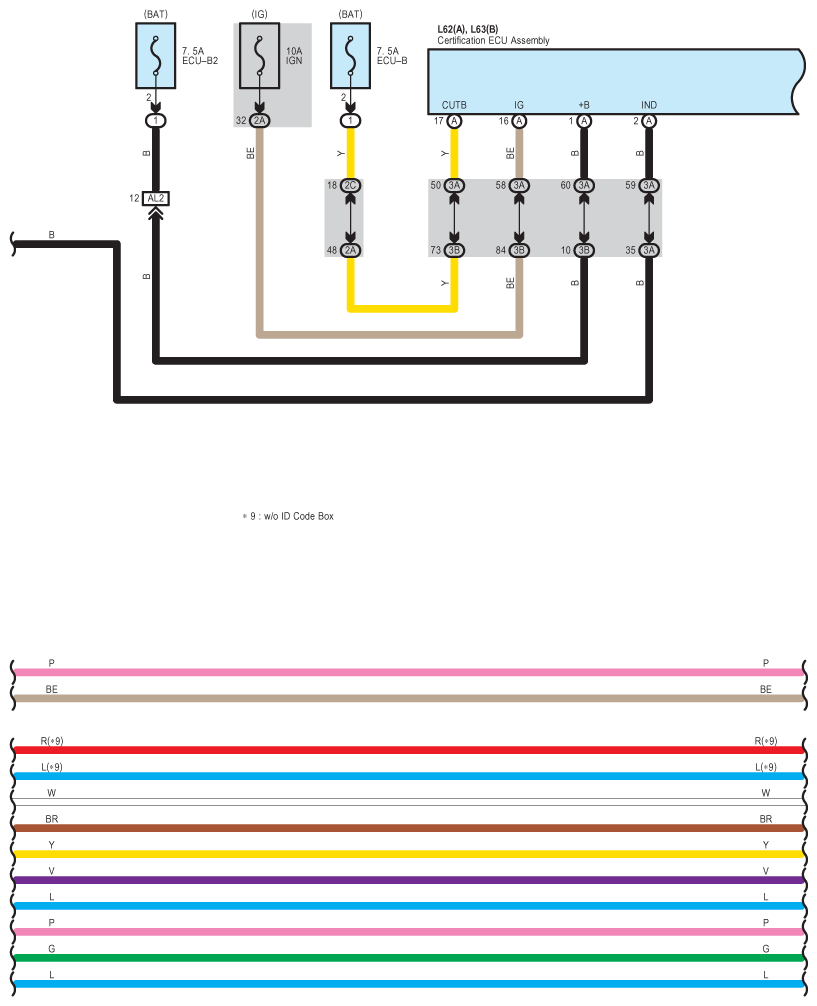

Fig 13: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (13 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (14 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (15 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (16 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (17 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (18 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (19 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (20 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Back Door Opener, Engine Immobilizer, Smart Key, Starting And Wireless Door Lock Control System Wiring Diagram (21 Of 21)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
