Room Light: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 ROOM LIGHT ASSEMBLY
    1. Align the switch parts shown in the illustration and engage the 4 claws to install the room light switch base to the No. 1 room light housing.

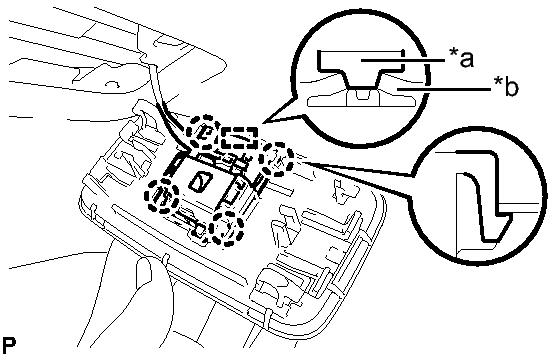

      Fig 1: Installing No. 1 Room Light Assembly
      GTY315341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Switch Part of Room Light Switch Base
      *b Switch Part of No. 1 Room Light Housing
    2. Engage the 4 claws to install the No. 1 room light housing.

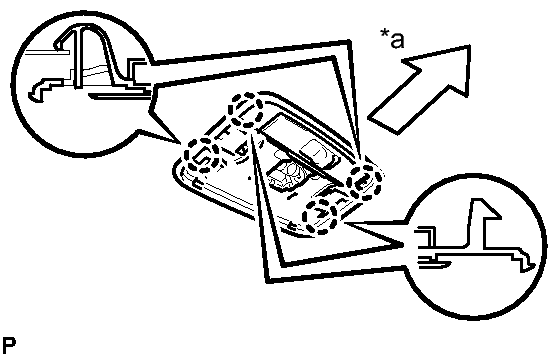

      Fig 2: Installing No. 1 Room Light Housing
      GTY314851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
    3. Engage the 4 claws to install the No. 1 room light lens.

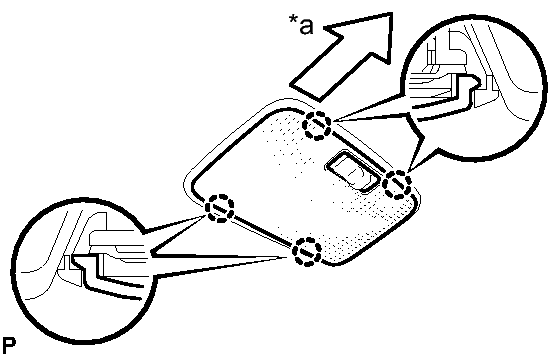

      Fig 3: Installing No. 1 Room Light Lens
      GTY318433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
